|Place of Origin:||Made In Japan|
|Minimum Order Quantity:||Negotiation|
|Packaging Details:||Each set packed in one carton|
|Payment Terms:||T/T, Western Union, MoneyGram|
|Supply Ability:||50sets 6weeks|
|Name:||EJA438E Gauge Pressure Transmitter With Remote||Accuracy:||± 0.04% (0.025% Accuracy Option Available)|
|Measurement Range:||3,600 Psi MWP||Response Time:||90 Ms|
|Primary Variable:||Differential Pressure||Secondary Variable:||Static Pressure|
|Output Signal:||4 To 20 MA DC With Digital Communication||Measurement Span:||0.1 To 5 KPa ,0.07 To 14 MPa (10 To 2000 Psi)|
diff pressure transmitter,
pressure indicator transmitter

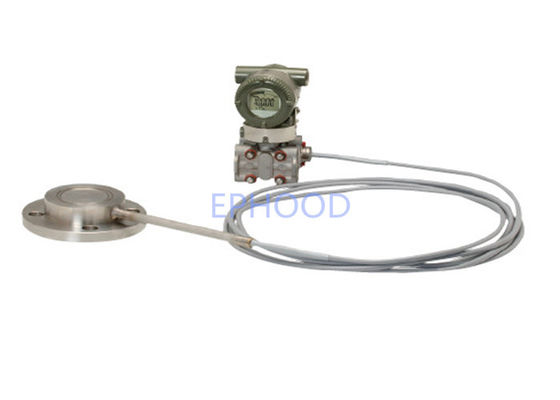

YOKOGAWA EJA438E Gauge Pressure Transmitter with Remote Diaphragm Seal
The EJA-E series of transmitters is Yokogawa's most recent evolution of the DPharp family. Released in 2012, it combines the ruggedness and success of the work-horse EJA-E series with the performance of the thoroughbred EJX-A series to deliver the type of product you have come to expect from Yokogawa.

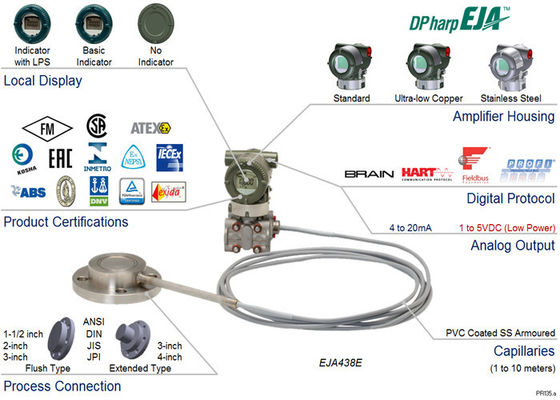

The EJA438E is a gauge pressure transmitter with a remote diaphragm seal in the series.
EJA438E Standard features include:
Yokogawa's DPharp digital sensor offers twice the performance and stability of the competitor's analog sensors. The DPharp uses the latest in IC Chip-style design and manufacturing technology. Analog sensors are based on older design technology. Although analog sensors are good, the modern DPharp sensor out performs them. A Yokogawa transmitter with DPharp digital sensor will give you the consistent, reliable, accurate measurement you need.
|Primary Variable||Gauge Pressure|
|Primary Variable||±0.2% of Span|
|Primary Variable||200 ms|
