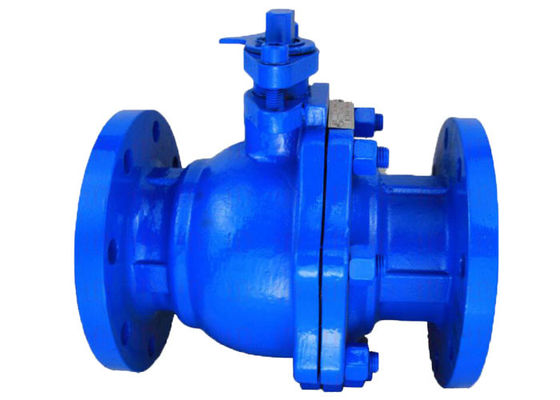

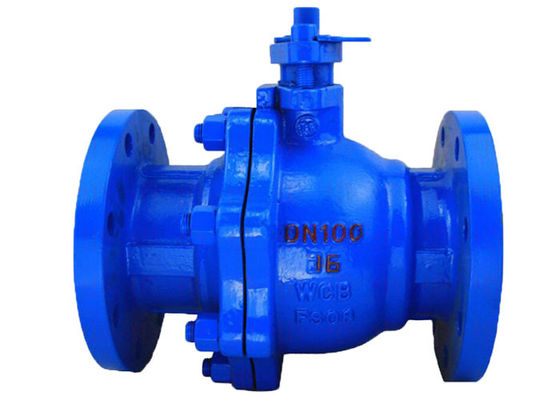

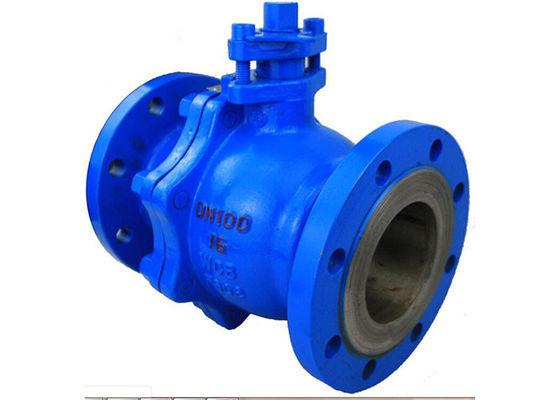

Flanged End Floating Stainless Steel Ball Valve 150LB Pressure TA Series

Flanged End Floating Stainless Steel Ball Valve 150LB Pressure TA Series

    • Flanged End Floating Stainless Steel Ball Valve 150LB Pressure TA Series
    • Flanged End Floating Stainless Steel Ball Valve 150LB Pressure TA Series
    • Flanged End Floating Stainless Steel Ball Valve 150LB Pressure TA Series
  • Flanged End Floating Stainless Steel Ball Valve 150LB Pressure TA Series

    Product Details:

    Place of Origin: China
    Brand Name: SUFA
    Certification: (DNV)ISO9001,(DNV)ISO14001,CE0035
    Model Number: Q41F

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: USD20~500 /PC
    Packaging Details: Wooden box, ply-wood box, carton box, pallet
    Delivery Time: within 8-12 working days upon receipt of payment
    Payment Terms: T/T, Western Union, MoneyGram, L/C, D/P
    Supply Ability: 500PCS per month
    Contact Now
    Detailed Product Description
    Size: 1"-6"x 4" Pressure: 150LB
    Connection Type: Flange Body/Bonnet: WCB,LCC,LCB,CF8,CF8M,CF3M
    Ball/Stem: 316,316L,304 Seat: PTFE/PEEK

    Summary



    SUFA two-piece flanged end ball valve,is available in size 1''-2'' class 150 and 300.The TA Series valve offers versatility,performance and reliability at a reasonable cost.This versatile valve offers various seat options to suit specific service requirments. It utilizes a raised fire-lip design that performs two critical functions.Firstly it acts as a metal backup seat,meeting API 607 through leakage requiremrnts.Secondly,it protects the ID of the primary seat from abrasion and seat cold flow.

    The series TA valve feature comply with API 607,API 6D and Nace MR-01-075 requirements.



    Main parts material
    Part name Material
    Body/Bonnet WCB,LCC,LCB,CF8,CF8M,CF3M
    Ball/Stem 316,316L,304
    Seat PTFE/PEEK



    TA Series Flanged End Floating Ball Valve General Design Features

    1.Adjustable fire-safe stem packing
    2.Machined fire-lip act as meta backup seat has excellent fire-safe capability
    3.Anti-blow out stem
    4.Anti-static device
    5.Full rated bi-directional shut-off
    6.Optional lockable handle
    7.Spiral wound gasket,prevent external leakage
    8.Full rated dead end service

    Flanged End Floating Stainless Steel Ball Valve 150LB Pressure TA Series  Flanged End Floating Stainless Steel Ball Valve 150LB Pressure TA Series



    DRAWING



    Flanged End Floating Stainless Steel Ball Valve 150LB Pressure TA Series






    Standard Material Parts List



    NO. DESCRIPTION MATERIAL NO. DESCRIPTION MATERIAL
    1 BODY WCB/CF8M 17 STUD ASTM A193Gr. B7/Gr.B8
    2 ADAPTER WCB/CF8M 21 GROUND SPRING 316SS
    3 STEM CS+ENP/316SS 22 STEM PACKING PTFE/GRAFOIL
    4 BALL CS+ENP/316SS 23 GROUNDING WASHER GRAPHITE
    5 BODY GASKET 316SS W/GRAPHITE 24 GLAND FOLLOWER 316SS
    7 SEAT PTFE/R-PTFE 25 PACKING RETAINER ASTM A351Gr. CF8M
    10 THRUST BEARING PTFE 26 PACKING GL AND STUD ASTM A193Gr. B7/Gr.B8
    11 STOP PLATE ASSY SS 28 PACKING GL AND NUT ASTM A 194Gr 2H/Gr.8
    16 HEX NUT ASTM A 194Gr.2H/Gr.8 30 STEM WASHER 316SS
          33 HANDLE ASSY CS/SS/DI

    Flanged End Floating Stainless Steel Ball Valve 150LB Pressure TA Series

    Testing Conditions
