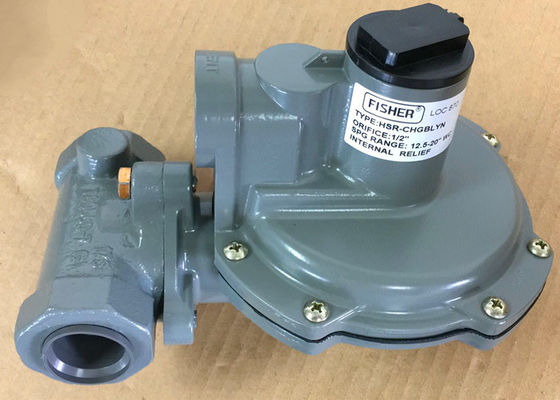

8.6 Bar Fisher HSR Model Gas Regulator Compact Fisher Differential Pressure Regulator

8.6 Bar Fisher HSR Model Gas Regulator Compact Fisher Differential Pressure Regulator

    • 8.6 Bar Fisher HSR Model Gas Regulator Compact Fisher Differential Pressure Regulator
  • 8.6 Bar Fisher HSR Model Gas Regulator Compact Fisher Differential Pressure Regulator

    Product Details:

    Place of Origin: Assembled In China
    Brand Name: Fisher
    Model Number: HSR-CHGBLYN

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiation
    Price: Negotiation
    Packaging Details: 1set packed in one carton ,each carton size is 22*15.5*15.5cm,2.2kg each one.
    Delivery Time: 3-8 work-days
    Payment Terms: T/T, Western Union, MoneyGram
    Supply Ability: 1000sets Every Month
    Contact Now
    Detailed Product Description
    Name: HSR-CHGBLYN Pressure Gas Regulator End Connetion: 1" NPT
    Max Inlet Pressure: 8.6Bar Spring Range: 12.5-20"W.C(31to 50 Mbar)
    Orifice Size: 1/2" Body Material: Cast Iron
    High Light:

    fisher flow control valve

    ,

    fisher differential pressure regulator

    Fisher HSR-CHGBLYN Model Pressure Reducing Regulator Use For Gas Fired Burner



    USA Fisher Brand HSR direct-operated, spring-loaded pressure reducing regulators provide control in residential, commercial, and industrial applications for natural, manufactured, or liquefied petroleum gases.Internal relief across the diaphragm helps minimize overpressure. Any outlet pressure over the start-to-discharge point of the nonadjustable relief valve spring moves the diaphragm off the relief valve seat, allowing excess pressure to vent.Regulators meet ANSI B109.4/CGA 6.18.



    Features
    Angle Bodies
    Globe Bodies
    High Capacity
    Compact Design
    High Capacity Internal Relief
    Meets or Exceeds ANSI B109.4 / CGA 6.18 Requirements
    Fixed Factor / PFM Accuracy



    Body Size and End Connection Styles
    1 x 1-inch, NPT Globe Body

    Allowable Inlet Pressure
    Emergency: 150 psig / 10,3 bar
    Maximum Operating Pressure: 125 psig / 8,6 bar

    Allowable Outlet Pressure
    Emergency (Casing): 25 psig / 1,7 bar
    Maximum Operating Pressure to Avoid Internal Parts Damage: 3 psi / 0,21 bar differential above outlet pressure setting

    Outlet Pressure
    1.25 to 2.2psi/0.09 to 0.15bar



    Outlet Pressure Ranges Of fisher HSR pressure regulator

    4 to 6-inches w.c. (10 to 15 mbar)

    6 to 8-inches w.c. (15 to 20 mbar)

    8 to 10-inches w.c. (20 to 25 mbar

    10 to 12.5-inches w.c. (25 to 31mbar)

    12.5 to 20-inches w.c. (31to 50 mbar)

    20 to 35-inches w.c. (50 to 87 mbar)

    1.25 to 2.2 psig (0.09 to 0.15 bar)

    Pressure Registration
    Internal

    Temperature Capabilities
    -20 to 160°F / -29 to 71°C



    8.6 Bar Fisher HSR Model Gas Regulator Compact Fisher Differential Pressure Regulator 0







                                                    Table 1. Maximum Operating Inlet Pressure

    ORIFICE SIZE WIDE-OPEN Cg MAXIMUM OPERATING INLET PRESSURE TO OBTAIN
    GOOD REGULATING PERFORMANCE
    Inch mm FOR RELIEF SIZING psig bar
    1/8 3.2 12.5 125 8.6
    3/16 4.8 28.2 100 6.9
    1/4 6.4 50 60 4.1
    3/8 9.5 105 30 2.1
    1/2 13 185 20 1.4



                                             Table 2. Outlet Pressure Ranges

    OUTLET PRESSURE RANGE SPRING SPRING WIRE DIAMETER SPRING FREE LENGTH
    COLOR Inch mm Inch mm
    4 to 6" w.c. / 10 to 15 mbar Orange 0.062 1.57 3.40 86.4
    6 to 8" w.c. / 15 to 20 mbar Yellow 0.067 1.70 3.61 91.4
    8 to 10" w.c. / 20 to 25 mbar Black 0.067 1.70 3.71 94.0
    10 to 12.5" w.c. / 25 to 31 mbar Silver 0.072 1.83 4.10 104
    12.5 to 20" w.c. / 31 to 50 mbar Gray 0.080 2.03 3.60 91.4
    20 to 35" w.c. / 50 to 87 mbar Pink 0.093 2.36 3.52 88.9
    1.25 to 2.2 psig / 0.09 to 0.15 bar Light Blue 0.105 2.67 3.66 94.0



    Table 3. Relief Performance


















    ORIFICE SIZE MAXIMUM ALLOWABLE INLET PRESSURE IF OUTLET PRESSURE
    IS HELD AT OR BELOW 2 psig / 140 mbar
    Inch mm psig bar
    1/8 3.2 125 8.6
    3/16 4.8 65 4.5
    1/4 6.4 30 2.1
    3/8 9.5 10 0.69
    1/2 13 7 0.48
    1. The relief performance testing is in accordance with ANSI B109.4 and CGA 6.18, with the regulator set at 7-inches w.c. / 17 mbar, stem linkage disconnected, and vented directly to atmosphere using the 3/4 or 1-inch / 19 or 25 mm vent.
