| Place of Origin: | Made In China |
| Brand Name: | Tend |
| Model Number: | TZ-8108 |
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Tend TZ8108 limit switch,10pcs packed in one carton ,10Pcs is about 1.8kg. |
| Delivery Time: | 5-7 Work-days |
| Payment Terms: | T/T, Western Union, MoneyGram,Payonner |
| Supply Ability: | 1000PCS in 30Days |
| Name: | Tend Brand Limit Switch Model TZ8108 | Protection Level: | IP65 |
|---|---|---|---|
| Operating Temperature: | -5~+65C | Max. Current: | 5A |
| Max. Voltage: | 250VAC | Operating Speed: | 5mm To 50cm/s |
| Operating Frequency: | 120 Operations/min. | Contact Resistance: | 25mW Max (initial) |
| High Light: | tend brand limit switch,tend pulley limit switch |
||

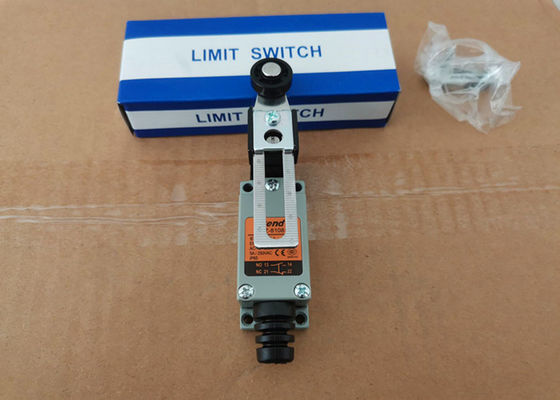

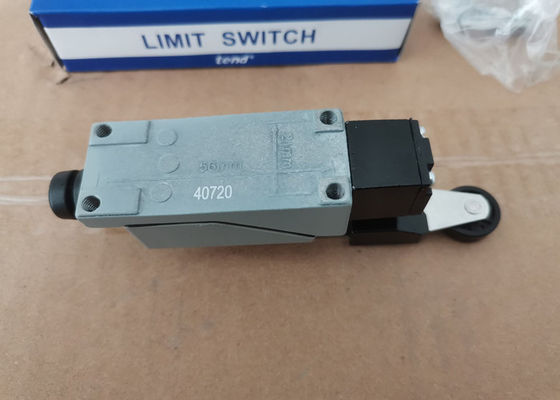

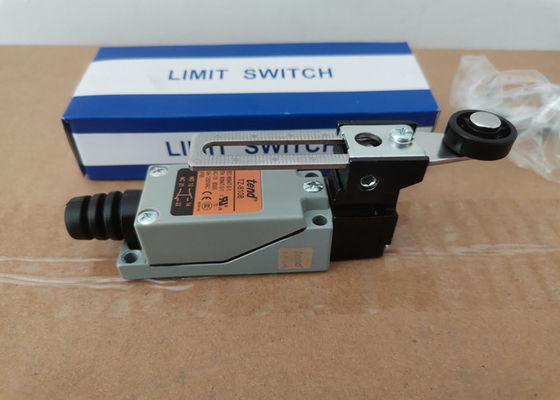

Tend Limit Switch Pulley Type TZ-8108 Position Switch TZ-8108
Tend Travel Switch Position Switch Limit Switch TZ-8108
Features
. Built-in basic switch with double spring mechanism
. Long life(10,000,000 mechanical operations)
. Highly rigid construction (Head and cover snugly fit in box)
. Dust-proof and drip-proof construction
. Smooth operation with greater OT
. Easy-to-wire conduit opening design
| Rated Voltage(V) | Non-inductive load (A) | Inductive load (A) | ||||||
| Resistive Load | Lamp Load | Inductive Load | Motor Load | |||||
| NC | NO | NC | NO | NC | NO | NC | NO | |
| 125VAC | 5 | 5 | 1.5 | 0.7 | 3 | 3 | 2 | 1 |
| 250VAC | 5 | 5 | 1 | 0.5 | 3 | 3 | 1.5 | 0.8 |
| 8VDC | 5 | 5 | 3 | 3 | 5 | 4 | 3 | 3 |
| 14VDC | 5 | 5 | 3 | 3 | 4 | 4 | 3 | 3 |
| 30VDC | 5 | 5 | 3 | 3 | 4 | 4 | 3 | 3 |
| 125VDC | 0.4 | 0.4 | ||||||
| 250VDC | 0.2 | 0.2 | ||||||
| Inrush Current | N.C:24A max. N.O:12A max. | |||||||
Note:1. Inductive load: power factor = 0.4 (AC),time constant = 7 msec (DC)
2. Lamp load has an inrush current of 10 times the steady-state current while motor load has an inrush current of 6 times the steady-state current.
Note: When you place order, please kindly designate clockwise the movement way and type of contact fitted.
Dimension Drawing:
Model TZ-8108:
We are specialized in Limit Switch,Tower Light, Warning Light, Terminal Blocks, Control Components and many other electronic automation products.
We can provide you with the high quality products you need. If you are interested in our products, please contact us.
Contact Person: Barry
Tel: +8613913187965
