EJA530E In Line Mount Differential Pressure Transmitter 90 Ms Response Time

China EJA530E In Line Mount Differential Pressure Transmitter 90 Ms Response Time supplier

Large Image :  EJA530E In Line Mount Differential Pressure Transmitter 90 Ms Response Time

Product Details:

Place of Origin: Made In Japan
Brand Name: YOKOGAWA
Model Number: EJA530E

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Each set packed in one carton
Delivery Time: 6-8weeks
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 50sets 6weeks
Contact Now
Detailed Product Description
Name: EJA530E In-Line Mount Gauge Pressure Transmitter Accuracy: ± 0.055% Accuracy
Measurement Range: 3,600 Psi MWP Response Time: 90 Ms
Primary Variable: Differential Pressure Secondary Variable: Static Pressure
Output Signal: 4 To 20 MA DC With Digital Communication Measurement Span: 0.1 To 5 KPa ,0.07 To 14 MPa (10 To 2000 Psi)
High Light:

diff pressure transmitter

,

pressure differential indicating transmitter

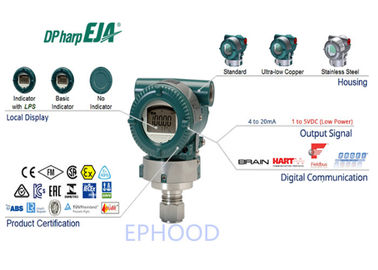

YOKOGAWA EJA530E In-Line Mount Gauge Pressure Transmitter



The EJX-A series is Yokogawa's premium performance line of DPharp transmitters. Released in 2004, it offers the performance and stability needed in demanding applications. The EJX-A series performance makes it the thoroughbred of the DPharp family of pressure transmitters.

The EJX530A is an In-Line Gauge Pressure Transmitter in the series.

EJX530A standard features include:

  •  ± 0.04% Accuracy
  •  ± 0.1% per 15 years Stability
  •  90 ms Response Time
  •  Exida and TUV SIL 2/3 Certified
  •  Local Parameter Setting (LPS)



Yokogawa's DPharp digital sensor offers twice the performance and stability of the competitor's analog sensors. The DPharp uses the latest in IC Chip-style design and manufacturing technology. Analog sensors are based on older design technology. Although analog sensors are good, the modern DPharp sensor out performs them. A Yokogawa transmitter with DPharp digital sensor will give you the consistent, reliable, accurate measurement you need.





Specification Overview



Measurement Types
Primary Variable Gauge Pressure
Reference Accuracy
Primary Variable ±0.055% of Span
±0.04% of Span (/HAC option)
Stability (All Normal Operating Conditions)
Primary Variable ±0.1% of URL per 10 years
Response Time
Primary Variable 90 msec
Rangeability
Primary Variable A, B and C Capsules: 20:1
D Capsule: 10:1
Burst Pressure (Absolute)
EJA510E A, B, and C Capsules: 4,350 psi (30 MPa)
D Capsule: 19,100 psi (132 MPa)
Specification Conformance
EJX-A Series ±3σ
