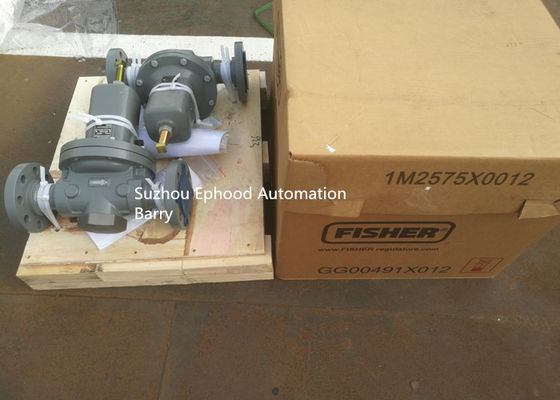

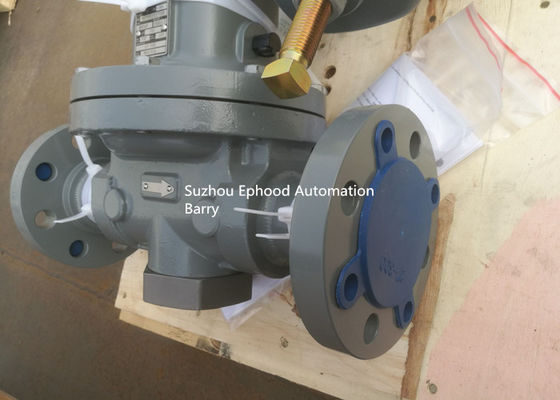

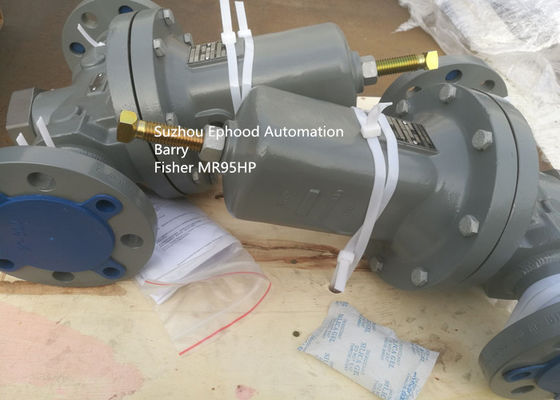

Fisher Gas Valve 95 Model MR95HP Model Gas Regulator Flange End Regulator For Fired Heaters And Boilers

Fisher Gas Valve 95 Model MR95HP Model Gas Regulator Flange End Regulator For Fired Heaters And Boilers

    • Fisher Gas Valve 95 Model MR95HP Model Gas Regulator Flange End Regulator For Fired Heaters And Boilers
    • Fisher Gas Valve 95 Model MR95HP Model Gas Regulator Flange End Regulator For Fired Heaters And Boilers
    • Fisher Gas Valve 95 Model MR95HP Model Gas Regulator Flange End Regulator For Fired Heaters And Boilers
    • Fisher Gas Valve 95 Model MR95HP Model Gas Regulator Flange End Regulator For Fired Heaters And Boilers
  • Fisher Gas Valve 95 Model MR95HP Model Gas Regulator Flange End Regulator For Fired Heaters And Boilers

    Product Details:

    Place of Origin: Made In Mexico
    Brand Name: Fisher
    Model Number: MR95HP

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiation
    Price: USD3500-4200 Each one Set
    Packaging Details: 2sets packed in one wooden case.
    Delivery Time: 12weeks
    Payment Terms: T/T, Western Union, MoneyGram
    Supply Ability: 100sets Every Month
    Contact Now
    Detailed Product Description
    Name: Fisher Gas Regulator 95 Series Pressure Regulator End Connetion: 2" CL600RF
    Max Inlet Pressure: 1000 Psig / 69 Bar Spring Range: 15 To 100PSI
    Body Material: WCC Steel Usage: Boilers, Burner Management Systems, Fire & Gas Systems



     MR95 Series Pressure Fisher Gas Regulator For Fired Heaters And Boilers

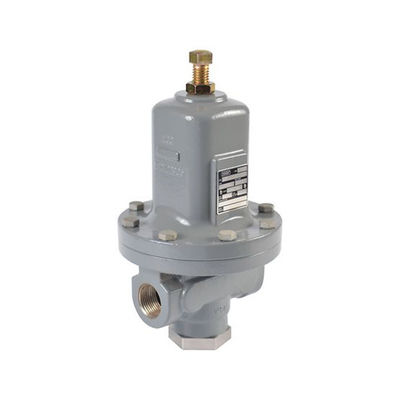

    Fisher MR95 Series Pressure Regulator

    Fuel Gas Pressure Control Solutions for Fired Heaters and Boilers



    MR95 Series regulators are compact, large-capacity, direct-operated pressure regulators. Typical applications include superheated steam, steam injection, steam tracing, nitrogen purging, boiler feed water, process chemicals, cooling water, test fixtures, wash tanks, sterilizers/autoclaves, fuel lines, pneumatic supply, and many others.



    This product can help solve the toughest pressure control applications. Typical applications include superheated steam, steam injection, steam tracing,nitrogen purging, boiler feed water, process chemicals, cooling water, test fixtures, wash tanks, sterilizers/autoclaves, fuel lines, pneumatic supply, and many others.



    Available Constructions

    Type MR95L: Pressure reducing regulator for outlet pressures from 2 to 30 psig / 0.14 to 2.1 bar.1/4 in. to 1 in. body sizes only.

    Type MR95H: Pressure reducing regulator for outlet pressures from 5 to 150 psig / 0.34 to 10.3 bar.

    Type MR95HP: Pressure reducing regulator for outlet pressures from 15 to 400 psig / 1.0 to 27.6 bar (soft-seated).

    Type MR95HT: High temperature pressure reducing regulator for outlet pressures from 15 to 300 psig / 1.0 to 20.7 bar (metal seat) and up to 650°F / 343°C.

    Type MR95LD: Pressure reducing differential regulator for differential set pressures from 2 to 30 psi / 0.14 to 2.1 bar with maximum inlet pressure up to 300 psi / 20.7 bar and maximum outlet pressure up to 125 psi / 8.6 bar. 1/4 in. to 1 in. body sizes only.

    Type MR95HD: Pressure reducing differential regulator for differential set pressures from 5 to 150 psi / 0.34 to 10.3 bar with maximum inlet/outlet pressures up to 300 psig / 20.7 bar.

    Type MR95HDP: Pressure reducing differential regulator for differential set pressures from 5 to 150 psi / 0.34 to 10.3 bar with maximum inlet/

    outlet pressures up to 600 psi / 41.4 bar.

    Body and Orifice Sizes

    1/4 NPT body:

    0.284 in. / 7.22 mm orifice

    1/2 in. / DN 15 body:

    0.416 in. / 10.56 mm orifice

    3/4 and 1 in. / DN 20 and 25 bodies:

    0.631 in. / 16.02 mm orifice

    1-1/2 and 2 in. / DN 40 and 50 bodies

    (not available for Types MR95L and MR95LD):

    1.142 in. / 29 mm orifice

    Features

    Handwheels/Tee Handles—Allow easypressure setting changes and are standard on Types MR95LD, MR95HD and MR95HDP and optional on the Types MR95L, MR95H, MR95HP and MR95HT regulators.

    • Versatile—Can be used with all process media including air, steam, gas, water, liquids (oils and process chemicals) and oxygen.

    • Tight Shutoff With Elastomer Seats—Metal seats available for high temperatures.

    • Direct-Operated—Design maximizes speed of response.

    • Robust—Up to 1000 psig / 68.9 bar inlet pressure.





    Available Low Pressure Configurations MR95L: 2 to 30 psig / 0.14 to 2.1 bar outlet pressures
    Available High Pressure Configurations MR95H: 5 to 150 psig / 0.35 to 10.3 bar outlet
    MR95HP: 15 to 400 psig / 1.0 to 27.6 bar outlet
    MR95HT: 15 to 300 psig / 1.0 to 20.7 bar outlet and up to 650°F / 343°C
    Available Pressure Differential Configurations MR95LD: 2 to 30 psi / 0.14 to 2.1 bar differential
    MR95HD: 5 to 150 psi / 0.35 to 10.3 bar
    MR95HDP: 5 to 150 psi / 0.35 to 10.3 bar with max inlet of 600 psig / 41.4 bar
    Body and Spring Case Materials Gray Cast Iron
    WCC Steel
    LCC Steel
    Stainless Steel
    Special Alloys: Monel®, Hastelloy® C, Aluminum-Bronze
    Contact Sales Office for Special Alloys
    Body Size 1/4-inch
    1/2-inch / DN 15
    3/4 and 1-inch / DN 20 and 25
    1-1/2 and 2-inch / DN 40 and 50 (not available for Types MR95L and MR95LD)
    End Connection Styles NPT,Flange
    Maximum Inlet Pressure 1000 psig / 69 bar
    Maximum Outlet Pressure 450 psig / 31 bar
    Pressure Registration Internal or External



    Fisher Gas Valve 95 Model MR95HP Model Gas Regulator Flange End Regulator For Fired Heaters And Boilers

    Fisher Gas Valve 95 Model MR95HP Model Gas Regulator Flange End Regulator For Fired Heaters And Boilers
