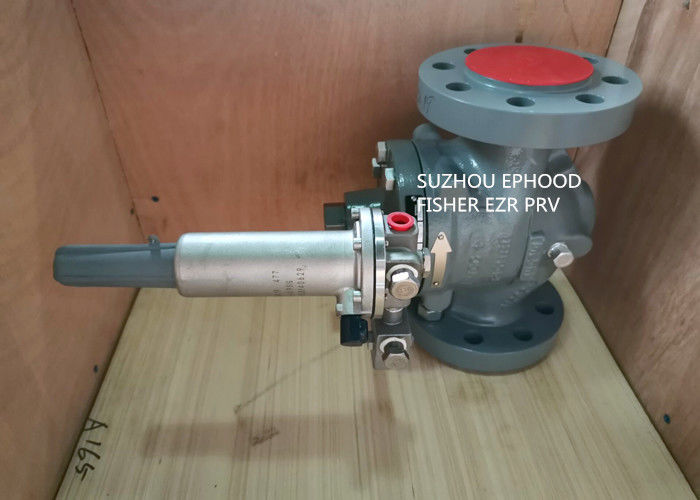

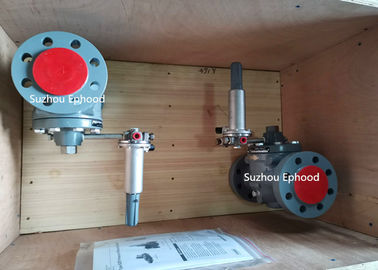

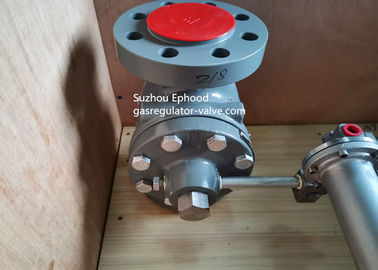

FIsher EZR High Flow Rate Fisher Gas Regulator / Pressure Reducing Regulator With 161EB Pilot

Hi Barry, Already received item I order, supplier very good corporation Yes ,the HSR work very well...looks very good. Many thanks Barry. Best regards MOHD MOHAIMIN

—— DAIKI ALUMINIUM INDUSTRY (MALAYSIA)

Hi Barry, Have received with thanks. Good service,good product,good packing,nice job. We will be in touch shortly. Best Regards, Wayne Strahan

—— HYDCO

I'm Online Chat Now

FIsher EZR High Flow Rate Fisher Gas Regulator / Pressure Reducing Regulator With 161EB Pilot

China FIsher EZR High Flow Rate Fisher Gas Regulator / Pressure Reducing Regulator With 161EB Pilot supplier
FIsher EZR High Flow Rate Fisher Gas Regulator / Pressure Reducing Regulator With 161EB Pilot supplier FIsher EZR High Flow Rate Fisher Gas Regulator / Pressure Reducing Regulator With 161EB Pilot supplier FIsher EZR High Flow Rate Fisher Gas Regulator / Pressure Reducing Regulator With 161EB Pilot supplier

Large Image :  FIsher EZR High Flow Rate Fisher Gas Regulator / Pressure Reducing Regulator With 161EB Pilot

Product Details:

Place of Origin: Made In China
Brand Name: Fisher
Model Number: EZR

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: 1set packed in one carton,5.5kg each one.
Delivery Time: 10 work-days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100sets Every Month
Contact Now
Detailed Product Description
Name: Fisher EZR Pressure Reducing Regulator End Connetion: 2" CL600RF
Max Inlet Pressure: 103bar Outlet Pressure Range: 10-40psi
Application: Boilers,Burner Management Systems,Combustion Turbine Compression,Custody Transfer,Dryers,Facilities & Process Utilities,Fire & Gas Systems,Fired Heaters,Fluid Control,Fuel Management Systems,Plant Air,Pressure Control,Storage & Distribution,Storage & Trans Type: Gas Regulator
High Light:

fisher differential pressure regulator

,

fisher flow control valve

Emerson Fisher EZR Series Pressure Reducing Regulator



Type EZR pilot-operated, pressure reducing regulator designed to give accurate, smooth, quiet operation, tight shutoff, and long life, even in dirty service. EZR Series can be installed in various applications such as natural gas transmission/distribution systems, industrial and commercial facilities. The Type EZROSX is available with a slam-shut device which provides overpressure protection and/or under pressure protection by completely shutting off the flow of gas to the downstream system.



Features

* Tight Shutoff—The metal plug is designed to deflect particles and debris away from the diaphragm, providing superior shutoff and increasing the time between maintenance intervals.

Debris Protection—The revolutionary flow path of the EZR Series cage minimizes the damage from debris while the stainless steel inlet strainer prevents large particles from damaging the diaphragm.
*  Long Life—The field proven dipahragm design incorporates layered fabric, a raised bead edge and molded shape to increase strength, durability, and service life

*  High Capacity—The flow path of the EZR Series produces best-in-class capacity combined with the quietest operation. Fisher™ products are laboratory tested so 100% of the published flow capacity can be used with confidence.

Travel Indicator—Simplifies in-service inspection and system troubleshooting

*   High Accuracy—Multiple outlet pressure ranges and narrow proportional bands offered by the 161EB Series, 161AY Series and Type PRX/120 pilots provide the EZR Series with tight, accurate control.

*   Integrated Slamshut—Type EZR-OSX slam-shut interrupts gas service during an overpressure or underpressure condition.


Specifications

Available Configurations
See Table 1
Body Sizes, Material, End Connection and Pressure Rating
See Table 2
Maximum Inlet Pressures:Emergency: 175 psig / 12.1 bar,Operating: See Table 3
Maximum Outlet Pressure:
Emergency (Casing): 15 psig / 1.0 bar;To avoid internal parts damage: 3 psig / 0.21 bar,differential above outlet pressure setting
Outlet Pressure Ranges
Regulator: 3.5 in. w.c. to 10 psig /9 mbar to 0.69 bar See Table 4
Internal Relief Performance
Temperature Capabilities:-20 to 150°F / -29 to 66°C

Spring Case Vent Connection

Internal Relief: 1 NPT

High Capacity Relief: 2-1/2 NPT

External Registration Connection:3/4 NPT



Main Valve Body Sizes,End Connection Styles,Max Bearing Pressure

MAIN VALVE BODY SIZES MATERIAL END CONNECTION STYLES PRESSURE
NPT DN
1"*1", 2"*1", 2"*2" 25*25, 50*25, 50*50 WCC Steel CL150RF 20BAR
CL300RF 52BAR
CL600RF 103BAR



Outlet (Control) Pressure Ranges and Typical Proportional Bands

Type Outlet Presure Range Proportional Band
Psi Bar Psi Bar
161AY or
161AYM
6 to 15-inches w.c.
0.5 to 1.2
1.2 to 2.5
2.5 to 4.5
4.5 to 7
15 to 37 mbar
0.03 to 0.08
0.08 to 0.17
0.17 to 0.31
0.31 to 0.48
1-inch w.c.
1-inch w.c.
0.5
0.5
0.5
3 mbar(2)
3 mbar(2)
0.03(2)
0.03(2)
0.03(2)
161EB or
161EBM
5 to 15
10 to 40
30 to 75
70 to 140
130 to 200
200 to 350
0.35 to 1.0
0.69 to 2.8
2.1 to 5.2
4.8 to 10
9 to 14
14 to 24
0.5
0.5
0.6
1.3
1.5
3
0.03(2)
0.03(2)
0.04(2)
0.09(2)
0.10(2)
0.21(2)
161EB 30 to 300 2.1 to 20.7 6 0.41
