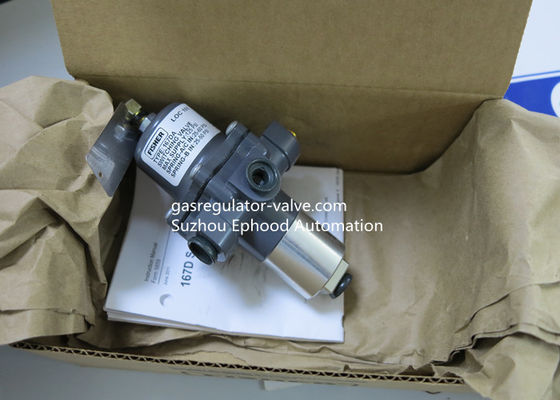

Fisher 167DA Series Switching Valve Three-way Pressure Reducing Regulator Valve

Fisher 167DA Series Switching Valve Three-way Pressure Reducing Regulator Valve

    • Fisher 167DA Series Switching Valve Three-way Pressure Reducing Regulator Valve
  • Fisher 167DA Series Switching Valve Three-way Pressure Reducing Regulator Valve

    Product Details:

    Place of Origin: Made In Mexico
    Brand Name: Fisher
    Model Number: 167DA

    Payment & Shipping Terms:

    Minimum Order Quantity: 6sets
    Price: USD 320-350 Each One Piece
    Packaging Details: 1PCS packed in one carton ,1kg each one.
    Delivery Time: 3-10 work-days
    Payment Terms: T/T, Western Union, MoneyGram
    Supply Ability: 100PCS Every Month
    Contact Now
    Detailed Product Description
    Name: Fisher 167DA Series Switching Valve End Connetion: 1/4" NPT Or 1/2" NPT
    Inlet Pressure: 125psi Port A/C As Inlet: 25-60psi
    Port B As Inlet: 25-50psi Application: Deliver Constant Reduced Pressure Of Gaseous Fluids To Pilot Operated Controllers And Other Pneumatic Instrumentation

    Fisher 167DA Series Switching Valve Three-way Pressure Reducing Regulator Valve

    Fisher 167DA Series Switching Valve is a three-way valve typically used to deliver constant reduced pressure of gaseous fluids to pilot operated controllers and other pneumatic instrumentation.

    The Types 167D and 167DS are two-way switching valves.

    The Types 167DA and 167DAS are three-way switching valves.
    Features:

    Compact—The Types 167D and 167DA switching valves are engineered for outstanding performance in a compact, light weight package.

    Easy, Accurate Adjustment—With a choice of springs for optimum resolution, the switching point is set to a specifi c requirement by an adjusting screw atop the spring case.

    Sour Gas Service Capability—NACE MR0175 and MR0103 compliant construction available.

    Optional Stainless Steel Construction— The Types 167DS and 167DAS provide high resistance to corrosion especially benefi cial for offshore applications.

    Ease of Maintenance—No special tools are required to perform maintenance, and all maintenance can be performed with the valve in the line.

    Rugged Construction—The Types 167D and 167DA switching valves are engineered for longer service life with minimal maintenance requirements.

    Corrosion Resistant Fasteners—Bolting and adjusting screw are double zinc-chromated for enhanced corrosion resistance. Optional stainless steel bolting and adjusting screw are also available.



    Specifications



    Available Configurations

    Types 167D and 167DS: Two-way switching valves

    Types 167DA and 167DAS: Three-way switching valves

    Body Size, Inlet, and Outlet Connection Style

    Ports A and C: 1/4” or 1/2” NPT

    Vent and Control Pressure Connections (Port D) and Port B: 1/4 NPT

    Construction Materials

    See Table 4

    Maximum Operating Inlet Pressure(1)

    Types 167D and 167DS: 400 psig / 27,6 bar

    Types 167DA and 167DAS: 125 psig / 8,6 bar

    Types 167DA and 167DAS (NACE): 100 psig / 6,9 bar

    Set Pressure Ranges

    See Tables 1 and 2

    Maximum Diaphragm Pressure(1)

    150 psi / 10,3 bar over outlet pressure setting up to a maximum of 250 psi / 17,2 bar

    Flow and Sizing Coeffi cients

    See Table 3

    Spring Case Vent Location

    Aligned with inlet standard, other positions optional

    Temperature Capabilities(1)

    Nitrile (NBR)

    Standard Service (Types 167D and 167DA only): -20° to 180°F / -29° to 82°C

    Low Temperature Service (Types 167D and 167DA only) and Standard Service (Types 167DS and 167DAS only): -40° to 180°F / -40 ° to 82°C

    Fluorocarbon (FKM)

    High Temperature Service: 0° to 300°F / -18° to 149°C



    Installation

    The switching valve can be mounted in any position, providing the vent in the spring case is free from obstruction. Connect the pneumatic control line to the port marked “D” on the valve body. Ports A and C (and B on the Types 167DA and 167DAS valve) are connected for the desired switching valve response to loss or decrease in pneumatic pressure. Figure 5 shows typical application of the Types 167DA and 167DAS switching valve. If the control valve inlet pressure falls below a predetermined setting, the on-off controller turns off control pressure to the switching valve. This causes the switching valve to bleed the control valve diaphragm pressure to atmosphere, closing the control valve. The control valve remains closed until the inlet pressure is restored to the desired setting.



    Fisher 167DA Series Switching Valve Three-way Pressure Reducing Regulator Valve 0
