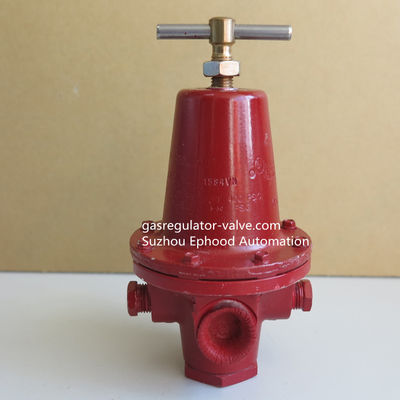

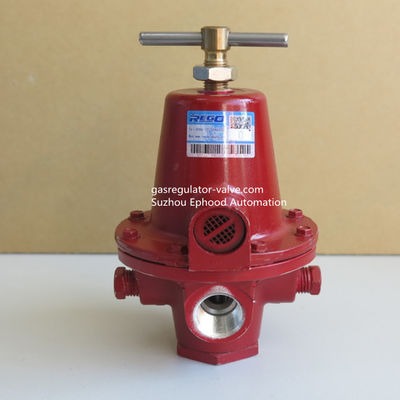

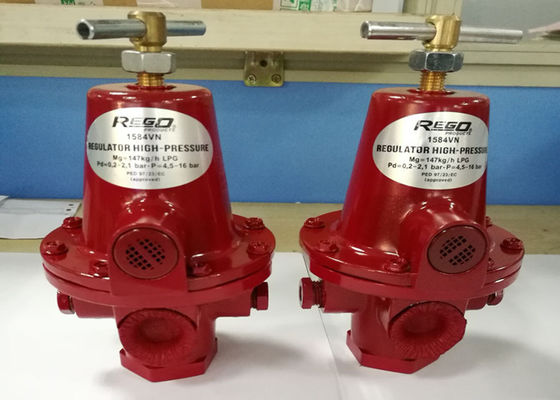

Rego 1584 Model 1st Stage Propane Pressure Regulator Optional Spring Range For LPG Gas Fired Burner

Rego 1584 Model 1st Stage Propane Pressure Regulator Optional Spring Range For LPG Gas Fired Burner

    • Rego 1584 Model 1st Stage Propane Pressure Regulator Optional Spring Range For LPG Gas Fired Burner
    • Rego 1584 Model 1st Stage Propane Pressure Regulator Optional Spring Range For LPG Gas Fired Burner
    • Rego 1584 Model 1st Stage Propane Pressure Regulator Optional Spring Range For LPG Gas Fired Burner
  • Rego 1584 Model 1st Stage Propane Pressure Regulator Optional Spring Range For LPG Gas Fired Burner

    Product Details:

    Place of Origin: Made In USA
    Brand Name: Rego
    Model Number: 1584VN Model

    Payment & Shipping Terms:

    Minimum Order Quantity: 12sets
    Price: Negotiation
    Packaging Details: 1set packed in one carton ,each carton size is 22*15.5*15.5cm,1.6kg each one.
    Delivery Time: 3-8 work-days
    Payment Terms: T/T, Western Union, MoneyGram
    Supply Ability: 500sets Every Month
    Contact Now
    Detailed Product Description
    Name: Rego 1584VN Model LPG GAS Regulator End Connetion: 1/2" NPT*1/2" NPT
    Inlet Pressure: 27Bar Spring Range: 3-30psi,Or Choose
    Usage: Reduce LP-Gas And Anhydrous Ammonia Container Pressure Flow Rate: 100kg/h
    High Light:

    adjustable gas regulator

    ,

    two stage pressure regulator

    Rego Brand From USA High Pressure LPG Gas Regulators 1584 Model



    Application

    Designed to reduce LP-Gas and anhydrous ammonia container pressures to between 3 and 125 PSIG.

    Precision-built with a multi-million BTU capacity, the 1580V series is perfect for such big, tough jobs as crop dryers, asphalt batch mixing plants, road building “tar wagons”, heat treating and other large industrial and commercial loads.

    It’s also ideal as a first stage regulator in large multiple operations.

    The AA1580V series is ideal for use in anhydrous ammonia applications such as blue print machines and heat treating.



    Features

    Large nozzle and straight through flow provides high capacity and resistance to freeze-up.

    O-ring on retainer assembly provides a dampening effect to reduce vibration.

    Suitable for both liquid and vapor service.

    Can be readily fitted with pressure gauge in ¼” F. NPT port.



    Materials

    Body Forged Aluminum
    Bonnet Die Cast Aluminum
    Spring Steel
    Valve Seat Discs Resilient Rubber
    Diaphragms Integrated Fabric and Synthetic Rubber



    Ordering Information

    Part
    Number
    Service Adjustment
    Method
    Inlet & Outlet
    Connections
    Outlet Pressure
    Range (PSIG)

    1584VN

    1584VL

    1584VH

    LP-Gas Tee Handle ½”F. NPT

    3-30

    25-50

    45-125







    Rego 1584 Model 1st Stage Propane Pressure Regulator Optional Spring Range For LPG Gas Fired Burner 0

    Rego 1584 Model 1st Stage Propane Pressure Regulator Optional Spring Range For LPG Gas Fired Burner 1
