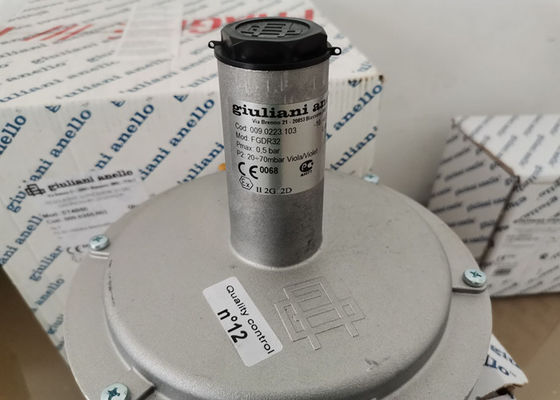

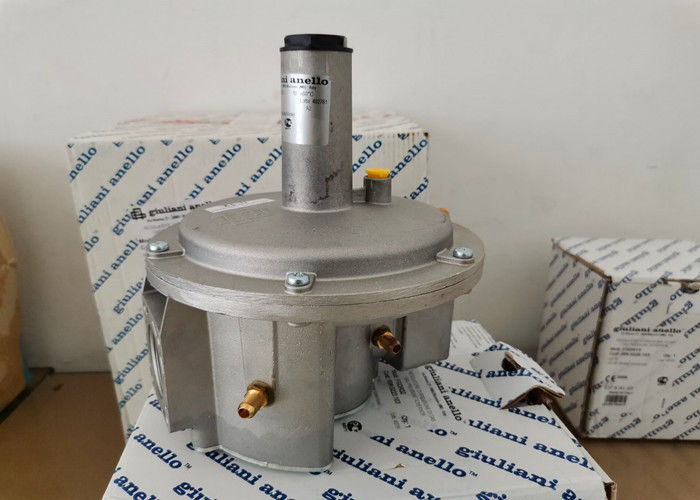

FGDR32/50 Model Aluminium Gas Pressure Regulator With Built In Filter Italy Giuliani Anello Made

FGDR32/50 Model Aluminium Gas Pressure Regulator With Built In Filter Italy Giuliani Anello Made

    • FGDR32/50 Model Aluminium Gas Pressure Regulator With Built In Filter Italy Giuliani Anello Made
    • FGDR32/50 Model Aluminium Gas Pressure Regulator With Built In Filter Italy Giuliani Anello Made
    • FGDR32/50 Model Aluminium Gas Pressure Regulator With Built In Filter Italy Giuliani Anello Made
  • FGDR32/50 Model Aluminium Gas Pressure Regulator With Built In Filter Italy Giuliani Anello Made

    Product Details:

    Place of Origin: Made in Italy
    Brand Name: giuliani anello
    Model Number: FGDR

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Price: Negotiable
    Packaging Details: Each set packed in one carton
    Delivery Time: 3work-days
    Payment Terms: T/T, Western Union, MoneyGram
    Supply Ability: 50sets in 7days
    Contact Now
    Detailed Product Description
    Name: FGDR32 Aluminium Pressure Regulator Max Inlet Pressure: 500 Mbar
    Filtration: 120 - 250 Mbar Suitable For Manufactured Gas: Natural Gas, Liquefied Petroleum Gas (LPG), Non-aggressive Gas And Air
    Connection DN25: Thread End FGDR: Pressure Regulator With Built-in Filter

    Italy giuliani anello Made Aluminium Pressure Regulator With Built-in Filter FGDR Model



    Aluminium pressure regulator with built-in filter, to EN 88-1.
    Max. inlet pressure 500 mbar. Max. outlet pressure 350 mbar.
    Closure control. Suitable for manufactured gas, natural gas, liquefied petroleum gas (LPG), non-aggressive gas and air. Operating temperature range: -15 to 60°C.

    TECHNICAL SPECIFICATIONS

    Inlet pressure range P1:
    FGD: +5mbar up to 200mbar

    FGDR: +30mbar up to 500mbar

    FG1B: +30mbar up to 1bar

    Operating Range P2 : neutral spring standard supply; other ranges according to the spring table.

    Standard Reference :
    FGD- FGDR: EN 88-1
    FG1B : EN 88-2
    Governor Class :
    FGD – FGDR :class A
    FG1B:class AC10
    Closing Pressure :
    FGD:this model doesn‘t feature test closing
    FGDR:in according with Standard EN 88-1
    FG1B:class SG30


    Resistance: according to EN13611 specifications.

    Fuel : Gases of three families: manufactured gas (town gas);natural gas (group H - methane); liquefied petroleum gas(LPG); non-aggressive gas.
    Ambient Temperature Range: -15℃ to +60℃
    Operation : by tensioning the spring, without auxiliary energy.

    Construction Features: compensation of inlet pressure,standard supply safety diaphragm, internal pipe impulse. Fast-seal gasket.
    All models are supplied with inlet and outlet pipe tap fittings.



    Outlet Pressure of FGDR Model Pressure Gas Regulator

    Model FGDR 15-20-25 FGDR 32-40-50/40 FGDR 50
    Spring Color Green 5-15 mbar 5-15 mbar 5-15 mbar
    Neutral 10-30 mbar 10-25 mbar 10-35 mbar
    Violet 25-80 mbar 20-70 mbar 30-80 mbar
    Brown 70-160 mbar 65-130 mbar 70-220 mbar
    Blue 150-280 mbar / 210-350 mbar
    White 270-350 mbar 120-250 mbar /
    Black / 240-350 mbar /



    Material: Aluminum body ,inner parts in aluminum ,steel, brass and synthetic materials; diaphragm and gaskets in nitrile-butadiene rubber.
    TECHNICAL FEATURES
    Compensation diaphragm, operating diaphragm and safety diaphragm: an external breather outlet pipe is not necessary as the incorporated safety diaphragm ensures that, in the event of breakage of the operating diaphragm,no gas leakage (over 30 dm3/h) is

    possible inside the room (in compliance with par.3.3.2. EN88 specifications).

    INSTALLATION
    Install the governor with the diaphragm positioned horizontally (on horizontal pipes). Be careful to follow always the direction of gas flow indicated by the arrow on the regulator/governor.

    Suitable tools must be used for the regulator/governor fitting on the inlet and outlet hubs. Never effect leverage on the sleeve of the upper cover when fitting the regulator/governor.
    For all models with the filter inside, the regulator/governor is best fitted at a comfortable height from the ground so as to faclitate the filter cleaning (fit always a suitable gas filter upstream the governor/regulator).
    Make sure that the pipes are clean and aligned so the regulator/governor is not under stress.
    Do not remove the perforated diaphragm breather cap (3) and do not obstruct the hole, otherwise the regulator/governor will not work. Install the governor so avoiding contact with plastered walls.
    Make sure that the regulator/governor is suitable to the intended use.



    Model

    Part Number

    Description

    End

    FGDR32 009.0223.101 With neutral spring 10-25 mbar 1-1/4"
    FGDR32 009.0223.102 With green spring 5-15 mbar 1-1/4"
    FGDR32 009.0223.103 With violet spring 20-70 mbar 1-1/4"
    FGDR32 009.0223.104 With brown spring 65-130 mbar 1-1/4"
    FGDR32 009.0223.106 With white spring 120-250 mbar 1-1/4"
    FGDR32 009.0223.107 With black spring 240-350 mbar 1-1/4"



    FGDR32/50 Model Aluminium Gas Pressure Regulator With Built In Filter Italy Giuliani Anello Made

    FGDR32/50 Model Aluminium Gas Pressure Regulator With Built In Filter Italy Giuliani Anello Made

    FGDR32/50 Model Aluminium Gas Pressure Regulator With Built In Filter Italy Giuliani Anello Made
