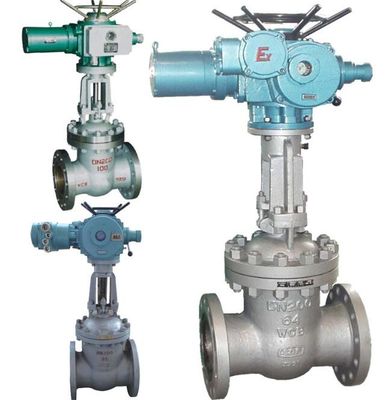

DN300 12 Inch Automatic Standard Motorized Gate Valve With Electric Actuator

DN300 12 Inch Automatic Standard Motorized Gate Valve With Electric Actuator

    • DN300 12 Inch Automatic Standard Motorized Gate Valve With Electric Actuator
    • DN300 12 Inch Automatic Standard Motorized Gate Valve With Electric Actuator
  • DN300 12 Inch Automatic Standard Motorized Gate Valve With Electric Actuator

    Product Details:

    Place of Origin: China
    Brand Name: SUFA
    Certification: (DNV)ISO9001,(DNV)ISO14001,CE0035
    Model Number: HQ14X,H42X,H41X,H44X

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: USD 50~500/set
    Packaging Details: Wooden box, ply-wood box, carton box, pallet
    Delivery Time: within 8-12 working days upon receipt of payment
    Payment Terms: T/T, Western Union, MoneyGram, L/C
    Supply Ability: 500 sets/month
    Contact Now
    Detailed Product Description
    Size: DN 40~DN 800 Pressure: PN10/PN16
    Face To Face: EN558-1 Flange Connection:: EN1092 PN10/16

    DN300 12 Inch Automatic Standard Motorized Gate Valve With Electric Actuator



    Electric, flange connection, open wedge type rigid single gate, seat sealing surface material is stainless steel, nominal pressure PN26, valve body material is cast steel gate valve



    Technical requirement

    1. Design and. manufacture: GB/T12234

    2. Face to Face: CB/T12221

    3. Flanged ends: JB/T 79-94

    4.Testing and checking : GB/T13927







    NO. Name Material NO. Name Material
    1 body WCB 9 Packing Graphite
    2 Seat STL 10 Bolt 45
    3 Wedge WCB+STL 11 Hexagon Nut 35
    4 Stem 2Cr13 12 Gland WCB
    5 Stud 35 13 Yoke WCB
    6 Hexagon Nut 45 14 Bearing
    7 Gasket 304+Graphite 15 Stem Nut ZQAL9-4
    8 Bonnet WCB 16 Electric actuator Components



    DN300 12 Inch Automatic Standard Motorized Gate Valve With Electric Actuator



    DN300 12 Inch Automatic Standard Motorized Gate Valve With Electric Actuator

    Technical Specification






    PN(MPa)

    DN(mm)
    Standard Value reference value Electric Actuator Code
    L D D1 D2 b f Z-φd L1 H weight(kg)
    1.6 50 250 160 125 100 16 3 4-φ18 590 678 90 DZWl0A
    65 265 180 145 120 18 3 4-φ18 590 693 96 DZWl5A
    80 280 195 160 135 20 3 8-φ18 590 755 108 DZW20A
    100 300 215 180 155 20 3 8-φ18 590 820 126 DZW20A
    150 350 280 240 210 24 3 8-φ23 590 994 199 DZW20A
    200 400 335 295 265 26 3 12-φ23 590 1138 254 DZW30A
    250 450 405 355 320 30 3 12-φ25 810 1409 310 DZW45A
    300 500 460 410 375 30 4 12-φ25 810 1588 391 DZW60
    350 550 520 470 435 34 4 16-φ25 830 1755 729 DZW90
    400 600 580 525 485 36 4 16-φ30 830 1902 992 DZWl20
    450 650 640 585 545 40 4 20-φ30 870 214l 1168 DZWl80
    500 700 705 650 608 44 4 20-φ34 870 2276 1222 DZW250
    600 800 840 770 718 48 5 20-φ41 870 2474 1376 DZW250
    2.5 50 250 160 125 100 20 3 4-φ18 590 678 95 DZWl0A
    65 265 180 145 120 22 3 4-φ18 590 693 99 DZWl5A
    80 280 195 160 135 22 3 8-φ18 590 755 113 DZW20A
    100 300 230 190 160 24 3 8-φ23 590 820 132 DZW20A
    150 350 300 250 218 30 3 8-φ25 590 934 206 DZW30A
    200 400 360 310 278 34 3 12-φ25 590 1138 257 DZW30A
    250 450 425 370 332 36 3 12-φ30 810 1409 317 DZW45A
    300 500 485 430 390 40 4 16-φ30 810 1588 412 DZW60A
    350 550 550 490 448 44 4 16-φ34 830 1750 750 DZW90
    400 600 610 550 505 48 4 16-φ34 830 1902 1042 DZWl20
    450 650 660 600 555 50 4 20-φ34 870 2141 1275 DZWl20
    500 700 730 660 610 52 4 20-φ41 870 2276 1420 DZWl80
    600 800 840 770 718 56 5 20-φ41 870 2474 1522 DZW250
