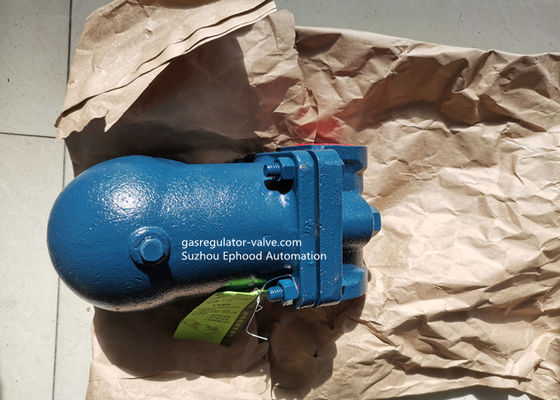

F6 Model DSC Steam Trap Ductile Iron Float Ball Type Thread End Connection

F6 Model DSC Steam Trap Ductile Iron Float Ball Type Thread End Connection

    • F6 Model DSC Steam Trap Ductile Iron Float Ball Type Thread End Connection
    • F6 Model DSC Steam Trap Ductile Iron Float Ball Type Thread End Connection
    • F6 Model DSC Steam Trap Ductile Iron Float Ball Type Thread End Connection
  • F6 Model DSC Steam Trap Ductile Iron Float Ball Type Thread End Connection

    Product Details:

    Place of Origin: Made In China
    Brand Name: DSC
    Model Number: F6

    Payment & Shipping Terms:

    Minimum Order Quantity: 6sets
    Price: USD 196-210 Each Set
    Packaging Details: Each set packed in one carton,12KG.
    Delivery Time: 4-7work-days
    Payment Terms: T/T, Western Union, MoneyGram
    Supply Ability: 50sets in 7days
    Contact Now
    Detailed Product Description
    Name: F6 Model Ductile Iron Float Steam Trap Material: Ductile Iron
    End Connection: DN32 And DN40 Max Operating Pressure: 17Bar
    Type: Float Ball Trap End Connection Style: Thread End

    F6 Model Ductile Iron Float Steam Trap Thread End Operating Pressure 17bar

    ● DSC ductile iron float & thermostatic steam traps float unit for operating pressure 12.5kg/cm2 x 230℃



    ●  No action at no load, continuous at full load.



    ●  Good energy conservation.



    ●  Good resistance to wear.



    ●  Good corrosion resistance.



    F6 model Trap



    No. CONN.FE.* A B C D E MOP WT
    F6 32.40 129 100 66 210 36 17

    11









    ●  Excellent operation against back pressure.



    ●  Excellent ability to vent air at very low pressure.



    ●  Excellent ability to handle start up air loads.



    ●  Immediate responsiveness to slugs of condensate.



    ●  1/2” 3/4” 1” with diffuser can resistance water hammer



    Steam trap is a device used to discharge condensates and non-condensable gases with a negligible consumption or loss of live steam. Steam traps are nothing more than automatic valves. In industry, steam is used regularly for heating or as a driving force for mechanical power. A steam trap is discharging the condensate from the steam pipe line while trapping the steam.They open, close or modulate automatically. The three important functions of steam traps are:

    NO.1 Discharge condensate as soon as it is formed (unless it is desirable to use the sensible heat of the liquid condensate)

    NO.2 Have a negligible steam consumption (i.e. being energy efficient)

    NO.3 Have the capability of discharging air and other non-condensable gases.

    The aim of a steam trap is discharging the condensate from the steam pipe line while trapping the steam. All the steam trap types have different working principles that has advantage and disadvantages.

    In principle steam traps have to do the followings;

    1- Discharging the condensate from the pipeline
    2- Trapping the steam
    3- Discharging the air and gas.

    Condensate Discharge Capacity in KG/HR.

    F6 Model DSC Steam Trap Ductile Iron Float Ball Type Thread End Connection 0

    F6 Model DSC Steam Trap Ductile Iron Float Ball Type Thread End Connection 1



    F6 Model DSC Steam Trap Ductile Iron Float Ball Type Thread End Connection 2
