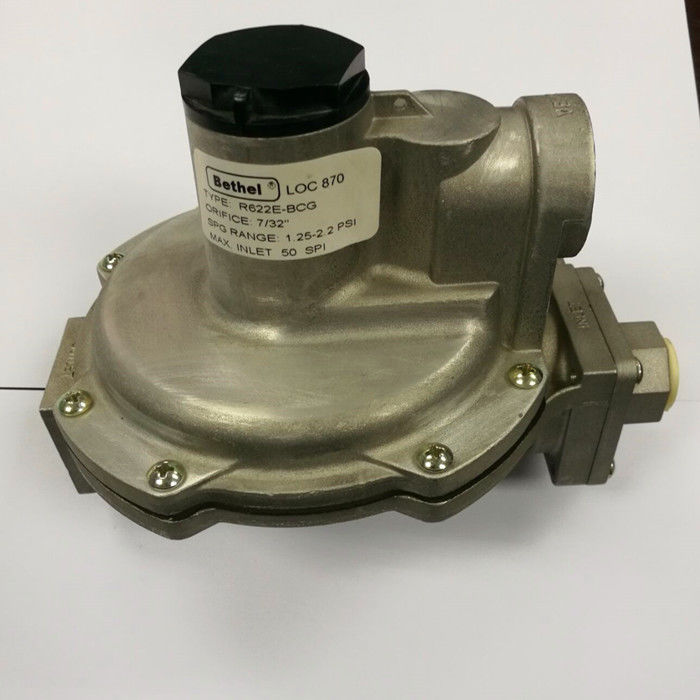

Bethel R622 Gas Pressure Regulator Second-Stage Lpg Gas Regulator For Gas Fired Burner

Bethel R622 Gas Pressure Regulator Second-Stage Lpg Gas Regulator For Gas Fired Burner

    • Bethel R622 Gas Pressure Regulator Second-Stage Lpg Gas Regulator For Gas Fired Burner
  • Bethel R622 Gas Pressure Regulator Second-Stage Lpg Gas Regulator For Gas Fired Burner

    Product Details:

    Place of Origin: Made In China
    Brand Name: Bethel
    Model Number: R622

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiation
    Price: Negotiation
    Packaging Details: 1set packed in one carton ,each carton size is 22*15.5*15.5cm,1.6kg each one.
    Delivery Time: 3-8 work-days
    Payment Terms: T/T, Western Union, MoneyGram
    Supply Ability: 1000sets Every Month
    Contact Now
    Detailed Product Description
    Name: R622 LPG Pressure Gas Regulator End Connetion: 1/2" NPT*1/2" NPT
    Inlet Pressure: 10psi Spring Range: Can Choose
    Orifice Size: 7/32" Flow Rate: 30m³/h
    High Light:

    pressure reducing regulator

    ,

    adjustable gas regulator

    Bethel R622 Second-Stage Regulator- LP Gas



    Type R622 second-stage regulators are UL listed designed to reduce the outlet pressure from a first-stage regulator in domestic installations, commercial, and industrial applications. R622 used on natural, manufactured gas, or LP gas.



    Features

    Compact Design

    High Capacity

    Protective Inlet Screen

    Internal Relief

    Light Weight

    Inlet and Outlet Pressure Gauge Taps



    Specifications

    Available Configurations Type R622 (standard):

    Second-stage regulator with straight-through body design

    Body Sizes and End Connection Styles

    1/2 “NPT*1/2”NPT, 3/4”NPT*3/4”NPT, 1/2”NPT*3/4”NPT

    Maximum Inlet Pressures: 2-3 bar

    Emergency Inlet Pressure: 50 psi / 3.4 bar

    Flow volume :30m³/h

    Outlet Pressure Ranges

    6-9"wc/15-22mbar

    9-13"wc/22-32mbar

    13-20"wc/32-48mbar

    16-35"wc/40-87mbar

    1-2.2 psi/0.07-0.15 bar

    Pressure Registration :Internal



    Bethel R622 Gas Pressure Regulator Second-Stage Lpg Gas Regulator For Gas Fired Burner 0



    NO. Model Type Orifice Spring Setting Pressure Inlet Size Outlet Size
    1 R622-BCF 2nd stage 7/32 9-13IN W.C 11"W.C. 1/2" 1/2"
    2 R622-BCC 2nd stage 7/32 6-9IN W.C 7"W.C. 1/2" 1/2"
    3 R622-BCG 2nd stage 7/32 13-20IN W.C 14"W.C. 1/2" 1/2"
    4 R622-CFF 2nd stage 7/32 9-13IN W.C 11"W.C. 1/2" 3/4"
    5 R622-DFF 2nd stage 7/32 9-13IN W.C 11"W.C. 3/4" 3/4"
    6 R622-DFG 2nd stage 7/32 13-20IN W.C 14"W.C. 3/4" 3/4"
    7 R622H-DGJ High Pressure 7/32 8-12 PSI 10 PSI 3/4" 3/4"
    8 R632-BCF Two-stage 7/32 9-13IN W.C 11"W.C. 1/4" 1/2"
    9 R632-CFF Two-stage 7/32 9-13IN W.C 11"W.C. 1/4" 3/4"
    10 R622-2 Regulator 1/8 5-7IN W.C 6"W.C. 1/2" 1/2"
    11 R622-4 Regulator 1/8 9-13IN W.C 11"W.C. 1/2" 1/2"
    12 R622-5 Regulator 1/8 13-20IN W.C 16.7"W.C. 1/2" 1/2"
    13 R622-7 Regulator 1/8 1-2.2 PSI 2 PSI 1/2" 1/2"
    14 R622-16 Regulator 1/8 5-7IN W.C 6"W.C. 1/2" 1/2"
