2nd Stage R622 Model LPG Regulators Optional Spring Range For LPG Gas Fired Burner

China 2nd Stage R622 Model LPG Regulators Optional Spring Range For LPG Gas Fired Burner supplier
2nd Stage R622 Model LPG Regulators Optional Spring Range For LPG Gas Fired Burner supplier 2nd Stage R622 Model LPG Regulators Optional Spring Range For LPG Gas Fired Burner supplier

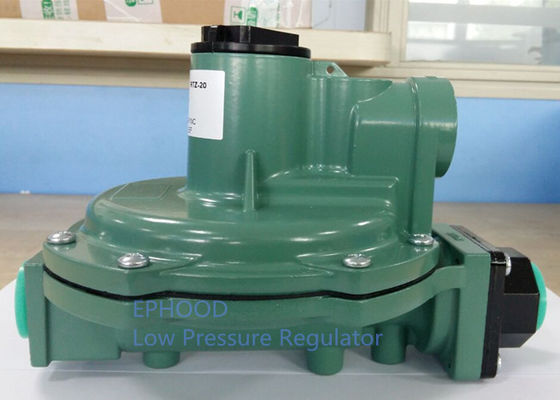

Large Image :  2nd Stage R622 Model LPG Regulators Optional Spring Range For LPG Gas Fired Burner

Product Details:

Place of Origin: Made In China
Brand Name: Bethel
Model Number: R622

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: 1set packed in one carton ,each carton size is 22*15.5*15.5cm,1.6kg each one.
Delivery Time: 3-8 work-days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 500sets Every Month
Contact Now
Detailed Product Description
Name: R622 LPG GAS Regulator End Connetion: 3/4" NPT*3/4" NPT
Inlet Pressure: 10psi Spring Range: Can Choose
Orifice Size: 7/32" Flow Rate: 30m³/h
High Light:

adjustable gas regulator

,

two stage pressure regulator

Bethel R622 Model Low Pressure Regulator

Type R622 second stage regulators are UL listed designed to reduce the outlet pressure from a first-stage regulator in domestic installations, commercial, and industrial applications. R622 used on natural, manufactured gas, or LPG gas.



Features

Compact Design

High Capacity

Protective Inlet Screen

Internal Relief

Light Weight

Inlet and Outlet Pressure Gauge Taps



Specifications

Available Configurations Type R622 (standard):

Second-stage regulator with straight-through body design

Body Sizes and End Connection Styles

1/2 “NPT*1/2”NPT, 3/4”NPT*3/4”NPT, 1/2”NPT*3/4”NPT

Maximum Inlet Pressures: 2-3 bar

Emergency Inlet Pressure: 50 psi / 3.4 bar

Flow volume :30m³/h

Outlet Pressure Ranges

6-9"wc/15-22mbar

9-13"wc/22-32mbar

13-20"wc/32-48mbar

16-35"wc/40-87mbar

1-2.2 psi/0.07-0.15 bar

Pressure Registration :Internal



2nd Stage R622 Model LPG Regulators Optional Spring Range For LPG Gas Fired Burner



NO. Model Type Orifice Spring Setting Pressure Inlet Size Outlet Size
1 R622-BCF 2nd stage 7/32 9-13IN W.C 11"W.C. 1/2" 1/2"
2 R622-BCC 2nd stage 7/32 6-9IN W.C 7"W.C. 1/2" 1/2"
3 R622-BCG 2nd stage 7/32 13-20IN W.C 14"W.C. 1/2" 1/2"
4 R622-CFF 2nd stage 7/32 9-13IN W.C 11"W.C. 1/2" 3/4"
5 R622-DFF 2nd stage 7/32 9-13IN W.C 11"W.C. 3/4" 3/4"
6 R622-DFG 2nd stage 7/32 13-20IN W.C 14"W.C. 3/4" 3/4"
7 R622H-DGJ High Pressure 7/32 8-12 PSI 10 PSI 3/4" 3/4"
8 R632-BCF Two-stage 7/32 9-13IN W.C 11"W.C. 1/4" 1/2"
9 R632-CFF Two-stage 7/32 9-13IN W.C 11"W.C. 1/4" 3/4"
10 R622-2 Regulator 1/8 5-7IN W.C 6"W.C. 1/2" 1/2"
11 R622-4 Regulator 1/8 9-13IN W.C 11"W.C. 1/2" 1/2"
12 R622-5 Regulator 1/8 13-20IN W.C 16.7"W.C. 1/2" 1/2"
13 R622-7 Regulator 1/8 1-2.2 PSI 2 PSI 1/2" 1/2"
14 R622-16 Regulator 1/8 5-7IN W.C 6"W.C. 1/2" 1/2"
