Product Details:

Place of Origin: Made In China
Brand Name: DSC
Model Number: 701S

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Each set packed in one wooden case
Delivery Time: 4-7work-days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 50sets in 7days
Contact Now
Detailed Product Description
Name: Stainless Steel Inverted Bucket Steam Trap Material: SS304
End Connection: DN15,DN20,DN25 Max Operating Pressure: 28Bar
Type: Inverted Bucket End Connection Style: Thread And Flange End
High Light:

steam trap valve

,

flanged steam trap

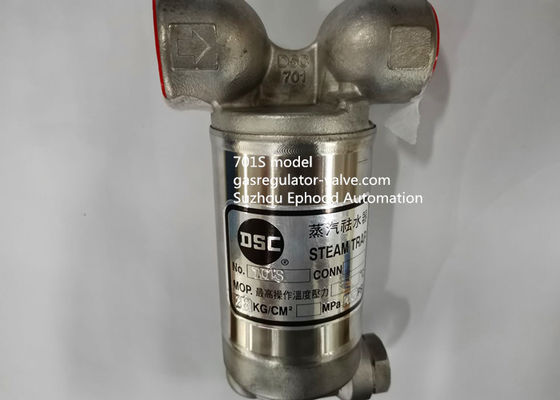

701S Model Stainless Steel Inverted Bucket Steam Trap

Two years warranty

Features:

Body Material:stainless steel
Max temp:300 degree
Operating pressure:

701S Model -- 28bar

702S Model -- 30bar

703S Model -- 30bar

704S Model -- 30bar
NPT,BSPT,SW can be supplied

International certification:
ISO9001:2000,ISO9001:2008
Patent certificate:
ZL200920003337.2,ZL201020509246.9

Features:

1. Fully sealed stainless steel welding , Looked beautiful

2. Parts adopt stainless steel and hardened chrome steel seat,resistance to corrosion

3. Mechanical design, encounter condensate emissions immediately response
4. Can be used in the superheated steam
5. Back pressure resistance ability, is suitable for the recovery system

6. Small volume, light quality, not frozen
7. Special specifications can accept customization
Matters needing attention

1. Fully sealed design, not replacement parts

2.The device must be upright, not skewed


Model Port size(mm) A(mm) B(mm) C(mm) MOP(Bar) Weight(kg)
701S 15.20.25 96 19 165 28 1
702S 20.25 120 23 243 30 2
703S 25.32 145 29 280 30 5.3
704S 32.40 145 29 264 30 7



Material

Body SS304
SS304L
SS316
Inverted Bucket Stainless steel
Mechanical Structure Stainless steel
Seat Hardened chrome steel
Strainer Stainless steel
Inner tube Stainless steel
Screw Stainless steel
Nut Stainless steel



* NPT,BSPT,SW can be supplied
