Fisher 299H Flange End Fisher Control Gas Regulator Pressure Reducing Valve

Fisher 299H Flange End Fisher Control Gas Regulator Pressure Reducing Valve
Fisher 299H Flange End Fisher Control Gas Regulator Pressure Reducing Valve Fisher 299H Flange End Fisher Control Gas Regulator Pressure Reducing Valve

Large Image :  Fisher 299H Flange End Fisher Control Gas Regulator Pressure Reducing Valve

Product Details:
Place of Origin: Made In Mexico
Brand Name: Fisher
Model Number: 299H
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: USD 2000-3000 Each Set
Packaging Details: 1set packed in one carton ,each carton size is 53*53*36cm,21kg.
Delivery Time: 10weeks
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 200sets Every Month
Detailed Product Description
Name: Fisher 299H Flange End Pressure Reducing Regulator End Connetion: 2" Flange End
Inlet Pressure: 175 Psi / 12.1 Bar Spring Range: 6-16 Inch W.C / 0.41-1.1bar
Flow Rate: 900m³/h Usage: Boilers, Burner Management Systems, Fire & Gas Systems
High Light:

fisher flow control valve

,

fisher differential pressure regulator


Flange End Connection Fisher Model 299H Series Pressure Reducing Regulator


Fisher 299H Series pressure reducing regulators provide a broad capacity for controlled pressure ranges and capacities in a wide variety of distribution, industrial and commercial applications. Fisher 299H Series regulator has a pilot integrally mounted to the actuator casing. Fisher 299H Series regulators can handle inlet pressures up to 175 psi / 12.1 bar depending on orifice size.


Available Constructions
Type 299H: Pilot-operated pressure reducing regulator with a pilot integrally mounted to the actuator casing.

Unique No Bleed Monitor System
High-Capacity Pressure Control
Easy to Maintain
Rugged Construction

Features
1) Compact in Size—Small envelope because of the built-in pilot and internal registration.
2) Unique No Bleed Monitor System—Flexible worker/monitor system setup that allows for bleed to be piped to
the intermediate piping thus eliminating downstream bleed which reduces lost and unaccounted for gas.
Another advantage of this configuration is that the system lockup pressure is that of the worker instead of the monitor.
3) Not an Adaptation of Existing Regulators—New design of integrated cases and internal registration ports.
4) Wide Variety of Applications—Natural gas distribution systems, gas supply to industrial boilers, furnaces, ovens, mixers, plant air service.
5) Accuracy—Keeps constant inlet pressures to downstream equipment by accurately controlling distribution system pressures
at widely varying flow rates and supply pressures for maximum efficiency and best operation, or by eliminating the need
for pressure-compensating meters by holding a steady pressure to the meter inlet.

Outlet Pressure Ranges for 299H Gas Regulator

OUTLET PRESSURE RANGEFisher 299H
In. w.c.mbar
3.5 to 6
5 to 9
7 to 20
16 to 40
9 to 15
12 to 22
17 to 50
40 to 99
1 to 3.25 psig
2.75 to 6 psig
5 to 16 psig
14 to 35 psig
30 to 60 psig
69 mbar to 0.22 bar
0.19 to 0.41 bar
0.34 to 1.1 bar
0.97 to 2.4 bar
2.1 to 4.1 bar




Maximum Operating Inlet Pressure by Orifice Size
1/4 x 3/8 inch / 6.4 x 9.5 mm: 175 psig / 12.1 bar
3/8 inch / 9.5 mm: 175 psig / 12.1 bar
1/2 inch / 13 mm: 175 psig / 12.1 bar
3/4 inch / 19 mm: 150 psig / 10.3 bar
7/8 inch / 22 mm: 125 psig / 8.6 bar
1 inch / 25 mm: 100 psig / 6.9 bar
1-3/16 inch / 30 mm: 80 psig / 5.5 bar

Maximum Outlet (Casing) Pressure
66 psig / 4.5 bar

Minimum Differential Pressure for Full Stroke
1.5 psid / 0.10 bar

Outlet Pressure Ranges
6-16 inch W.C / 0.41-1.1bar

Pressure Registration
External Registration

Temperature Capabilities
-20 to 150°F / -29 to 66°C

Packing Carton/Weight/Volume Weight
53*52*35cm/13.5kg/ 21 kg





NO.ModelTypeOrificeSpringSetting PressureInlet SizeOutlet Size
1R622H-DGJHigh Pressure7/328-12 PSI10 PSI3/4"3/4"
2R632-BCFTwo-stage7/329-13IN W.C11"W.C.1/4"1/2"
3R632-CFFTwo-stage7/329-13IN W.C11"W.C.1/4"3/4"
4R622-2Regulator1/85-7IN W.C6"W.C.1/2"1/2"
5R622-4Regulator1/89-13IN W.C11"W.C.1/2"1/2"
6R622-5Regulator1/813-20IN W.C16.7"W.C.1/2"1/2"
7R622-7Regulator1/81-2.2 PSI2 PSI1/2"1/2"
8R622-16Regulator1/85-7IN W.C6"W.C.1/2"

1/2"

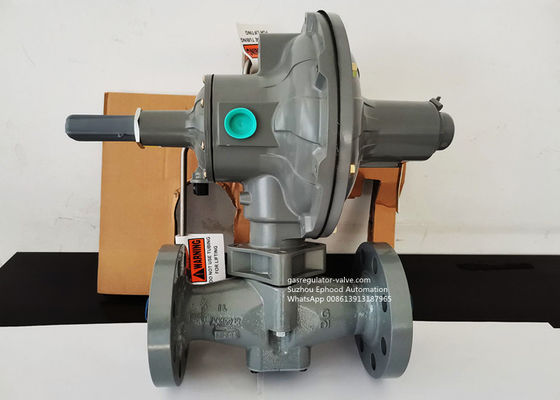

 Fisher 299H Flange End Fisher Control Gas Regulator Pressure Reducing Valve 0
Fisher 299H Flange End Fisher Control Gas Regulator Pressure Reducing Valve 1
