|Name:||Tend Round Column Type Limit Switch TZ-3112||Protection Level:||IP65|
|Operating Temperature:||-5~+65C||Max. Current:||5A|
|Max. Voltage:||250VAC||Operating Speed:||5mm To 50cm/s|
|Operating Frequency:||120 Operations/min.||Contact Resistance:||25mW Max (initial)|
tend brand limit switch,
tend pulley limit switch,
Waterproof Tend Limit Switch

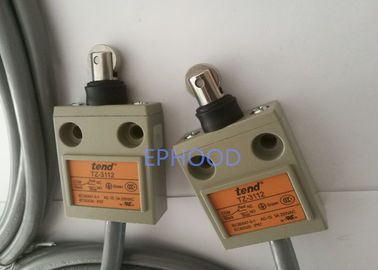

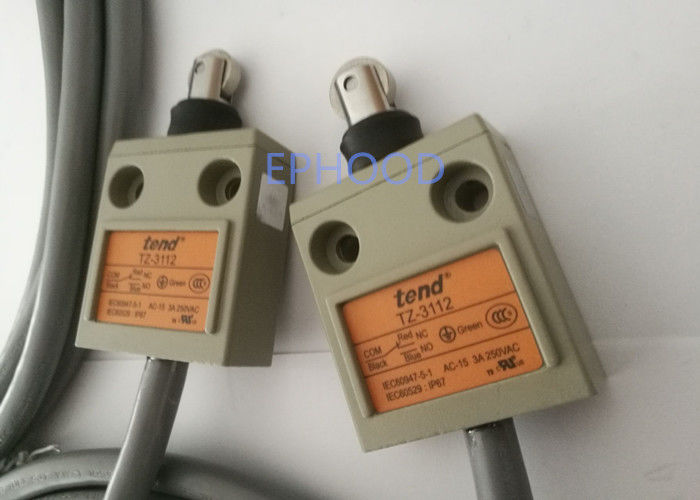

Tend TZ-3112 Safety Electric Limit Switches With 3Meters Wire
TZ3112 Limit Switch
Built-in basic switch with double spring mechanism
. Long life(10,000,000 mechanical operations)
. Highly rigid construction (Head and cover snugly fit in box)
. Dust-proof and drip-proof construction
. Smooth operation with greater OT
. Easy-to-wire conduit opening design
Note: When you place order, please kindly designate clockwise the movement way and type of contact fitted.
