A401 Model Cash Valve High Capacity Pressure Regulating Valve Bronze Body Material

Already received item I ordered, supplier very good corporation Yes ,the HSR work very well...looks very good.

—— DAIKI ALUMINIUM INDUSTRY

Hi Barry, Have received with thanks. Good service,good product,good packing,nice job. We will be in touch shortly. Best Regards, Wayne Strahan

—— HYDCO

I'm Online Chat Now

A401 Model Cash Valve High Capacity Pressure Regulating Valve Bronze Body Material

A401 Model Cash Valve High Capacity Pressure Regulating Valve Bronze Body Material
A401 Model Cash Valve High Capacity Pressure Regulating Valve Bronze Body Material A401 Model Cash Valve High Capacity Pressure Regulating Valve Bronze Body Material A401 Model Cash Valve High Capacity Pressure Regulating Valve Bronze Body Material

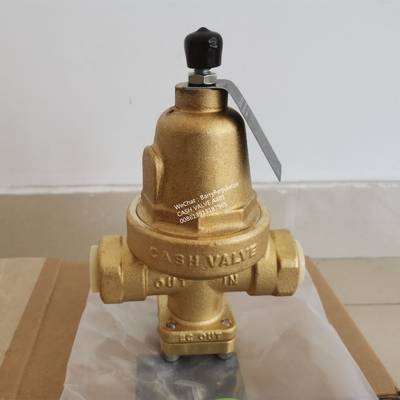

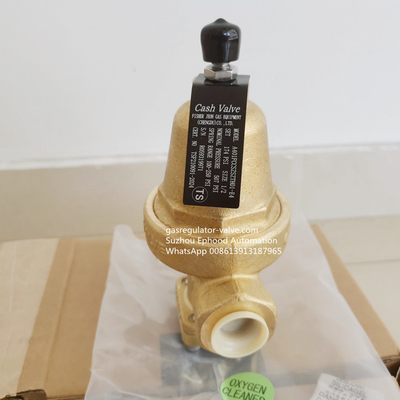

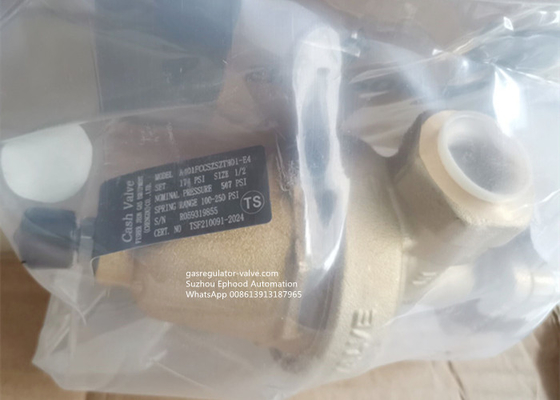

Large Image :  A401 Model Cash Valve High Capacity Pressure Regulating Valve Bronze Body Material

Product Details:
Place of Origin: Made In USA
Brand Name: Cash Valve
Model Number: A401
Payment & Shipping Terms:
Minimum Order Quantity: 4pcs
Price: USD 500-510 each one
Packaging Details: 1set packed in one carton ,each carton size is 30*18*22cm,10kg each one carton.
Delivery Time: 3-8 work-days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 60sets Every Month
Detailed Product Description
Name: A401 Bronze Body Pressure Regulating Valve End Connetion: 1/2"NPT
Inlet Pressure: 600psi Spring Range: 100-250Psi
Application: Home Use,small Commercial And Industrial Valve Body Material: Bronze
Orifice Material: Aluminum



Cash Valve A401 High Capacity Bronze Body Material Pressure Regulating Valve

Pressure Regulator For Water And Air



Description

CASH VALVES CRYOGENIC VALVES AND CONTROLS



A broad range of pressure build regulators, pressure reducing valves, final line gas valves and combination

pressure build economizer valves for cryogenic service.



Cryogenics - the science of materials at extremely low temperatures - has become increasingly important to industry. One important aspect of this field is the liquification of normally gaseous elements which are used widely throughout the industry, including:



Oxygen

used extensively in BOF furnaces in the steel industry, for metal cutting, as a rocket fuel and in medicine.



Applications:
All types of water systems; various pneumatic, cryogenic and hydraulic systems, etc.

Sizes: 1/2", 3/4", 1", 11/4", 11/2", 2" in NPT and BSPT threads.

Features:

Construction

Bronze body and bronze spring chamber; bronze trim and neoprene/nylon diaphragms; FKM seat,disc and gaskets; stainless steel pressure spring. All parts are commercially cleaned for cryogenic service.



Temperature rating: +150°F to -320°F (339K to 78K)

Maximum initial pressure: 600 psi (42.18 kg/cm2)

CASH VALVE A401 Bronze Material Pressure Regulators

Pressure regulators for water and air services designed for high capacity,

variable flow rates and accurate regulation

GENERAL APPLICATION

Suitable for service on air, water, oil, gases (except steam) and fluids not corrosive to brass.

It is particularly suitable for all types of water systems and various hydraulic and pneumatic systems that require exceptional accuracy.

MATERIALS OF CONSTRUCTION

Part Description Materials

Body Bronze
Spring chamber Bronze
Adjusting spring Steel plated
Pressure plate Brass
Diaphragm NBR nylon reinforced
Body seat Stainless steel
Seat disc NBR
Piston Brass
O-ring NBR
Bottom plug Bronze





A401 Model Cash Valve High Capacity Pressure Regulating Valve Bronze Body Material 0
