4 Main Ports Directional Valve Rexroth Direct Operated Directional Spool Valve With Solenoid Actuation

large.img.alt
small.img.alt small.img.alt small.img.alt

Large Image :  4 Main Ports Directional Valve Rexroth Direct Operated Directional Spool Valve With Solenoid Actuation

Product Details:
Place of Origin: Made In Rexroth China
Brand Name: Rexroth
Model Number: 4WE10E5X/EG24N9K4/M
Payment & Shipping Terms:
Minimum Order Quantity: 2sets
Price: USD 200-300 Each One Set
Packaging Details: Each set packed in one carton
Delivery Time: 3work-days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 10sets in 3days
Detailed Product Description
Name: Rexroth Direct Operated Directional Spool Valve Type Of Connection: Subplate Mounting
Port Size: 10 Max Operating Pressure: 350 Bar
Type Of Actuation: Solenoid-actuated Nominal Flow At A Valve Pressure Differential: 160 L/min
Power Supply Voltage: 24 VDC Connection Diagram: ISO 4401-05-04-0-05
Weight: 5.2KG

4 Main Ports Directional Valve Rexroth Direct Operated Directional Spool Valve With Solenoid Actuation

4WE10E5X/EG24N9K4/M



Rexroth Industrial hydraulic valve in a high performance range. Reliable switch-over of the oil flow direction according to hydraulic symbol.

  • Spool type valve
  • Direct operated



Features

  1.  4/3-, 4/2- or 3/2-way version
  2.  Porting pattern according to ISO 4401-05-04-0-05
  3.  High-power solenoid, optionally rotatable by 90°
  4.  Electrical connection as individual or central connection
  5.  Cartridge optionally equipped with PWM connector (fast switching amplifier, energy reduction) Manual override, optional
  6.  CE conformity according to the Low-Voltage Directive 2014/35/EU for electrical voltages > 50 VAC or > 75 VDC
  7.  Solenoid coil as approved component with UR marking, optional
  8.  Approval according to CSA C22.2 No. 139-13, optional

Product Attributes

Type of Connection

Subplate mounting

Max. Pressure 350bar
Max. Flow [l/min] 160
Size 10
Type of Actuation

Solenoid-actuated

Connection Diagram

ISO 4401-05-04-0-05

Number of Ports 4
Number of Switching Positions 3
Supply Voltage 24VDC
Electrical Connector

Connector 3-pole (2 + PE)

Hydraulic Fluid

HL,HLP,HLPD,HVLP,HVLPD,HFC

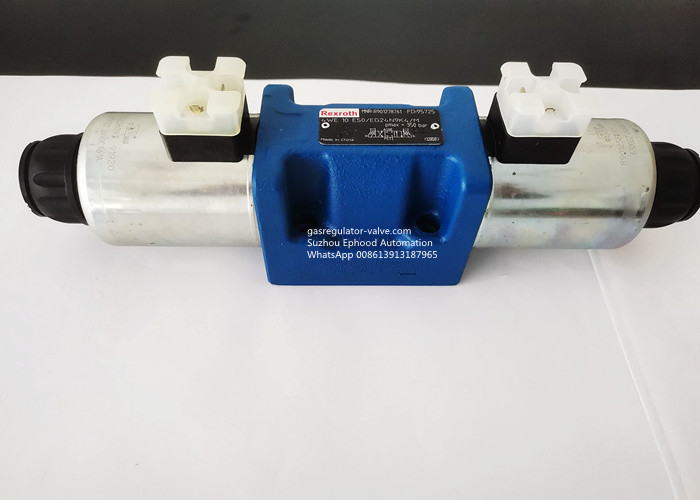

4 Main Ports Directional Valve Rexroth Direct Operated Directional Spool Valve With Solenoid Actuation 0




– Direct operated proportional directional valve with electrical posisiton feedback and integrated electronics (OBE) for type 4WREE
– Closed loop control of the direction and size of a flow
– Operation is by proportional solenoids with a central thread and removable coil
– For subplate mounting: Porting pattern to ISO 4401Subplates to catalogue sheets RE 45052 (NS6) or RE 45054 (NS10)
– Spring centred control spool
– Control electronics
• 4WREE
- integrated electronics (OBE) with voltage input or current input (A1 resp. F1)





Ordering Details for Choosing Model Number

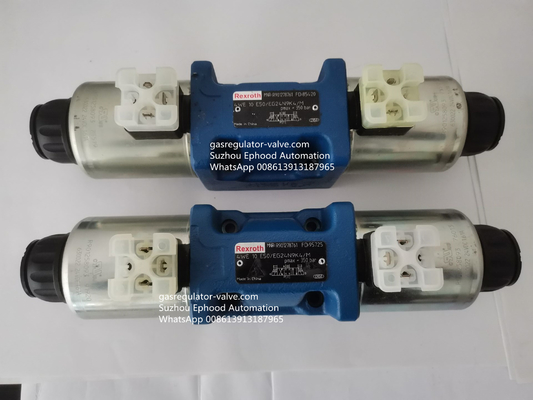

4 Main Ports Directional Valve Rexroth Direct Operated Directional Spool Valve With Solenoid Actuation 1

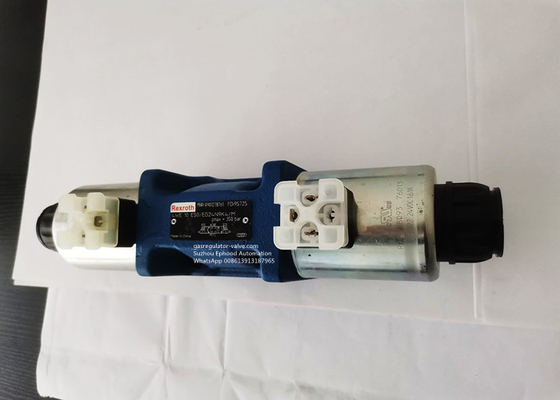

4 Main Ports Directional Valve Rexroth Direct Operated Directional Spool Valve With Solenoid Actuation 2
