Wafer Type Pneumatic Operated Valve Lightweight Energy Saving Compact Design

Large Image : Wafer Type Pneumatic Operated Valve Lightweight Energy Saving Compact Design

Product Details:

Place of Origin:	China
Certification:	(DNV)ISO9001,(DNV)ISO14001,CE0035
Model Number:	ZDY641

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD20~500 /PC
Packaging Details:	Wooden box, ply-wood box, carton box, pallet
Delivery Time:	within 8-12 working days upon receipt of payment
Payment Terms:	T/T, Western Union, MoneyGram, L/C
Supply Ability:	500PCS per month

Contact Now

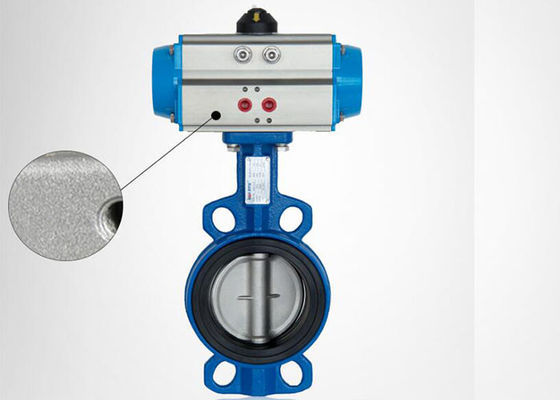

Wafer Type Pneumatic Operated Valve Lightweight Energy Saving Compact Design

Description

Side:

DN50-DN1000

Pressure:

PN10/PN16/150 Psi/200 Psi

Valve Body Material:

Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel, Etc

Applicable Medium:

Fresh Water, Sewage, Sea Water, Weak Acid And Alkali, Etc

Highlight:

pneumatic flow control valve

pneumatic actuator valve

Wafer Type Pneumatic Operated Valve

Purpose
This valve is used as a out off and adjusting equipment for the various water supply and drainage pipelines in building, chemical medicine, textile, ship and other industries.

Features
1. Small in size and light in weight. Easy installation and maintenance.lt can be mounted wherever need.
2. Simple and compact construction, quick 90 degrees on-off
operation.
3. Minimized operating torque, energy saving.
4. Flow curve tending to straight line. Excellent regulation performance.
5. Long service life. Standing the test of tens of thousands opening/closing operations.
6. Bubbles tight sealing with no leakage under the pressure test.
7. Wide selection of material applicable for various medium.

Performance parameters
PN(Mpa)	1.0	1.6	150lb
DN(mm)	40-1200
Suitable temperature	≤100℃
Media	Water, oil, gas

Body	Disc	Stem	Seat	Actuator
Cast iron	Plated ductile iron	Stainless steel	PEDM/NBR	Lever
Ductile iron	CF8		WRAS-EPDM	Gearbox and handwheel
Carbon steel	CF8M		Viton	Electric
Stainless steel	Aluminum bronze	customised	Silicon	Pneumatic
PS1.Replaceable backed seat 2 Pin disc Pinless disc Nylon disc Epoxy disc

Wafer Type Pneumatic Operated Valve Lightweight Energy Saving Compact Design 0

Wafer Type Pneumatic Operated Valve Lightweight Energy Saving Compact Design 1

Testing Conditions

Wafer Type Pneumatic Operated Valve Lightweight Energy Saving Compact Design 2

The corner of the inventory

Wafer Type Pneumatic Operated Valve Lightweight Energy Saving Compact Design 3

Installation

Wafer Type Pneumatic Operated Valve Lightweight Energy Saving Compact Design 4
