Suzhou Ephood Automation Equipment Co., Ltd.
Gas Regulator,Pressure Transmitter,SUFA Water Valve
 |
| Place of Origin: | China |
| Brand Name: | SUFA |
| Certification: | (DNV)ISO9001,(DNV)ISO14001,CE0035 |
| Model Number: | 150~1600BD341H-10Q/150~1600BD341H-16Q |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD20~500 /PC |
| Packaging Details: | Wooden box, ply-wood box, carton box, pallet |
| Delivery Time: | within 8-12 working days upon receipt of payment |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 500PCS per month |
| Side: | DN150-DN1600 | Pressure: | PN10/PN16/150 Psi/200 Psi |
|---|---|---|---|
| Valve Body Material: | Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel, Etc | Applicable Medium: | Fresh Water, Sewage, Sea Water, Weak Acid And Alkali, Etc |
| Highlight: | wafer style butterfly valve,butterfly control valve |
||
ADVANTAGE:
Summary:

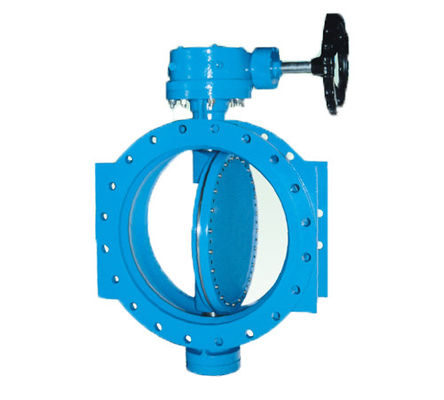

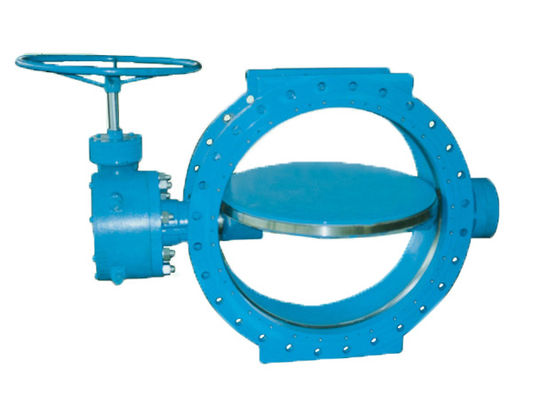

o Double Eccontric Butterfly Valves have reliable seal characteristic. Media can be efficiently sealed by the valve no matter which direction it's from. So these valve are especially suitable for the potable water pipe with out direction requirements.
Unique Design:
o Body and disc are coated with epoxy resin on both internal and external surface. So the valve have excellent anti-corrosion characteristic.
o There is no graphite or other organic material in the seal position, which helps the valves keep longer lives,at the same time no corrosion to the media.
o Metal-seal ring position can be adjusted in all directions, which makes the valve can be operated by minimum torque. When the metal-seal ring default by careless or other reasons, it can be easily changed.0 Instead of the graphite packing, NBR or EPDM o-rings are applied for the shaft seal, which keeps maintenance free.
o Up from DN1200, we apply the flying-disc- shaped disc to reduce the head loss.
o Up from DN1800, self-lubricating bearing are applied: to reduce the operation torque.
Design standard: DIN3354
Flange: DIN2501
Face to face dimensions: DIN3202 or Bs5155ẞTop Flange: ISO5211
Testing standard: DIN3230 or GB/T 13927
Working temperature: NBR <80"C EPDM<120C FPM S1 60C
Technical characteristics :
| Nominal diameter | DN150~1600mm | ||
| Nominal pressure | 0.6Mpa | 1.0Mpa | 1.6Mpa |
| Strength testing | 0.9Mpa | 1.5Mpa | 2.4Mpa |
| Functional testing | 0.66MPa | 1.1Mpa | 1.76Mpa |
Main components and their materials:
| NO. | name | material |
| 1 |
body , disc |
QT500-7 GGG50 with internal and External epoxy resin coating |
| 2 | stem |
Cr13,1Cr18Ni9TI 1Cr17Ni12Mo2Ti Stainless steel min.13%Cr |
| 3 | stem nut,bushing |
ZCuAl10Fe3 Bronze CuAl10Fe3 |
| 4 | seal ring,O-Ring |
NBR, EPDM or FBM |
Testing Conditions
The corner of the inventory
Installation
