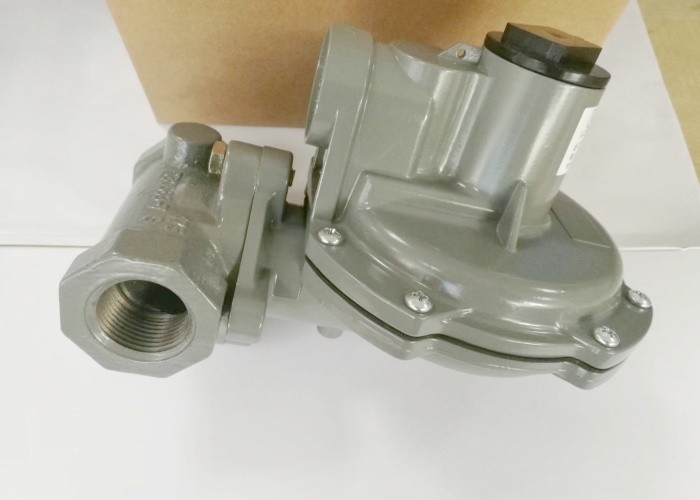

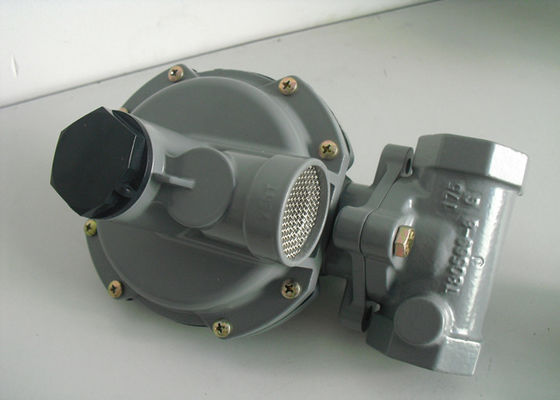

Adjustable Gas Pressure Regulator China Make LHSR Model Pressure Reducing Regulator

China make LHSR Model Pressure Reducing Regulator Use For Gas Fired Burner

Type HSR direct-operated, spring-loaded pressure reducing regulators provide control in residential, commercial,

and industrial applications for natural, manufactured, or liquefied petroleum gases.Internal relief across the diaphragm

helps minimize overpressure. Any outlet pressure over the start-to-discharge point of the nonadjustable relief valve

spring moves the diaphragm off the relief valve seat, allowing excess pressure to vent.Regulators meet ANSI B109.4/CGA 6.18.

Features
Globe Bodies
High Capacity
Compact Design
High Capacity Internal Relief
Meets or Exceeds ANSI B109.4 / CGA 6.18 Requirements
Fixed Factor / PFM Accuracy

Body Size and End Connection Styles
1inch NPT Globe Body

Allowable Inlet Pressure
Emergency: 150 psig / 10,3 bar
Maximum Operating Pressure: 125 psig / 8,6 bar

Allowable Outlet Pressure
Emergency (Casing): 25 psig / 1,7 bar
Maximum Operating Pressure to Avoid Internal Parts Damage: 3 psi / 0,21 bar differential above outlet pressure setting

Outlet Pressure
1.25 to 2.2psi/0.09 to 0.15bar

Outlet Pressure Ranges Of fisher HSR pressure regulator

4 to 6-inches w.c. (10 to 15 mbar)

6 to 8-inches w.c. (15 to 20 mbar)

8 to 10-inches w.c. (20 to 25 mbar

10 to 12.5-inches w.c. (25 to 31mbar)

12.5 to 20-inches w.c. (31to 50 mbar)

20 to 35-inches w.c. (50 to 87 mbar)

1.25 to 2.2 psig (0.09 to 0.15 bar)

Pressure Registration
Internal

Temperature Capabilities
-20 to 160°F / -29 to 71°C

                                    Table 1. Maximum Operating Inlet Pressure
