|Place of Origin:||Made In China|
|Minimum Order Quantity:||Negotiation|
|Packaging Details:||Tend TZ8169 limit switch,10pcs packed in one carton.|
|Delivery Time:||5-7 Work-days|
|Payment Terms:||T/T, Western Union, MoneyGram,Payonner|
|Supply Ability:||1000PCS in 30Days|
|Name:||Tend Brand Limit Switch Model TZ-8169||Protection Level:||IP65|
|Operating Temperature:||-5~+65C||Max. Current:||5A|
|Max. Voltage:||250VAC||Operating Speed:||5mm To 50cm/s|
|Operating Frequency:||120 Operations/min.||Contact Resistance:||25mW Max (initial)|
tend brand limit switch,
tend pulley limit switch

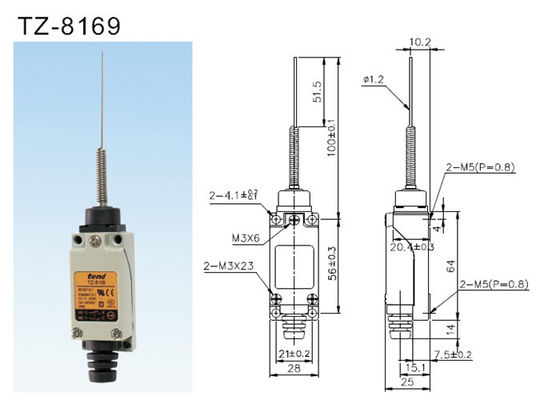

Tend Limit Switch Spring Type TZ-8169 Position Switch TZ8169
Tend Travel Switch Position Switch Limit Switch TZ-8169
. Built-in basic switch with double spring mechanism
. Long life(10,000,000 mechanical operations)
. Highly rigid construction (Head and cover snugly fit in box)
. Dust-proof and drip-proof construction
. Smooth operation with greater OT
. Easy-to-wire conduit opening design
Note: When you place order, please kindly designate clockwise the movement way and type of contact fitted.
