Name: EJX530A Industrial Differential Pressure Flow Transmitter With Accurate Measurement
Brand: YOKOGAWA
SKU: EJX530A
Rating: 4.7 (197 reviews)

Home Products Differential Pressure Transmitter

EJX530A Industrial Differential Pressure Flow Transmitter With Accurate Measurement

Product Details:

Place of Origin:	Made In Japan
Brand Name:	YOKOGAWA
Model Number:	EJX530A

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	Each set packed in one carton
Delivery Time:	6-8weeks
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	50sets 6weeks

Contact Now

Detailed Product Description

Name:	EJX530A In-Line Mount Gauge Pressure Transmitter	Accuracy:	± 0.04% (0.025% Accuracy Option Available)
Measurement Range:	3,600 Psi MWP	Response Time:	90 Ms
Primary Variable:	Differential Pressure	Secondary Variable:	Static Pressure
Output Signal:	4 To 20 MA DC With Digital Communication	Measurement Span:	0.1 To 5 KPa ,0.07 To 14 MPa (10 To 2000 Psi)
High Light:	diff pressure transmitter , pressure differential indicating transmitter

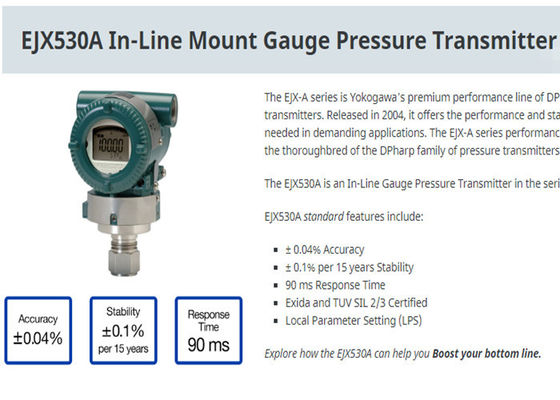

YOKOGAWA EJX530A In-Line Mount Gauge Pressure Transmitter

The EJX-A series is Yokogawa's premium performance line of DPharp transmitters. Released in 2004, it offers the performance and stability needed in demanding applications. The EJX-A series performance makes it the thoroughbred of the DPharp family of pressure transmitters.

The EJX530A is an In-Line Gauge Pressure Transmitter in the series.

EJX530A standard features include:

± 0.04% Accuracy
± 0.1% per 15 years Stability
90 ms Response Time
Exida and TUV SIL 2/3 Certified
Local Parameter Setting (LPS)

Yokogawa's DPharp digital sensor offers twice the performance and stability of the competitor's analog sensors. The DPharp uses the latest in IC Chip-style design and manufacturing technology. Analog sensors are based on older design technology. Although analog sensors are good, the modern DPharp sensor out performs them. A Yokogawa transmitter with DPharp digital sensor will give you the consistent, reliable, accurate measurement you need.

Specification Overview

Measurement Types
Primary Variable	Absolute Pressure
Reference Accuracy
Primary Variable	±0.04% of Span
Stability
Primary Variable	±0.1% of URL per 15 years
Response Time
Primary Variable	90ms
Rangeability
Primary Variable	A Capsule: 25:1 B, C, or D Capsule: 50:1
Burst Pressure (Absolute)
A, B, or C Capsule	4,350 psi (30 MPa)
D Capsule	19,100 psi (132 MPa)
Specification Conformance
EJX-A Series	±3σ

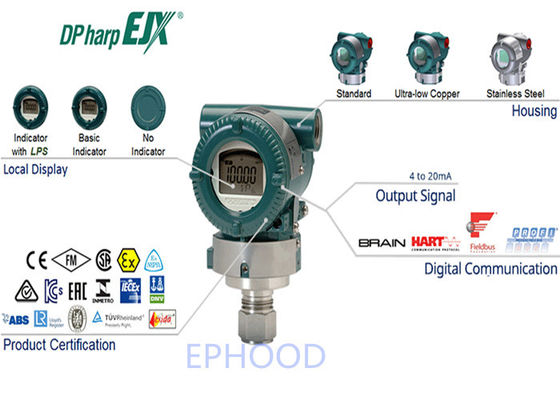

EJX530A Industrial Differential Pressure Flow Transmitter With Accurate Measurement 0

EJX530A Industrial Differential Pressure Flow Transmitter With Accurate Measurement 1
