Rexroth Solenoid Valve Rexroth Directional Control Valve 3DREP6C Model

Proportional Pressure Reducing Valve 3DREPE 6C

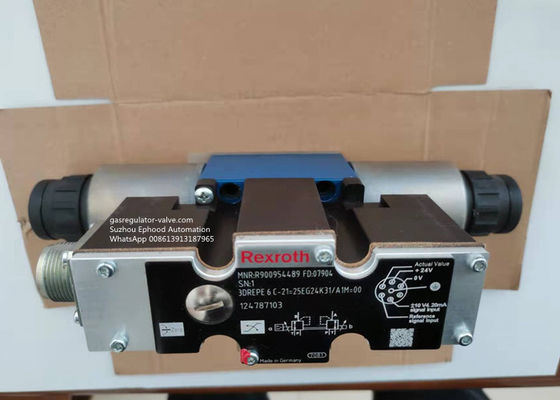

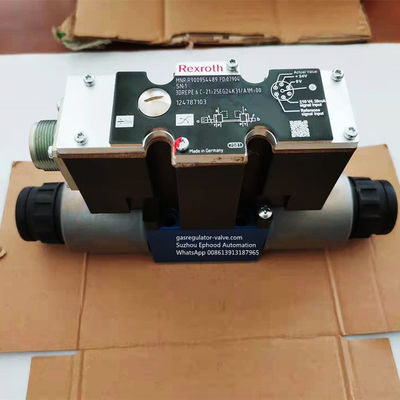

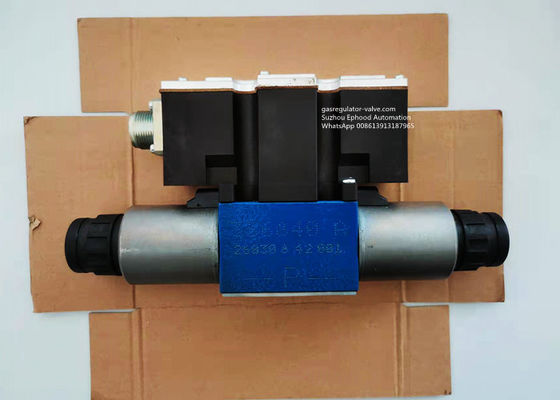

Hydraulic Valve Rexroth Model 3DREPE 6C 2125EG24K31/A1M=00, P/N R900954489

Proportional Pressure Relief Valve in 3-way version

With integrated control electronics

Product Attributes

Features

– Direct operated proportional valves for controlling a pressure and the direction of a flow

– Operation by means of proportional solenoids with central thread and detachable coil

– Subplate mounting: Porting pattern according to ISO 4401

– Manual override, optional

– Spring-centered control spool

– Type 3DREPE with integrated control electronics

– External control electronics for type 3DREP:

• Analog amplifiers type VT-VSPA2-1-2X/… in Eurocard format (separate order)

• Digital amplifier type VT-VSPD-1-1X/… in Eurocard format (separate order)

• Electric amplifier type VT 11118 in modular design

Function, section

The 3-way pressure reducing valve type 3 DREP 6.. is direct operated by proportional solenoids. It is used to convert an electric input signal into a proportional pressure output signal.

The proportional solenoids are controllable wet-pin DC solenoids with central thread and detachable coil. The solenoids are optionally actuated by external control electronics(type 3DREP) or by the internal control electronics(type 3DREPE).

Set-up:

The valve basically consists of:

– Housing (1) with connection surface

– Control spool (2) with pressure measuring spool (3, 4)

– Solenoids (5, 6) with central thread

– Optionally integrated control electronics (7)

Function:

The pressure in A or B is set by means of the proportional solenoids. The amount of the pressure depends on the current.

With de-energized solenoids (5, 6), the control spool (2) is held in the central position by means of the pressure springs (8). Ports A and B are connected with T so that the hydraulic fluid can flow off to the tank without obstructions.

Ordering Details for Choosing model Number
