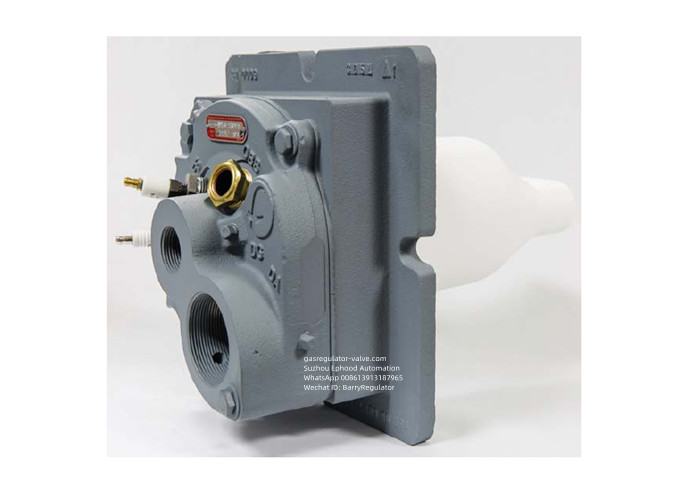

North American 4441 Model Tempest High Velocity Low NOx Gas Burner Use At Gas Burner

North American 4441 Model Tempest High Velocity Low NOx Gas Burner Use At Gas Burner

  • North American 4441 Model Tempest High Velocity Low NOx Gas Burner Use At Gas Burner
North American 4441 Model Tempest High Velocity Low NOx Gas Burner Use At Gas Burner
Product Details:
Place of Origin: Made In China
Brand Name: North American
Model Number: 4441
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiation
Packaging Details: Each set packed in one carton
Delivery Time: 12days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 20sets in 12days
Contact Now
Detailed Product Description
Name: 4441 Model North American Gas Burner Working: Low NOx Gas Burner
Combustion Air: 0.08-10.3 KPa (0.3-41.6"w.c.) Air Pressure, Max 177°C (350°F) Air Flow, Not Burning: 219Nm3/h
Gas Pressure UG: 39.2mbar Flame Length: 660mm

North American Tempest High Velocity Gas Burner



  The 4441 model Tempest has gained acclaim for its high velocity jet action and superior recirculation promoting capabilities.

These two features bring both the quality benefit of close temperature uniformity and the productivity benefi t of safe higher

 heating rates up to 1650°C (3000°F).

  Additionally, a variety of tile material and outlet shape choices provide fl exibility in installation with a “flame fitting” to the shape

of the combustion chamber.



Combustion Air 0.08-10.3 kPa (0.3-41.6"w.c.) air pressure, max
177°C (350°F)
Fuel Natural gas with propane gas versions available in the -1
thru -4-B sizes. Gas pressure varies per size with 4.7 kPa (19"w.c.) is
maximum required at design capacity, for 6.9 KPA (27.7"w.c.)
combustion air pressure, stoich ratio.
Flame Supervision Flame rod or UV detector Consult National Safety Standards and insurance underwriters for specific flame supervision requirements.
Control Excellent performance with all control systems
Air Flow, not burning 219Nm3/h
Gas Pressure UG 39.2mbar



TYPES OF APPLICATIONS

—  Periodic kilns in the ceramics and refractory industries

—  Tunnel kilns in the ceramics and refractory industries

—  Forge furnaces

—  Heat treat furnaces

—  Galvanizing baths

—  Scrap preheaters

—  Carbon baking furnaces

—  Cupolas

—  Pipe coaters

—  Portable refractory dry out

—  Preheat equipment

—  Variety of other applications



PERFORMANCE BENEFITS

—  Low NOx emissions

—  High excess air and excess fuel

—  Direct spark ignition

—  Integral air and gas meters

—  Sturdy cast construction

—  Wide operating limits

—  Range of ignition and flame supervision capabilities

—  Compatible with StepFire or other pulse fired control system.

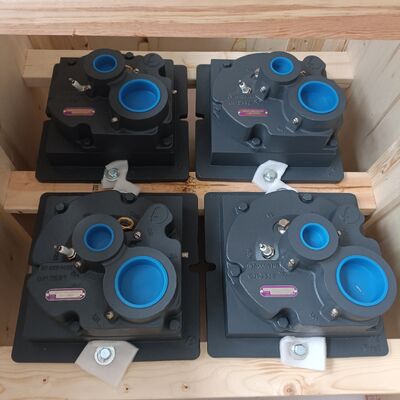

North American 4441 Model Tempest High Velocity Low NOx Gas Burner Use At Gas Burner 0
