|Place of Origin:||Made In Japan|
|Minimum Order Quantity:||Negotiation|
|Packaging Details:||Each set packed in one carton|
|Payment Terms:||T/T, Western Union, MoneyGram|
|Supply Ability:||50sets 6weeks|
|Name:||YOKOGAWA EJX110A Differential Pressure Transmitter||Accuracy:||± 0.04% (0.025% Accuracy Option Available)|
|Measurement Range:||3,600 Psi MWP||Response Time:||90 Ms|
|Primary Variable:||Differential Pressure||Secondary Variable:||Static Pressure|
|Output Signal:||4 To 20 MA DC With Digital Communication||Measurement Span:||0.1 To 5 KPa ,0.07 To 14 MPa (10 To 2000 Psi)|
diff pressure transmitter,
pressure indicator transmitter

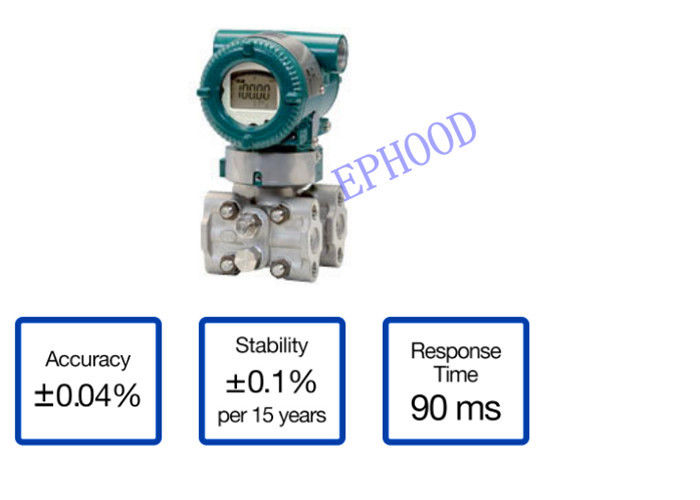

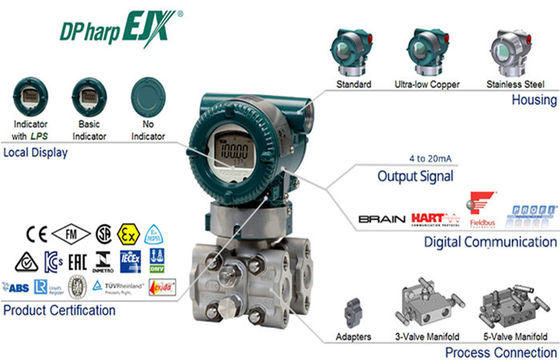

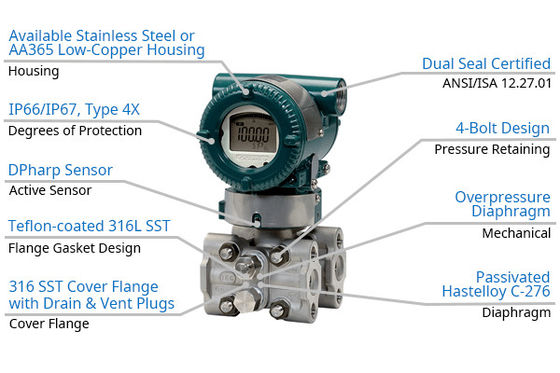

YOKOGAWA EJX110A Differential Pressure Transmitter
The EJX-A series is Yokogawa's premium performance line of DPharp transmitters. Released in 2004, it offers the performance and stability needed in demanding applications. The EJX-A series performance makes it the thoroughbred of the DPharp family of pressure transmitters.
The EJX110A is the traditional-mount Differential Pressure Transmitter in the series.
EJX110A features include:
Yokogawa's DPharp digital sensor offers twice the performance and stability of the competitor's analog sensors. The DPharp uses the latest in IC Chip-style design and manufacturing technology. Analog sensors are based on older design technology. Although analog sensors are good, the modern DPharp sensor out performs them. A Yokogawa transmitter with DPharp digital sensor will give you the consistent, reliable, accurate measurement you need.
Refer to the General Specification sheet located under the 'Downloads' tab for detailed specifications.
|Primary Variable||Differential Pressure|
|Secondary Variable||Static Pressure|
|Primary Variable||±0.04% of Span
±0.025% of Span available
|Secondary Variable||±0.2% of Span|
|Primary Variable||90 msec|
|Secondary Variable||360 msec|
|Long Term Stability|
|Primary Variable||±0.1% of URL per 10 years|
|Primary Variable||±0.03% of URL|
