|Place of Origin:||Made in Italy|
|Minimum Order Quantity:||Negotiation|
|Packaging Details:||Each set packed in one carton|
|Payment Terms:||T/T, Western Union, MoneyGram|
|Supply Ability:||50sets in 7days|
|Name:||Italy Geca Made Gas Filter GF050-TPIO - PMax 6 Bar||Operation Maximum Pressure:||6 Bar|
|Filtration:||50 Micron||Inlet - Outlet Theread:||Gas 1/2" – ¾" 1" – ISO 228|
|Connection DN25:||Sliding Aluminium Flange PN10||GF050-TPIO:||Gas Filter With Test Point In/out|
pressure reducing regulator,
two stage pressure regulator,
italy geca made gas filter

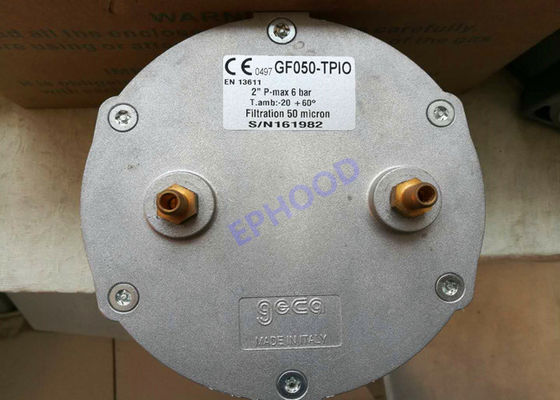

Italy Geca Made Gas Filter GF050-TPIO - PMax 6 Bar
Gas filters designed in accordance with the provisions of DIN.3386 standards can be used for all the types of natural gas, LPG or not corrosive gases. These filters are widely used for protection of control devices, pressure regulators, meters and on systems that requiring an high degree of filtration. All the filter covers are filled with connections for test point both at the filter inlet and outlet.
Operation maximum pressure 6 bar
Working Temperature - 20 °C – + 60 °C
Filtration 50 Micron
Use Non – aggressive gases – Family 1 – 2 – 3 and air
Cartridge element Viledon cartridge
Inlet - Outlet Theread gas 1/2" – ¾" 1" – ISO 228
Connection DN25 - Sliding Aluminium flange PN10
Complete Body Die – Cast Aluminium Gd – AlSi12Cu - EN AB 46100
- Test point – NPT ¼"
- Screw – NPT ¼"
- Peters plug
- DP clogging indicator

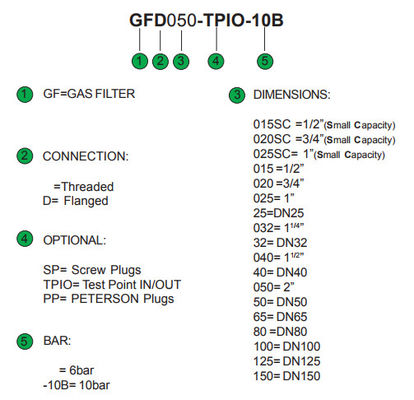

|GF032-TPIO||1 ¼”||Gas filter with test point in/out||6 bar|
|GF040-TPIO||1 ½”||Gas filter with test point in/out||6 bar|
|GF050-TPIO||2”||Gas filter with test point in/out||6 bar|
|GFD32-TPIO||DN32||Gas filter with test point in/out||6 bar|
|GFD40-TPIO||DN40||Gas filter with test point in/out||6 bar|
|GFD50-TPIO||DN50||Gas filter with test point in/out||6 bar|

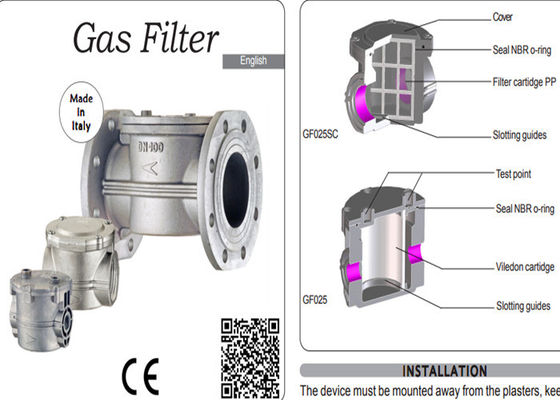

The device must be mounted away from the plasters, keeping a distance from the cover to allow the maintenance operations. Use the tightening torques specified in the standard EN1361, not by leveraging on the body.
