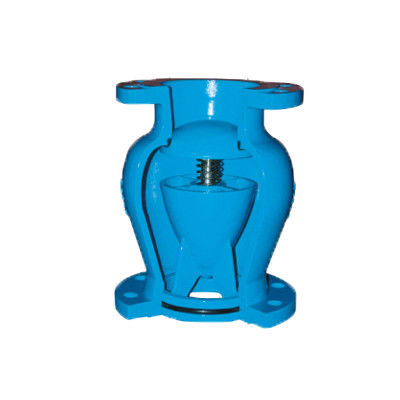

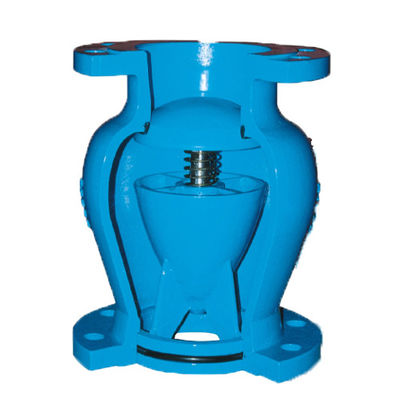

Silence Lift Stainless Steel Check Valve Resilient Seated WCB Body Material

Silence Lift Stainless Steel Check Valve Resilient Seated WCB Body Material

  • Silence Lift Stainless Steel Check Valve Resilient Seated WCB Body Material
  • Silence Lift Stainless Steel Check Valve Resilient Seated WCB Body Material
Silence Lift Stainless Steel Check Valve Resilient Seated WCB Body Material
Product Details:
Place of Origin: China
Brand Name: sufa
Certification: (DNV)ISO9001,(DNV)ISO14001,CE0035
Model Number: 50~1000SH44X-10/16Q
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 50~500/SET
Packaging Details: Wooden box, ply-wood box, carton box, pallet
Delivery Time: within 8-12 working days upon receipt of payment
Payment Terms: T/T, Western Union, L/C, MoneyGram
Supply Ability: 500 SETS/MONTH
Contact Now
Detailed Product Description
Model: 50-350JH42X-16Q Size: DN50-DN600
Pressure: 1.6-16mpa Temperature: -29-425
Valve Body Material: WCB Applicable Medium: Water And Oil Vapor, Etc
High Light:

ss swing check valve

,

316 ss check valve

Guaranteed performance0 General;
o The silence resilient seated check valve is applied to the vertical pipelines in which medium flow run supwards and the back-wards flowing is effectively stopped. It could be widely used in water-supply system and drain system and it works silence.
Professional design:
o The inner cavity of valve is designed as streamline shape ,which can effectively stop the turbulence.
o The spherical surface is introduced to form the front of disc and cone contact for the seating couple; these structures will extremely the shock force of medium and decrease the resistance coefficient of flow.O Thin shell structures is employed when design the diversion component to ensure the laminar flow and greatly drop the weight.
o The reasonable open height and cavity space enable the obtaining of maximum area of flow section.
O It can avoid occurring of the air chamber; the valve parameter Cv is improved
Excellent proof corrosion characteristics:
O Internal and external epoxy resin coating.
Reliable hygiene principles:
o epoxy resin and rubber comply with hygiene standardGB/T17219-1998.
o The trim, such as disc, spring, etc., are made of stainless steel.
Suitable application:
OWater-supply system ,drain system and heating system



DN50-DN1000 SUFA Brand Stainless Steel Silence Lift Check Valve



Design standard: AWWA A508
Flange: GB/T17241.6-1998 neq DIN2501
Face to face dimensions: enterprise standard
Testing standard: JB/T 9092-1999
Working temperature: NBR <80C,EPDM<120C,FPM <160C



 Technical characteristics :

Nominal diameter DN50-DN350
Nominal pressure 1.0Mpa 1.6Mpa
Strength testing 1.5Mpa 2.4Mpa
Functional testing 1.1MPa 1.76Mpa

1Main components and their materials:

NO. name material
1



Body ,Line

QT500-7

GGG50 with internal and

External epoxy resin coating

2

Disc

GGF50 or casting steel

3

Guiding stem,spring

Cr17Ni2,1Cr18Ni9TI

1Cr17Ni12Mo2Ti Stainless steel min.13%Cr

4

Guiding bushing

ZCuAl10Fe3

Bronze CuAl10Fe3

5

flange washer,O-Ring

NBR, EPDM or FBM



Technical characteristics :

Silence Lift Stainless Steel Check Valve Resilient Seated WCB Body Material 0

Silence Lift Stainless Steel Check Valve Resilient Seated WCB Body Material 1

Testing Conditions

Silence Lift Stainless Steel Check Valve Resilient Seated WCB Body Material 2

The corner of the inventory

Silence Lift Stainless Steel Check Valve Resilient Seated WCB Body Material 3

Installation

Silence Lift Stainless Steel Check Valve Resilient Seated WCB Body Material 4
