Manual Cast Iron Butterfly Valve Wafer Pattern With Flexible Flange End

Manual Cast Iron Butterfly Valve Wafer Pattern With Flexible Flange End
Manual Cast Iron Butterfly Valve Wafer Pattern With Flexible Flange End

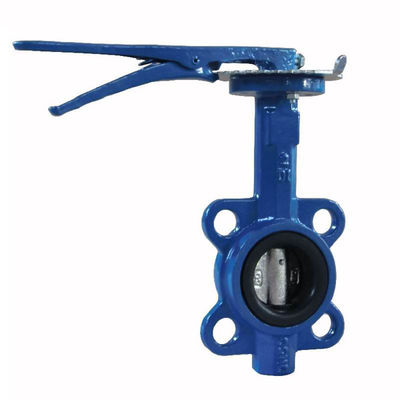

Large Image :  Manual Cast Iron Butterfly Valve Wafer Pattern With Flexible Flange End

Product Details:
Place of Origin: China
Brand Name: SUFA
Certification: (DNV)ISO9001,(DNV)ISO14001,CE0035
Model Number: D371X
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 50~500/set
Packaging Details: Wooden box, ply-wood box, carton box, pallet
Delivery Time: within 8-12 working days upon receipt of payment
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 500 sets/month
Contact Now

Manual Cast Iron Butterfly Valve Wafer Pattern With Flexible Flange End

Description
Size: DN50~DN 600 Nominal Pressure: PN10/16, 150-300LB
Valve Body Material: Valve Body Material] : Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel, Etc Suitable Media: Chemicals, Air, Water, Steam, Oil, Acids, Salts Ect
Name: Through Shaft With Pin Butterfly Valve Working Temperature: -30。c - 135。C
Highlight:

wafer style butterfly valve

,

butterfly control valve

Through shaft with pin butterfly valve

Size DN50-DN1000
Body:Cast Iron,Ductile Iron,Carbon Steel,Stainless Steel
Seat:EPDM,NBR,PTFE,Viton,Neoprene,Hypalon,Silion
Shaft: Stainless Steel 416,316,304
Disc:Ductile Iron+Ni,CF8,CF8+PTFE,CF8M,CF8M+PTFE,Bronze
Bushing:PTFE
O-ring:NBR EPDM



Specifications:

Size DN50-DN1000
Nominal Pressure PN10/16, 150-300LB
Working Temperature -30.c - 135.C
Suitable Media Chemicals, air, water, steam, oil, acids, salts ect












Standards:

Design standard API609, ANSI16.34, JISB2064, GB T12238
Face to Face API609, DIN3202, ISO5752, BS5155
Flange drilling DIN2501 PN10/16, ANSI 125/150/300, BS4504, JIS10K
Top Flange ISO5211
Test Inspection API598












Material:

Body Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel
Disc Ductile Iron, Carbon Steel, Stainless Steel
Stem Stainless Steel
Seat EPDM, NBR, PTFE, VITON, HYPALON
O ring EPDM, NBR












Manual Cast Iron Butterfly Valve Wafer Pattern With Flexible Flange End 0

Tag:

wafer style butterfly valve,

resilient seated butterfly valves,

butterfly control valve
