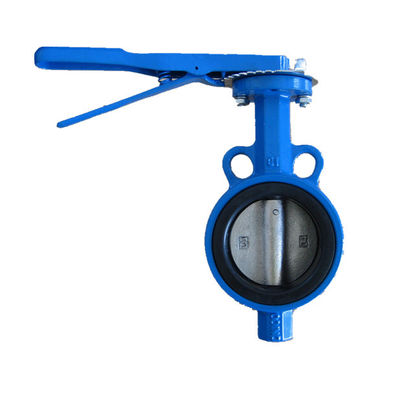

Two Hole Wafer Water Butterfly Valve Durable High Temperature Resistance

Two Hole Wafer Water Butterfly Valve Durable High Temperature Resistance

  • Two Hole Wafer Water Butterfly Valve Durable High Temperature Resistance
Two Hole Wafer Water Butterfly Valve Durable High Temperature Resistance
Product Details:
Place of Origin: China
Brand Name: SUFA
Certification: (DNV)ISO9001,(DNV)ISO14001,CE0035
Model Number: D371X
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 50~500/set
Packaging Details: Wooden box, ply-wood box, carton box, pallet
Delivery Time: within 8-12 working days upon receipt of payment
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 500 sets/month
Contact Now
Detailed Product Description
Size: DN50~DN 300 Nominal Pressure: PN10/16, 150-300LB
Valve Body Material: Valve Body Material] : Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel, Etc Suitable Media: Chemicals, Air, Water, Steam, Oil, Acids, Salts Ect
Name: Wafer Butterfly Valve(two Hole) Working Temperature: -30。c - 135。C
Highlight:

resilient seated butterfly valves

,

wafer style butterfly valve

wafer butterfly valve(two hole)

Size DN50-DN300
Body:Cast Iron,Ductile Iron,Carbon Steel,Stainless Steel
Seat:EPDM,NBR,PTFE,Viton,Neoprene,Hypalon,Silion
Shaft: Stainless Steel 416,316,304
Disc:Ductile Iron+Ni,CF8,CF8+PTFE,CF8M,CF8M+PTFE,Bronze
Bushing:PTFE
O-ring:NBR EPDM



Specifications:

Size DN50-DN300
Nominal Pressure PN10/16, 150-300LB
Working Temperature -30.c - 135.C
Suitable Media Chemicals, air, water, steam, oil, acids, salts ect












Standards:

Design standard API609, ANSI16.34, JISB2064, GB T12238
Face to Face API609, DIN3202, ISO5752, BS5155
Flange drilling DIN2501 PN10/16, ANSI 125/150/300, BS4504, JIS10K
Top Flange ISO5211
Test Inspection API598












Material:

Body Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel
Disc Ductile Iron, Carbon Steel, Stainless Steel
Stem Stainless Steel
Seat EPDM, NBR, PTFE, VITON, HYPALON
O ring EPDM, NBR












Two Hole Wafer Water Butterfly Valve Durable High Temperature Resistance 0
