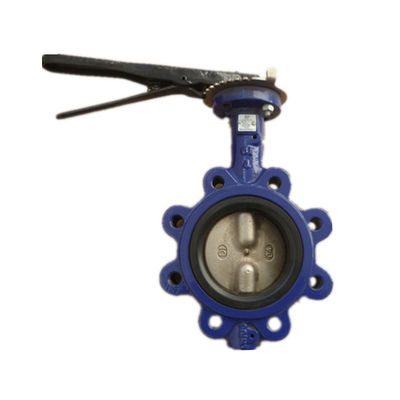

Two Shaft Butterfly Valve Flange Type Ptfe U Type For Regulating Water Pressure

Two Shaft Butterfly Valve Flange Type Ptfe U Type For Regulating Water Pressure

  • Two Shaft Butterfly Valve Flange Type Ptfe U Type For Regulating Water Pressure
Two Shaft Butterfly Valve Flange Type Ptfe U Type For Regulating Water Pressure
Product Details:
Place of Origin: China
Brand Name: SUFA
Certification: (DNV)ISO9001,(DNV)ISO14001,CE0035
Model Number: D371X
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 50~500/set
Packaging Details: Wooden box, ply-wood box, carton box, pallet
Delivery Time: within 8-12 working days upon receipt of payment
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 500 sets/month
Contact Now
Detailed Product Description
Size: DN50~DN 600 Nominal Pressure: PN10/16, 150-300LB
Valve Body Material: Valve Body Material] : Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel, Etc Suitable Media: Chemicals, Air, Water, Steam, Oil, Acids, Salts Ect
Name: Lug Type Two Shaft Butterfly Valve Working Temperature: -30。c - 135。C
High Light:

resilient seated butterfly valves

,

wafer style butterfly valve

lug type two shaft butterfly valve

Type: Lugged
Face to face: API509,BS5155,DIN3202,ISO5752
Flange:DIN,BS,UNI,ISO,ANSI,AS,JIS
Size DN50--DN600
Normal Pressure PN10/PN16,150-300 Lb
Working Temperature -15c---30c
Suitable Medium Chemicals,air,water,steam,oil,
acids,salts,etc



Specifications:

Size DN50-DN600
Nominal Pressure PN10/16, 150-300LB
Working Temperature -30.c - 135.C
Suitable Media Chemicals, air, water, steam, oil, acids, salts ect












Standards:

Design standard API609, ANSI16.34, JISB2064, GB T12238
Face to Face API609, DIN3202, ISO5752, BS5155
Flange drilling DIN2501 PN10/16, ANSI 125/150/300, BS4504, JIS10K
Top Flange ISO5211
Test Inspection API598












Material:

Body Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel
Disc Ductile Iron, Carbon Steel, Stainless Steel
Stem Stainless Steel
Seat EPDM, NBR, PTFE, VITON, HYPALON
O ring EPDM, NBR












Two Shaft Butterfly Valve Flange Type Ptfe U Type For Regulating Water Pressure 0
