Place of Origin: | China |
Brand Name: | SUFA |
Certification: | (DNV)ISO9001,(DNV)ISO14001,CE0035 |
Model Number: | HQ14X,H42X,H41X,H44X |
Minimum Order Quantity: | 1 set |
---|---|
Price: | USD 50~500/set |
Packaging Details: | Wooden box, ply-wood box, carton box, pallet |
Delivery Time: | within 8-12 working days upon receipt of payment |
Payment Terms: | T/T, Western Union, MoneyGram, L/C |
Supply Ability: | 500 sets/month |
Size: | DN 40~DN 800 | Pressure: | PN10/PN16 |
---|---|---|---|
Face To Face: | EN558-1 | Flange Connection:: | EN1092 PN10/16 |
Temperature: | -30℃- 135℃ | Name: | Swing Check Valve (BS5153) |
Highlight: | ss swing check valve,316 ss check valve |

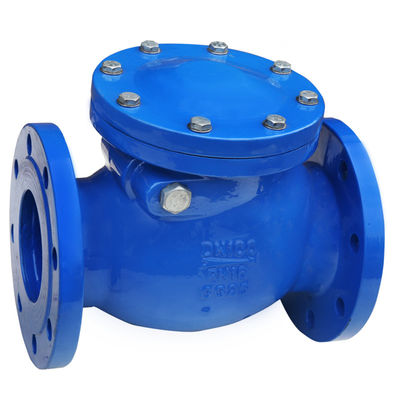

Swing Check valve (BS5153)
Swing Check Valve (BS5153)
Confirm to BS5153 PN16
Flange Drilled Conforms to BS4504
Face to face Dimensions Conform to Series 2 of BS5153
NO. | PART | MATERIAL | STANDARD |
1 | Bolts | steel | BS970 73A |
2 | Identification Plate | Aluminium | |
3 | Bonnet | Cast Iron | BS1452 Cr.180 |
4 | Body Gasket | Graphite | BS2494 Type W |
5 | Stem | Brass | BS2874 CZ12 |
6 | Nuts | Steel | BS970 43A |
7 | Side Plug | Brass | BS2874 CZ12 |
8 | Gasket | Fiber | |
9 | Hanger Pin | Brass | BS2874 CZ12 |
10 | Hanger | Ductile Iron | BS2789 Gr.420-12 |
11 | Disc | Cast Iron | BS1452 Cr.180 |
12 | Disc Ring | Cast Bronze | BS1400 LG2 |
13 | Washer | steel | BS970 43A |
14 | Split Pin | Stainless Steel | BS970 420S37 |
15 | Body | Cast Iron | BS1452 Cr.180 |
16 | Stud Bolt | Steel | BS970 43A |
