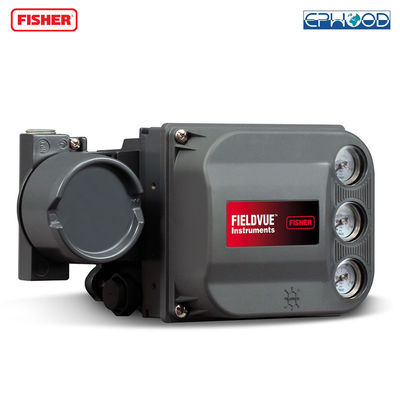

Fisher DVC6200 Valve Positioner Electric Input Digital Valve Positioner 145 Psi Fisher Control Valve Positioner

Fisher FIELDVUE DVC6200 Digital Valve Controller Valve Positioner

Fisher FIELDVUE DVC6200 instrument allows for your operation to run closer to setpoint, improving product quality with more accurate control. Using FIELDVUE Performance Diagnostics, valve operation is monitored online to evaluate performance and reliability.

Features

• The high performance, linkage-less feedback system eliminates physical contact, which eliminates wearing on parts.
• The fully encapsulated electronics resist the effects of vibration, temperature, and corrosive atmospheres.
• Provides quick responsiveness to large step changes and precise control for small setpoint changes.
• The DVC6200 is a HART communicating device, so information can be accessed anywhere along the loop. This flexibility can reduce exposure to hazardous environments and make it easier to evaluate valves in hard to reach locations.
• The modular design allows critical working components to be replaced without removing field wiring or pneumatic tubing.
• When installed in an integrated control system, significant hardware and installation cost savings can be achieved.
• The self-diagnostic capability provides valve performance and health evaluation.
• Digital communication provides easy access to the condition of the valve.

Fisher DVC6200 provides one platform for any pneumatic actuator application. The DVC6200 can be installed on sliding-stem, rotary, single- or double-acting actuators.

The advantages of FIELDVUE instruments include:

• Improved control - Two-way digital communications give you current valve conditions. You can rely on real-time information to make sound process management decisions.
• Enhanced safety - You can check instrument and valve operation and keep the process running smoothly and safely from a remote location. Your exposure to hazardous environments is minimized and you can avoid having to access hard-to-reach valve locations.
• Environmental protection - You can avoid additional field wiring by connecting a leak detector or limit switch to the auxiliary terminals in the FIELDVUE digital valve controller. In this way, the instrument will issue an alert if limits are exceeded.
• Built to survive - Field-tough FIELDVUE digital valve controllers have fully encapsulated printed wiring boards that resist the effects of vibration. temperature, and corrosive atmospheres. A separate weather-tight field wiring terminal box isolates field-wiring connections from other areas of the instrument.
• Increased uptime - With the self-diagnostic capability of the FIELDVUE digital valve controller, you can answer questions about valve performance, without pulling the valve from the line.
• Faster commissioning - The two-way communication capability allows you to quick commission loops by remotely identifying each instrument, verifying its calibration, reviewing stored maintenance notes, and more.

(a) Temperature range is -40 to +85°c (option EXTEMP -52 °c )
(b) Point to point signal 4-20mA or Foundation Fieldbus
(c) Low bleed relay option (std 14SCFH, low bleed 2SCFH at 20psi)
(d) I/O package: Digital Valve Controller
(e) Tiers: AC, HC/FD, AD, PD (Std)
(f) Max supply 145 Psig
(g) Pneumatic & Conduit connections, 1/4"NPT & 1/2"NPT, M20, PG13.5
(h) Includes CE mark for Europe, Ex class acc to ATEX EEx ia/EEx d/EEx n, IEC Intrinsically safe/Flame proof/type N, FM Explosion proof/Intrinsically safe
(i) Magnetical linkageless feedback
(j) Mounting kits for Fisher and NAMUR VDI/VDE
(k) Travel up to 24" (606mm) sliding & 90° rotary
(l) Body mtrl Aluminium and Stainless

Specifications
