Suzhou Ephood Automation Equipment Co., Ltd.
Gas Regulator,Pressure Transmitter,SUFA Water Valve
 |
| Place of Origin: | Made In Germany |
| Brand Name: | LEDING |
| Model Number: | 1/2“ |
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Packing in one carton,about 3kg. |
| Delivery Time: | 3work-days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 10sets in 3days |
| Name: | Low Temperature Stainless Steel Solenoid Valve | End Size: | 1/2”NPT |
|---|---|---|---|
| Response Sensitivity: | ≤ 0.05% | Nominal Flow At A Valve Pressure Differential: | 25 L/min |
| Power Supply Voltage: | 24 VDC | Material: | Stainless Steel |
| Highlight: | rexroth pneumatic solenoid valve,rexroth hydraulic solenoid valves |
||

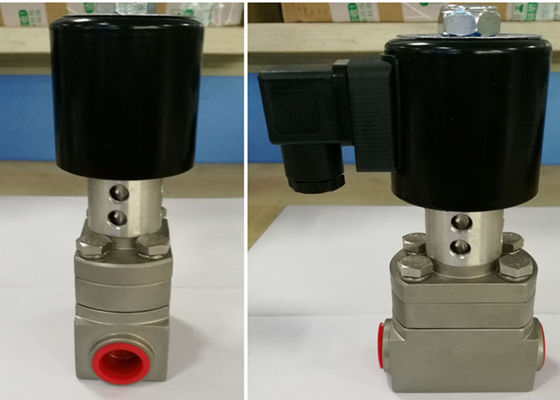

1/2" Low Temperature Stainless Steel Solenoid Valve For Cryogenic Equipment
Range of use:metallurgical Industry,petrochemical industry,power equipment,cryogenic equipment, Liquid nitrogen,cooling equipment and so on
Thechnique parameter:
The principle structure:step piston type
Size range:DN10~200
The ambient Temperature:-10~+50°C,-30~+85°C,-50~+100°C
Control model:normally open,normal close
Woorking voltage:AC380V,AC220V,AC127V,AC26V,AC24V
DC220V,DC110V,DC36V,DC24V,DC12V
Medium:water,gas,oil etc.
Medium temperature: >-200°C,>-60°C,>-40°C
The pressure:0.6Mpa,1.6Mpa,2.5Mpa,4.0Mpa,5.0Mpa,7.0Mpa,10Mpa
Connection:cryogenic fluid
Wiring:plastic box plug,Iron cover of lead
Body material : WCB Stainless steel(304.316.316L)
Specification parameter and fixing dimension
|
Specification model |
DN normal diameter |
Inside thread correction | Flange connection | |||||
| G thread | L |
H (normal) |
H (explosion-proof) |
L |
H (normal) |
H (explosion-proof) |
||
| DN1 | 1 | G1/8 | 39 | 111 | 125 | |||
| DN2 | 2 | G1/8 G1/4 | 39 | 111 | 125 | |||
| DN3 | 3 | G1/4 | 39 | 111 | 125 | |||
| DN4 | 4 | G1/4 | 43 | 111 | 125 | |||
| DN5 | 5 | G1/4 | 43 | 131 | 145 | |||
| DN6 | 6 | G1/4 | 43 | 131 | 145 | |||
| DN7 | 7 | G1/4 | 43 | 131 | 145 | |||
| DN8 | 8 | G1/4 | 43 | 131 | 145 | |||
| DN10 | 10 | G3/8 | 72 | 168 | 179 | |||
| DN15 | 15 | G1/2 | 72 | 168 | 179 | 98 | 195 | 208 |
| DN20 | 20 | G3/4 | 85 | 178 | 216 | 110 | 208 | 235 |
| DN25 | 25 | G1 | 97 | 192 | 216 | 118 | 232 | 247 |
| DN32 | 32 | G11/4 | 117 | 203 | 228 | 145 | 253 | 268 |
| DN40 | 40 | G11/2 | 128 | 219 | 237 | 155 | 262 | 283 |
| DN50 | 50 | G2 | 149 | 236 | 252 | 173 | 283 | 295 |
| DN65 | 65 | 215 | 328 | 353 | ||||
| DN80 | 80 | 228 | 352 | 377 | ||||
| DN100 | 100 | 278 | 388 | 413 | ||||
| DN125 | 125 | 400 | 480 | 505 | ||||
| DN150 | 150 | 485 | 580 | 615 | ||||
| DN200 | 200 | 600 | 650 | 675 | ||||
