| Place of Origin: | Made In USA |
| Brand Name: | Elster American Meter |
| Model Number: | 1803B2 |
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | 6sets packed in one carton ,each carton size is 56*39*28cm,14.5kg each one carton. |
| Delivery Time: | 3-8 work-days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 200sets Every Month |
| Name: | American Meter Company 1800B2 Gas Pressure Regulator | End Connetion: | 3/4",1" NPT |
|---|---|---|---|
| Inlet Pressure: | 60psi@1/4" Orifice | Spring Range: | 3.5” - 10.5” W.c. |
| Orifice Size: | 3/8" | Application: | Home Use,small Commercial And Industrial |
| Valve Body Material: | Cast Iron | Orifice Material: | Aluminum |
| High Light: | adjustable gas regulator,two stage pressure regulator |
||

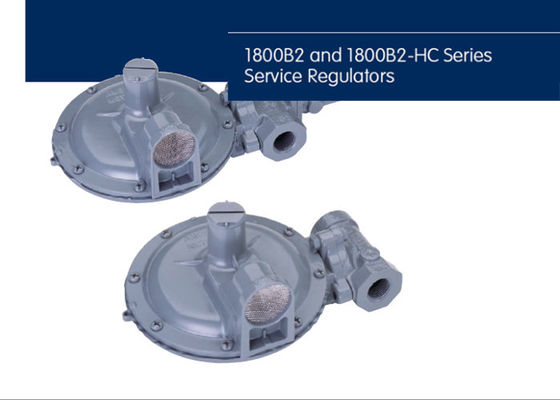

Elster American Meter Series 1800B2 Gas Pressure Regulators
The Elster American Meter Series 1800B2 pressure regulators are designed for natural gas applications and feature a compact, lightweight design for fast, easy installation. Interchangeable orifices and springs provide a wide range of outlet pressures and flow rates. Outlet pressures between 3.5" W.C. and 2 PSIG are available. Operating temperature range is -20°F to 150°F (-30°C to 65°C). Maximum flow rate is 2500 SCFH (70.8 m³/h).
The 1800B2 Series pressure regulators are designed to control natural gas,air, nitrogen, carbon dioxide, propane vapor, and other non-corrosive gases in residential, light commercial, and small industrial applications.
Features
• Variety of interchangeable orifices and spring ranges
• 90 Degree (Right Angle), 180 Degree(Straight-Flow), or Offset Valve Body
• Wide range of valve body connection sizes
Orifice and Maximum Inlet Pressure
| Pressure | Size |
| 125 psi | 1/8” |
| 125 psi | 3/16” |
| 60 psi | 1/4” |
| 40 psi | 5/16” |
| 30 psi | 3/8” |
| 20 psi | 1/2” |
Regulator Spring Chart
| Outlet Pressure Ranges | Spring Color |
| 3.5” - 10.5” w.c. | Silver |
| 6.0” - 8.0” w.c. | Blue |
| 6.0” - 14.0” w.c. | Green |
| 12.0”-28.0” w.c. / 3-7kpa | Red |
| 1.0 - 2.0 psi | Black |
