Suzhou Ephood Automation Equipment Co., Ltd.
Gas Regulator,Pressure Transmitter,SUFA Water Valve
 |
| Place of Origin: | Made In China |
| Brand Name: | YBH |
| Model Number: | Tube Size 6mm*8mm |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Packing in one carton,0.3kg each one piece. |
| Delivery Time: | 20PCS Pinch valve,in 3work-days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100PCS in 12days |
| Name: | Low Pressure Solenoid Pinch Valve | Size: | I.D 6mm, O.D8mm |
|---|---|---|---|
| Response Time: | 0.5Second | Pressure: | 15PSI |
| Voltage: | 12VDC, 24 VDC | Material: | Alloy |
| Highlight: | rexroth pneumatic solenoid valve,rexroth hydraulic solenoid valves |
||

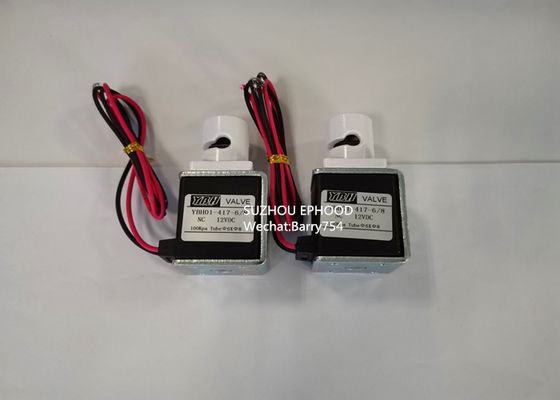

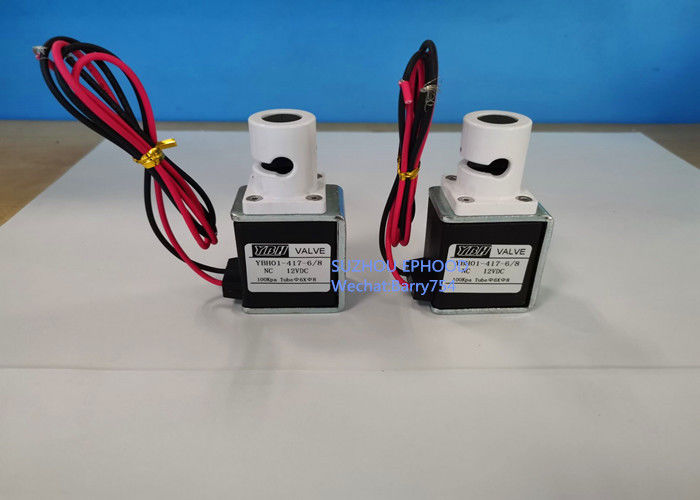

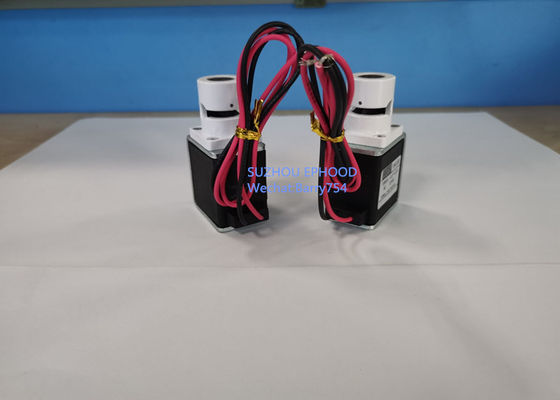

Low Pressure Solenoid Pinch Valve 12VDC/24VDC Tube Size 6mm*8mm
Product details
Solenoid Pinch Valve work by electromagnetic solenoid , squeezing or loosen the tube to Open and Close ,control the fluid flow.Because the fluid only through from the tube, so other part of valve will not in touch with chemical corrosive fluid. With other Solenoid valve,Pinch valve work more economic and no cross contamination.
Range of Application & Market Prospect
Pinch valve suitable for chemical industry, medical, environmental protection, mainly used in biochemical, blood, urine, water quality analysis and emissions of waste liquid.
With the development of modern micro fluid industry, Pinch Valve's usage is becoming more and more widely.
| Type of Pinch Valve | Two-way NC, Two-way NO,Three-way(one way NC,one way NO) |
| Voltage | 24VDC,12VDC |
| Tube Size(ID*OD) | 3mm*5mm,3mm*6mm,6mm*8mm and so on |
| Pressure | 15 psi |
| Response Time | 0.5Second |
| Operating Temperature | Room Temperature,If High Temperature,please contact Barry |
YBH Model Pinch Valve Long Life Cycle
Each Solenoid Pinch Valve is guaranteed to have perfect close pressure when leaving the factory.Tube will not stick together even after long time closing as they can promise to be used constantly 500,000 times on and off.
No resistance to flow
The tubing is positioned at the bottom of valve base fixedly even opening one port on the base. On opening condition, the valve produces no resistance to the flow rate.
Various tube sizes and materials available
I.D1.2mm*O.D3.6mm
I.D3mm*O.D6mm
I.D5mm*O.D7mm
I.D6mm*O.D8mm
I.D6mm*O.D9mm
I.D9mm*O.D12mm.
Please contact us if you have special needs of the tube material.
Other advantage of Pinch Valve
Enable fast, easy removal and replace
Reliable
No-clog
Contact Person: Mr. Barry Wang
Tel: +86-1391-318-7965
Fax: 86-512-66079692
