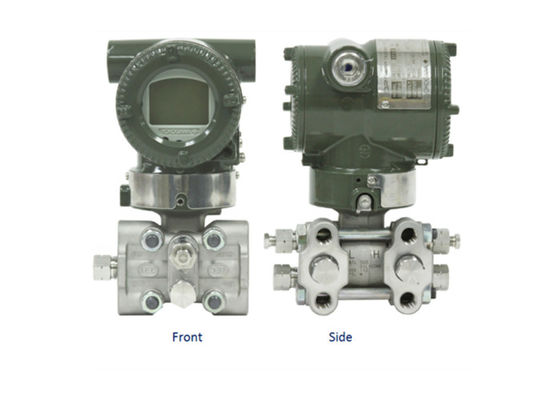

High Performance EJA110E Differential Pressure Transmitter From YOKOGAWA

High Performance EJA110E Differential Pressure Transmitter From YOKOGAWA

  • High Performance EJA110E Differential Pressure Transmitter From YOKOGAWA
  • High Performance EJA110E Differential Pressure Transmitter From YOKOGAWA
High Performance EJA110E Differential Pressure Transmitter From YOKOGAWA
Product Details:
Place of Origin: Made In Japan
Brand Name: YOKOGAWA
Model Number: EJA110E
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Each set packed in one carton
Delivery Time: 6-8weeks
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 50sets 6weeks
Contact Now
Detailed Product Description
Name: YOKOGAWA EJA110E Differential Pressure Transmitter Accuracy: 0.055% Accuracy (0.04% Accuracy Optional)
Measurement Range: MWP 2,300 Psi (MWP 3,600 Psi Option) Response Time: 90 Ms
Primary Variable: Differential Pressure Secondary Variable: Static Pressure
Output Signal: 4 To 20 MA DC With Digital Communication Measurement Span: 5 To 500 KPa (20 To 2000 InH2O)
High Light:

0.055% Accuracy Differential Pressure Transmitter

,

YOKOGAWA Differential Pressure Transmitter

YOKOGAWA EJA110E Differential Pressure Transmitter

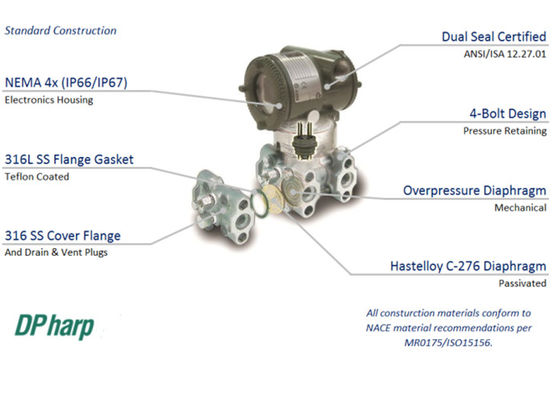

The high performance differential pressure transmitter EJA110E features single crystal silicon resonant sensor

and is suitable to measure liquid, gas, or steam flow as well as liquid level, density and pressure. EJA110E outputs

a 4 to 20 mA DC signal corresponding to the measured differential pressure.

The accurate of EJA110E Model Differential Pressure Transmitter and stable sensor can also measure the static

pressure which can be shown on the integral indicator or remotely monitored via BRAIN or HART communications.

Other key features include quick response, remote set-up using communications and self-diagnostics. FOUNDATION

Fieldbus, PROFIBUS PA and 1 to 5 V DC with HART (Low Power) protocol types are also available. All EJA-E series

models in their standard configuration, with the exception of the Fieldbus, PROFIBUS and Low Power types, are

certified as complying with SIL 2 for safety requirement.

EJA110E Specification OverviewHigh Performance EJA110E Differential Pressure Transmitter From YOKOGAWA 0

Refer to the General Specification sheet located under the 'Downloads' tab for detailed specifications.



Measurement Types
Primary Variable Differential Pressure
Secondary Variable Static Pressure
Reference Accuracy
Primary Variable ±0.055% of Span
±0.5% of Span available
Secondary Variable ±0.2% of Span
Response Time
Primary Variable 90 msec
Secondary Variable 360 msec
Long Term Stability
Primary Variable ±0.1% of URL per 10 years
Over-pressure effect
Primary Variable ±0.03% of URL
Rangeability

Primary Variable

200:1
