Gas Regulator,Pressure Transmitter,SUFA Water Valve
 |
| Place of Origin: | China |
| Brand Name: | SUFA |
| Certification: | (DNV)ISO9001,(DNV)ISO14001,CE0035 |
| Model Number: | J41H |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD 50~500/set |
| Packaging Details: | Wooden box, ply-wood box, carton box, pallet |
| Delivery Time: | within 8-12 working days upon receipt of payment |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 500 set/month |
| SIZE: | DN10-DN200 | PRSSURE: | PN1.6～16MPa |
|---|---|---|---|
| TEMPERATURE: | -29～570℃ | Material Of Body: | WCB |
| Applicable Media :: | Water, Oil, Steam And Other Non-corrosive Media | ||
| High Light: | threaded globe valve,stainless steel flanged globe valve |
||
Product use
Applicable to Class1500-29 ~ ~ 3500 lb, working temperature 570 ℃ under various working conditions such as petroleum, chemical industry, power plant piping cut off or connect medium.Applicable medium: water, oil, steam and other non-corrosive medium.
| J41H model PN16~PN160 Main performance parameters of steel globe valve | ||||||||
| model | PN | Working pressure/ MPa | Temperature/ ℃ | Applicable medium | ||||
| J41H-16C~160C | 16~160 | 1.6~16.0 | ≤425 | water, oil, steam | ||||
|
Product component material J41H model PN16~PN160 Steel globe valve parts material |
||||||||
| Model | material | |||||||
| BODY AND BONNET | stem | Sealing face | Packing | |||||
| J41H-16C~160C | WCB | Chromium stainless steel | Surfacing iron base alloys | Asbestos, graphite, flexible graphite,PTEF | ||||

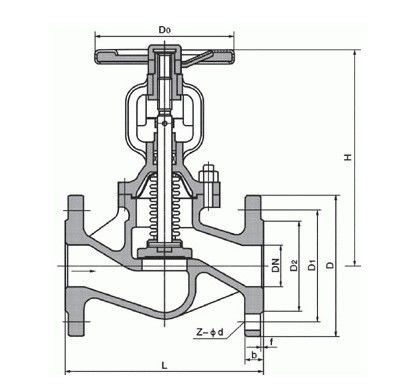

| J41H PN16 Steel globe valve product shape and structure size (mm) | |||||||||
| DN | L | D | D1 | D2 | b | z×ød | H | D0 | weight/KG |
| 10 | 130 | 90 | 60 | 40 | 14 | 4×ø14 | 198 | 120 | 5 |
| 15 | 130 | 95 | 65 | 45 | 14 | 4×ø14 | 200 | 120 | 5.5 |
| 20 | 150 | 105 | 75 | 55 | 14 | 4×ø14 | 243 | 140 | 7.3 |
| 25 | 160 | 115 | 85 | 65 | 14 | 4×ø14 | 253 | 160 | 8 |
| 32 | 180 | 135 | 100 | 78 | 15 | 4×ø18 | 280 | 160 | 12 |
| 40 | 200 | 145 | 110 | 85 | 16 | 4×ø18 | 312 | 200 | 16 |
| 50 | 230 | 160 | 125 | 100 | 16 | 4×ø18 | 321 | 200 | 16 |
| 65 | 290 | 180 | 145 | 120 | 18 | 4×ø18 | 325 | 240 | 22 |
| 80 | 310 | 195 | 160 | 135 | 20 | 4×ø18 | 355 | 240 | 31 |
| 100 | 350 | 215 | 180 | 155 | 20 | 4×ø18 | 415 | 280 | 45 |
| 125 | 400 | 245 | 210 | 185 | 22 | 4×ø18 | 460 | 320 | 80 |
| 150 | 480 | 280 | 240 | 210 | 24 | 8×ø23 | 510 | 360 | 97 |
| 200 | 600 | 335 | 295 | 265 | 26 | 12×ø23 | 590 | 360 | 169 |
| J41H PN25 Steel globe valve product shape and structure size(mm) | |||||||||
| DN | L | D | D1 | D2 | b | z×ød | H | D0 | weight/KG |
| 10 | 130 | 90 | 60 | 40 | 16 | 4×ø14 | 198 | 120 | 4.9 |
| 15 | 130 | 95 | 65 | 45 | 16 | 4×ø14 | 233 | 120 | 5.5 |
| 20 | 150 | 105 | 75 | 55 | 16 | 4×ø14 | 275 | 140 | 7 |
| 25 | 160 | 115 | 85 | 65 | 16 | 4×ø14 | 285 | 160 | 7.5 |
| 32 | 180 | 135 | 100 | 78 | 18 | 4×ø18 | 302 | 180 | 8.5 |
| 40 | 200 | 145 | 110 | 85 | 18 | 4×ø18 | 355 | 200 | 12.5 |
| 50 | 230 | 160 | 125 | 100 | 20 | 4×ø18 | 362 | 240 | 16 |
| 65 | 290 | 180 | 145 | 120 | 22 | 8×ø18 | 325 | 280 | 25 |
| 80 | 310 | 195 | 160 | 135 | 22 | 8×ø18 | 369 | 280 | 30 |
| 100 | 350 | 230 | 190 | 165 | 24 | 8×ø23 | 370 | 300 | 35 |
| 125 | 400 | 270 | 220 | 188 | 28 | 8×ø18 | 558 | 400 | 89 |
| 150 | 480 | 300 | 250 | 218 | 30 | 8×ø23 | 611 | 400 | 98 |
| 200 | 600 | 360 | 310 | 278 | 34 | 12×ø25 | 721 | 400 | 170 |
| J41H PN40 Steel globe valve product shape and structure size (mm) | |||||||||
| DN | L | D | D1 | D2 | b | z×ød | H | D0 | weight/KG |
| 10 | 130 | 90 | 60 | 40 | 16 | 4×ø14 | 198 | 120 | 4.5 |
| 15 | 130 | 95 | 65 | 45 | 16 | 4×ø14 | 233 | 120 | 5 |
| 20 | 150 | 105 | 75 | 55 | 16 | 4×ø14 | 275 | 140 | 7 |
| 25 | 160 | 115 | 85 | 65 | 16 | 4×ø14 | 285 | 160 | 9 |
| 32 | 180 | 135 | 100 | 78 | 18 | 4×ø18 | 302 | 160 | 12 |
| 40 | 200 | 145 | 110 | 85 | 18 | 4×ø18 | 355 | 200 | 17 |
| 50 | 230 | 160 | 125 | 100 | 20 | 4×ø18 | 373 | 240 | 24 |
| 65 | 290 | 180 | 145 | 120 | 22 | 8×ø18 | 408 | 280 | 33 |
| 80 | 310 | 195 | 160 | 135 | 22 | 8×ø18 | 436 | 320 | 44 |
| 100 | 350 | 230 | 190 | 160 | 24 | 8×ø23 | 480 | 360 | 60 |
| 125 | 400 | 270 | 220 | 188 | 28 | 8×ø25 | 558 | 400 | 89 |
| 150 | 480 | 300 | 250 | 218 | 30 | 8×ø25 | 611 | 400 | 130 |
| J41H PN63 Steel globe valve product shape and structure size (mm) | |||||||||
| DN | L | D | D1 | D2 | b | z×ød | H | D0 | weight/KG |
| 15 | 170 | 105 | 75 | 55 | 18 | 4×ø14 | 148 | 100 | 5 |
| 20 | 190 | 125 | 90 | 68 | 20 | 4×ø18 | 150 | 100 | 6 |
| 25 | 210 | 135 | 100 | 78 | 22 | 4×ø18 | 175 | 120 | 8 |
| 32 | 230 | 150 | 110 | 82 | 24 | 4×ø23 | 200 | 140 | 11 |
| 40 | 260 | 165 | 125 | 95 | 24 | 4×ø23 | 231 | 160 | 14 |
| 50 | 300 | 175 | 135 | 105 | 26 | 4×ø23 | 262 | 180 | 18 |
| 65 | 340 | 200 | 160 | 130 | 28 | 8×ø23 | 450 | 320 | 48 |
| 80 | 380 | 210 | 170 | 140 | 30 | 8×ø23 | 485 | 360 | 56 |
| 100 | 430 | 250 | 200 | 168 | 30 | 8×ø25 | 537 | 400 | 75 |
| 150 | 550 | 340 | 280 | 240 | 38 | 8×ø34 | 646 | 450 | 175 |
| J41H PN100 Steel globe valve product shape and structure size (mm) | |||||||||
| DN | L | D | D1 | D2 | b | z×ød | H | D0 | weight/KG |
| 10 | 170 | 100 | 70 | 50 | 20 | 4×ø14 | - | 100 | 5.7 |
| 15 | 170 | 105 | 75 | 55 | 20 | 4×ø14 | 195 | 120 | 10 |
| 20 | 190 | 125 | 90 | 68 | 22 | 4×ø18 | 228 | 120 | 13.5 |
| 25 | 210 | 135 | 100 | 78 | 24 | 4×ø18 | 250 | 160 | 14 |
| 32 | 230 | 150 | 110 | 82 | 24 | 4×ø23 | 326 | 200 | 14.3 |
| 40 | 260 | 165 | 125 | 95 | 26 | 4×ø23 | 359 | 240 | 29.5 |
| 50 | 300 | 195 | 145 | 112 | 28 | 4×ø25 | 414 | 280 | 48.5 |
| 65 | 340 | 220 | 170 | 138 | 32 | 8×ø25 | 434 | 320 | 65 |
| 80 | 380 | 230 | 180 | 148 | 34 | 8×ø25 | 547 | 400 | 92 |
| 100 | 430 | 265 | 210 | 172 | 38 | 8×ø30 | 621 | 450 | 107 |
| 125 | 500 | 310 | 250 | 210 | 42 | 8×ø34 | - | - | - |
| 150 | 550 | 350 | 290 | 250 | 46 | 12×ø34 | 840 | - | 310 |
| 200 | 650 | 430 | 360 | 312 | 54 | 12×ø41 | 925 | - | 590 |
| 250 | 775 | 500 | 430 | 382 | 60 | 12×ø41 | 1015 | - | 850 |
| 300 | 900 | 585 | 500 | 442 | 70 | 12×ø48 | 1200 | - | 1040 |
| J41H PN160 Steel globe valve product shape and structure size (mm) | |||||||||
| DN | L | D | D1 | D2 | b | z×ød | H | D0 | weight/KG |
| 15 | 170 | 110 | 75 | 52 | 24 | 4×ø18 | 148 | 156 | 4.64 |
| 20 | 190 | 130 | 90 | 62 | 26 | 4×ø23 | 156 | 161 | 7.42 |
| 25 | 210 | 140 | 100 | 72 | 28 | 4×ø23 | 175 | 187 | 10.1 |
| 32 | 230 | 165 | 115 | 85 | 30 | 4×ø25 | 200 | 214 | 12.3 |
| 40 | 260 | 175 | 125 | 92 | 32 | 4×ø27 | 231 | 252 | 15.2 |
| 50 | 300 | 215 | 165 | 132 | 36 | 8×ø25 | 262 | 291 | 29.7 |
Testing Conditions
The corner of the inventory
Installation
