Place of Origin: | China |
Brand Name: | SUFA |
Certification: | (DNV)ISO9001,(DNV)ISO14001,CE0035 |
Model Number: | J41H |
Minimum Order Quantity: | 1 set |
---|---|
Price: | USD 50~500/set |
Packaging Details: | Wooden box, ply-wood box, carton box, pallet |
Delivery Time: | within 8-12 working days upon receipt of payment |
Payment Terms: | T/T, Western Union, MoneyGram, L/C |
Supply Ability: | 500 set/month |
SIZE: | DN10-DN200 | PRSSURE: | PN1.6~16MPa |
---|---|---|---|
TEMPERATURE: | -29~570℃ | Material Of Body: | WCB |
Applicable Media :: | Water, Oil, Steam And Other Non-corrosive Media | Name: | DN40 Cryogenic Valve Stainless Steel Short Stem Cryogenic Globe Valve |
High Light: | threaded globe valve,stainless steel flanged globe valve |

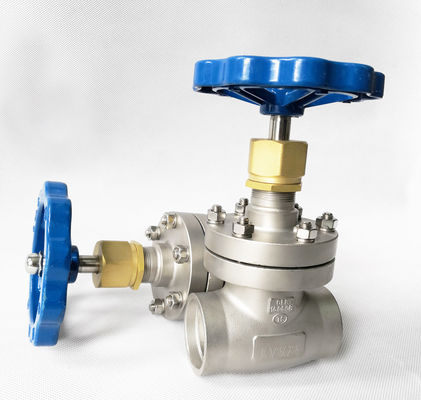

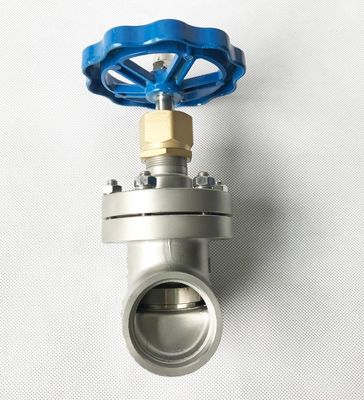

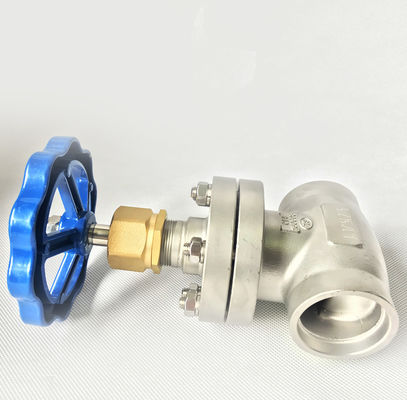

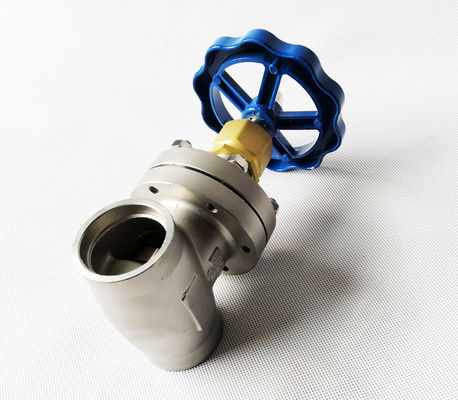

DN40 Cryogenic Valve Stainless Steel Short Stem Cryogenic Globe Valve
Cryogenic valves are widely used in cryogenic liquid storage and transportation, air separation, oil and gas, food and beverage carbonation, pharmaceuticals, petroleum, chemical,metallurgical,water treatment,aerospace and other industries,such as cryogenic liquid storage tank,tank truck,gasifier,gasification station,air dispersion equipment,air separation plants, petrochemical tail gas separation equipment,pressure swing adsorption oxygen generator,cold boxes,etc.
Product Description
Valve Type: | Globe Valve |
Operated Type: | Handwheel |
Connection Type: | Welding |
Nominal Diameter: | DN10~40mm |
Nominal Pressure: | PN4.0MPa |
Material: | Valve Body:ZGOCr18Ni9 |
Valve Bonnet:OCr18Ni9 | |
Valve Stem:OCr18Ni9 | |
Stuffing:PTFE | |
Disc seal ring:PCTFE | |
Suitable Medium: | LNG |
Suitable Temparature: | (-80℃~+80℃) |
Design and Manufacture: | Conform to GB/T24925-2010 |
Testing: | Conform to GB/T13927-2008 |
Valve Lifetime: | Specified according to usage frequency and installation location |
Lead Time: |
Customized valves are usually 45~60 days; Stock valves are usually within 5 days. |
Product Code | DN | H(on) | H(off) | L | L1 | D1 | D2 | D3 |
C325DJ10 | 10 | 134 | 124 | 61 | 61 | 12 | 15 | 22 |
C325DJ15 | 15 | 134 | 124 | 61 | 61 | 15 | 18.5 | 26 |
C325DJ20 | 20 | 176 | 163 | 81 | 81 | 23 | 26 | 32 |
C325DJ25 | 25 | 176 | 163 | 81 | 81 | 26 | 32 | 39 |
C325DJ32 | 32 | 232 | 217 | 102 | 102 | 35 | 39 | 46 |
C325DJ40 | 40 | 232 | 217 | 102 | 102 | 42 | 46 | 52 |
C325DJ50 | 50 | 230 | 209 | 127 | 127 | 54 | 58 | 66 |
C325DJ65 | 65 | 252 | 232 | 150 | 150 | 68 | 71 | 85 |
C325DJ80 | 80 | 310 | 281 | 182 | 182 | 84 | 89 | 100 |
C325DJ100 | 100 | 358 | 325 | 325 | 325 | 104 | 109 | 121 |
