Ansi Class 300 Control Bellow Seal Globe Valve SS 304 Cryogenic Globe Valve

Ansi Class 300 Control Drawing Price Harga Stainless Steel 316 API Rising Steam Globe Valve

Product use

Applicable to Class1500-29 ~ ~ 3500 lb, working temperature 570 ℃ under various working conditions such as petroleum, chemical industry, power plant piping cut off or connect medium.Applicable medium: water, oil, steam and other non-corrosive medium.

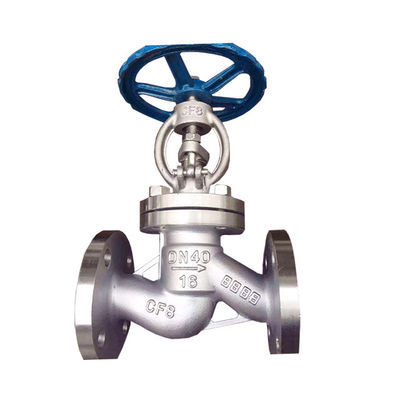

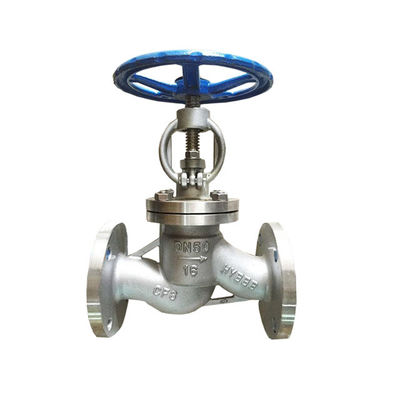

Stainless steel flange ends type globe valve

Flange Globe valves offer the ultimate in dependavle service for steam, air, gas, oil , oil vapor and high pressure in stallations. All have streight-though ports to assure minimum turbulence, erosion, and resistance to flow. They are available in a wide variety of trims.

1 . Body: Body is cast with heavy sections reinforced at points subjected to the greates stress.

2 . Disc: Disc is plug type.

3 . Stem: The Tee-head disc-stem connection prevents lateral strain on the stem for smooth, easy operation.

4 . Bonnet Gasket: Bonnet gasket provides a positive seal against leakage. PN16 to PN40 valves have a male/Female bonnet joint. A ring type gasket is employed in PN63 to PN100

5 . Operator: Handwheel, Gear Box, Pneumatic, Electric Acutator

Technical Specifications:

• Design & Manufacture standard: DIN3356
• Face to face dimension standard: DIN3202
• Flange standard: DIN2543 to DIN2546
• Test & Inspect: DIN3230
