|Place of Origin:||China|
|Minimum Order Quantity:||1 set|
|Packaging Details:||Wooden box, ply-wood box, carton box, pallet|
|Delivery Time:||within 8-12 working days upon receipt of payment|
|Payment Terms:||T/T, Western Union, MoneyGram, L/C|
|Supply Ability:||500 set/month|
|TEMPERATURE:||-29～570℃||Material Of Body:||WCB|
|Applicable Media ::||Water, Oil, Steam And Other Non-corrosive Media||Name:||1 Inch DN25 GB Flange PN16 Durable Manual Wheel Operated SS304 Stainless Steel Water Steam Globe Valves|
ss globe valve,
threaded globe valve

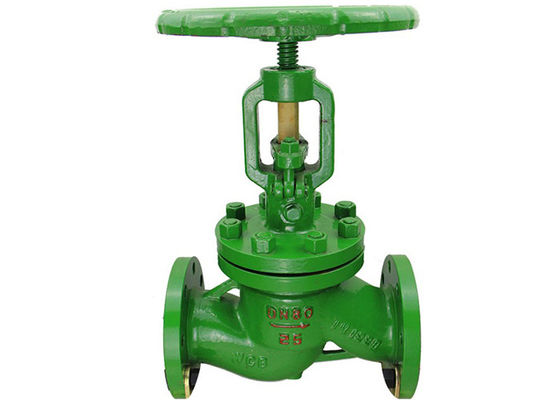

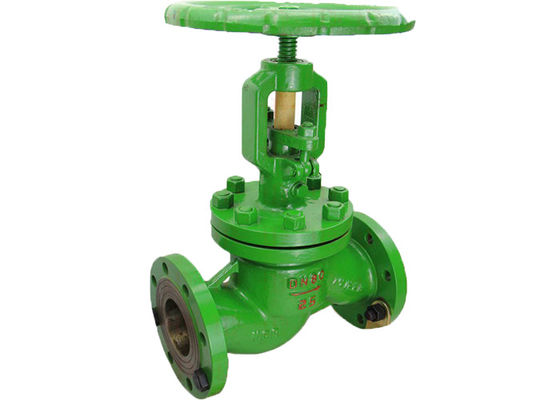

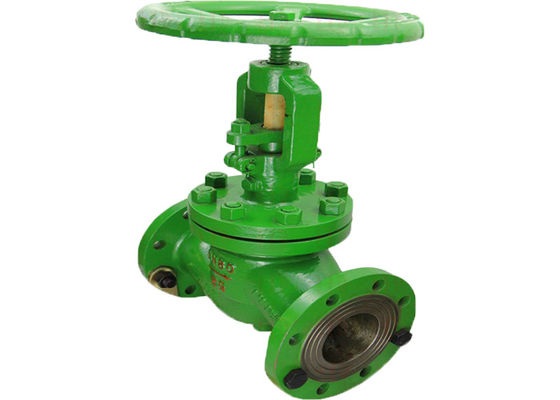

1 inch DN25 GB Flange PN16 Durable Manual Wheel Operated SS304 Stainless Steel Water Steam Globe Valves
Applicable to Class1500-29 ~ ~ 3500 lb, working temperature 570 ℃ under various working conditions such as petroleum, chemical industry, power plant piping cut off or connect medium.Applicable medium: water, oil, steam and other non-corrosive medium.
Flange Globe valves offer the ultimate in dependavle service for steam, air, gas, oil , oil vapor and high pressure in stallations. All have streight-though ports to assure minimum turbulence, erosion, and resistance to flow. They are available in a wide variety of trims.
1 . Body: Body is cast with heavy sections reinforced at points subjected to the greates stress.
2 . Disc: Disc is plug type.
3 . Stem: The Tee-head disc-stem connection prevents lateral strain on the stem for smooth, easy operation.
4 . Bonnet Gasket: Bonnet gasket provides a positive seal against leakage. PN16 to PN40 valves have a male/Female bonnet joint. A ring type gasket is employed in PN63 to PN100
5 . Operator: Handwheel, Gear Box, Pneumatic, Electric Acutator
|Material of main Parts||Body||Stainess Steel 304/304L/316/316L|
|Disc||Stainless Steel 304/304L/316/316L|
|Seat||HF or STL|
|Backseat Bushing||Stainless Steel|
|Bolt /Nut||Stainless Steel|
|Operation||Handwheel, Chain wheel, Gear Box, Pneumatic, Motor,Hydraulic|
|Working Temperature||-196 to 425 Celsius degree|
|Working Medium||Water, Oil, Gas, H2SO, Steam|
