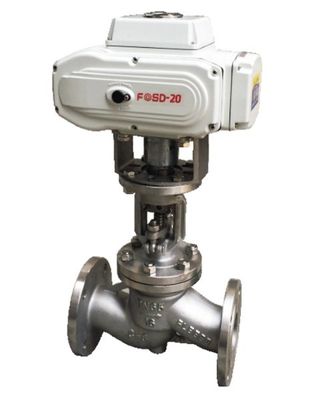

380V Electrically Operated Control Valve 316 Stainless Steel Globe Valve

Product Details:

Place of Origin:	China
Brand Name:	SUFA
Certification:	(DNV)ISO9001,(DNV)ISO14001,CE0035
Model Number:	J41H

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD 50~500/set
Packaging Details:	Wooden box, ply-wood box, carton box, pallet
Delivery Time:	within 8-12 working days upon receipt of payment
Payment Terms:	T/T, Western Union, MoneyGram, L/C
Supply Ability:	500 set/month

Contact Now

Detailed Product Description

SIZE:	DN10-DN200	PRSSURE:	PN1.6～16MPa
TEMPERATURE:	-29～570℃	Material Of Body:	WCB
Applicable Media ::	Water, Oil, Steam And Other Non-corrosive Media	Name:	380V Electric Motorized Control Stainless Steel SS316 Globe Valve
Highlight:	electrically operated control valve , electrically operated water valve

380V electric motorized control stainless steel SS316 globe valve

Multi turn valve actuator is a micro valve actuator that elaborately designed and manufactured by the most advanced technology, it mainly assemble with gate valve. Electric flange hard seal cut-off valve is widely used in water supply, building, petroleum, chemistry, food, pharmaceuticals, light textile, electrical, shipping industry, metallurgy, energy systems. It is easy operation, good sealing, long service life, and simple installation.

Parts and materials

NO.	Part Names	Material
1	Valve body	WCB, 1Cr18Ni9Ti
2	Spacer	Expanded graphite+stainless steel, PTFE
3	Bolt	Stainless steel 304
4	Disc sealing	WCB, 304, 1Cr18Ni9Ti+PTFE
5	Splint collar	1Cr18Ni9Ti
6	Disc cover	1Cr18Ni9Ti
7	Valve stem	1Cr18Ni9Ti, 2Cr13
8	Nut	35, 304
9	Eye bolt	35, 304
10	Gland	WCB, 1Cr18Ni9Ti
11	Bolt	35, 304
12	Soacer	35, 1Cr18Ni9Ti
13	Packing	Expanded graphite
14	Packing plate	WCB, 1Cr18Ni9Ti
15	Nut	35, 304
16	Yoke	WCB, 1Cr18Ni9Ti
17	Bolt	35, 1Cr18Ni9Ti
18	Bolt	35, 1Cr18Ni9Ti
19	Coupling	35, 1Cr18Ni9Ti
20	Actuator	FOSD

Technical Parameters:

Nominal diameter DN(mm)	DN15-DN100
End connection	Double Union, Flange
Valve body material	UPVC(-10°C-+70°C),CPVC(-40°C-+95°C) RPP(-14°C-+100°C),PVDF(-40°C-+140°C)
Spool material	UPVC(-10°C-+70°C),CPVC(-40°C-+95°C) RPP(-14°C-+100°C),PVDF(-40°C-+140°C)
Applicable medium	PVC chemical solvent compatible food industry

Specification of Electric Actuator

Items Parameter	FOSD-05	FOSD-10	FOSD-16	FOSD-30	FOSD-60	FOSD-125	FOSD-250	FOSD-400
Output torque	50Nm	100Nm	160Nm	300Nm	600Nm	1250Nm	2500Nm	4000Nm
Rated travel time	20S	15S/30S			30S/60S	100S	100S	100S
Rotation angle	0°-90°	0°-90°	0°-90°	0°-90°	0°-90°	0°-90°	0°-90°	0°-90°
Working current	0.25A	0.48A	0.68A	0.8A	1.2A	2A	2A	2.7A
Starting power	0.25A	0.48A	0.72A	0.86A	1.38A	2.3A	2.3A	3A
Motor power	10W/F	25W/F	30W/F	40W/F	90W/F	100W/F	120W/F	140W/F
Weight	3kg	5kg	5.5kg	8kg	8.5kg	15kg	15.5kg	16kg
Power	AC220V, AC24V, AC110V , AC220 , AC380, DC24V (choose options)
Input signal	4-20mA (Modulating type)
Output signal	4-20mA (Modulating type)
Inbreaking protection	IP65/IP67
Installation angle	360° any angle
Electrical Interperation	one G1/2 CNCO,one Power cord connection port,one signal wire connection port
Ambient humidity	-30°C to +60°C
Pilot circuit option	A:with limit position switch style (standard) B: with neutral position switch style ( passive contact) C:with potentiometer style D: both potentiometer and neutral position switch style E: with control module style ( Modulating Applications) F: DC motor control circuit style G:Three-phase current 380V control circuits style H:Three-phase current 380V, both neutral position switch and potentiometer style
