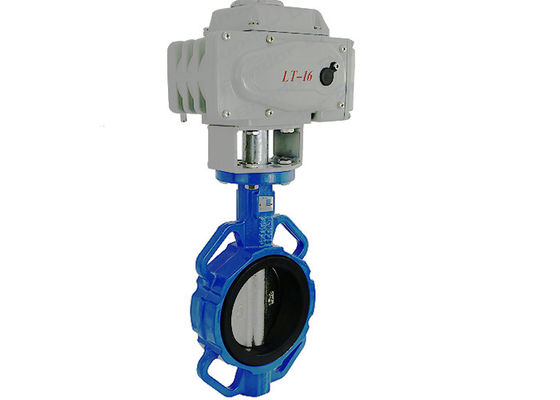

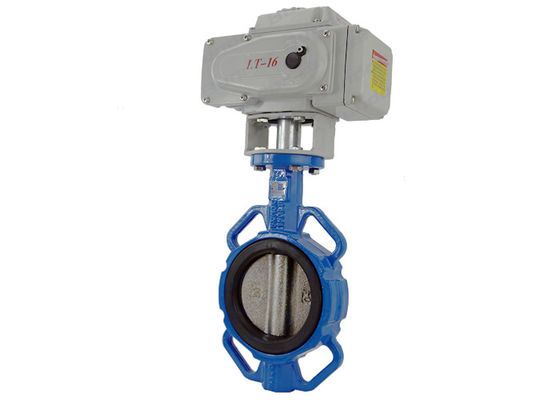

Water Sewage Electric Motor Operated Valve Half Shaft Wafer Type

Water Sewage Electric Motor Operated Valve Half Shaft Wafer Type

  • Water Sewage Electric Motor Operated Valve Half Shaft Wafer Type
  • Water Sewage Electric Motor Operated Valve Half Shaft Wafer Type
Water Sewage Electric Motor Operated Valve Half Shaft Wafer Type
Product Details:
Place of Origin: China
Brand Name: ephood
Certification: (DNV)ISO9001,(DNV)ISO14001,CE0035
Model Number: D371X
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 50~500/set
Packaging Details: Wooden box, ply-wood box, carton box, pallet
Delivery Time: within 8-12 working days upon receipt of payment
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 500 sets/month
Contact Now
Detailed Product Description
Size: DN50~DN 300 Nominal Pressure: PN10/16, 150-300LB
Valve Body Material: Valve Body Material] : Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel, Etc Suitable Media: Chemicals, Air, Water, Steam, Oil, Acids, Salts Ect
Name: Butterfly Valve With Half Shaft Working Temperature: -30。c - 135。C
High Light:

electrically operated control valve

,

electric actuated ball valve

Type: wafer
Face to face: API609,BS5155,DIN3202,ISO5752
Flange: DIN,BS,UMI,ISO,ANSI,AS,JIS
Mounting Flange: ISO5211
Working Pressure: PN16(200PSI)

Application:
HVAC,Water Supply&Sewage,
Food&Beverage,Chemical/petrochemical/processing,
Power And Utilities,Paer And pulpmship building

Standards:

Design standard API609, ANSI16.34, JISB2064, GB T12238
Face to Face API609, DIN3202, ISO5752, BS5155
Flange drilling DIN2501 PN10/16, ANSI 125/150/300, BS4504, JIS10K
Top Flange ISO5211
Test Inspection API598












Material:

Body Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel
Disc Ductile Iron, Carbon Steel, Stainless Steel
Stem Stainless Steel
Seat EPDM, NBR, PTFE, VITON, HYPALON
O ring EPDM, NBR






Water Sewage Electric Motor Operated Valve Half Shaft Wafer Type 0

Water Sewage Electric Motor Operated Valve Half Shaft Wafer Type 1

Water Sewage Electric Motor Operated Valve Half Shaft Wafer Type 2

Water Sewage Electric Motor Operated Valve Half Shaft Wafer Type 3
