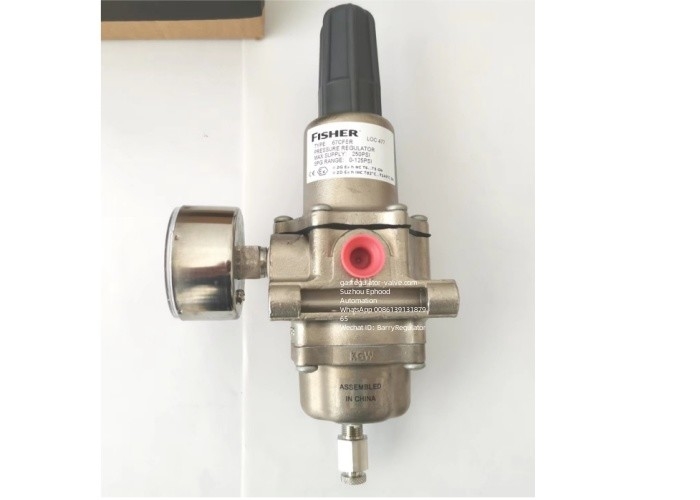

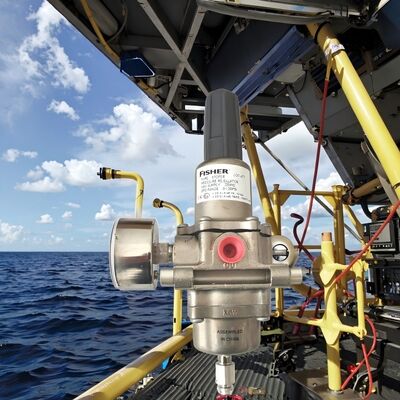

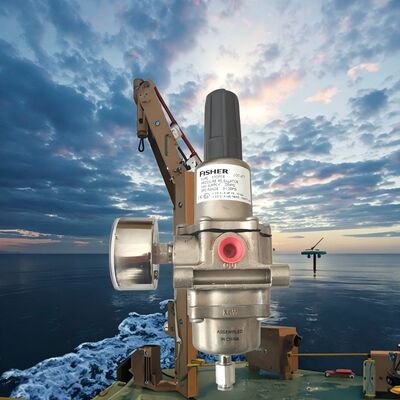

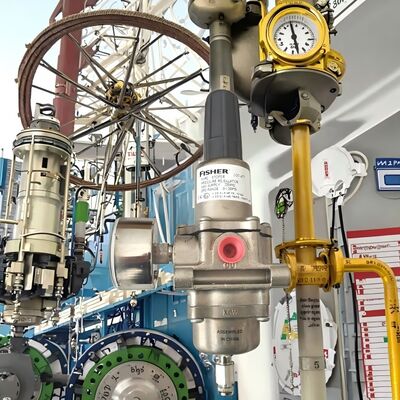

Fisher Gas Regulator with Stainless Steel Body and 250psi Inlet Pressure for Offshore Applications

Large Image : Fisher Gas Regulator with Stainless Steel Body and 250psi Inlet Pressure for Offshore Applications

Product Details:

Place of Origin:	Assembled In China
Brand Name:	Fisher
Model Number:	67CFSR

Payment & Shipping Terms:

Minimum Order Quantity:	10sets
Price:	USD 550-600 Each Piece
Packaging Details:	1set packed in one carton ,each carton size is 23139cm,1.2kg each one set.
Delivery Time:	3-8 work-days
Payment Terms:	T/T,Western Union,MoneyGram
Supply Ability:	500sets Every Month

Contact Now

Fisher Gas Regulator with Stainless Steel Body and 250psi Inlet Pressure for Offshore Applications

Description

Name:	67CFSR Stainless Steel Body Material Fisher Instrument Supply Filter Regulator	End Connetion:	1/4" NPT
Inlet Pressure:	250psi	Spring Range:	0-60psi，0-125psi
Pressure Gauge:	With Gauge
Highlight:	Offshore Applications Fisher Gas Regulator , 67CFSR Fisher Gas Regulator

67CFSR Instrument Supply Fisher Gas Regulator

CF8M Stainless Steel Body Material Beneficial For Offshore Applications

Product Overview

The Fisher 67CFSR Stainless Steel Filter Regulator is specifically designed for demanding offshore applications, providing reliable filtration and pressure regulation in harsh environments.

Filter Capabilities

Free Area: 12 times pipe area

Micron Ratings

Polyethylene Filter (Standard): 5 microns
Glass Fiber Filter (Optional): 5 microns
PVDF or Stainless Steel Filter (Optional): 40 microns

Drain Valve and Spring Case Vent Location: Aligned with inlet standard, other positions optional

Technical Specifications

End Connection	1/4" NPT
Maximum Inlet Pressure	250 psig / 17.2 bar
Spring Range	0-125 psi / 0-8.6 bar
Pressure Registration	Internal
Smart Bleed Check Valve Set point	6 psi / 0.41 bar differential
Body Material	Stainless Steel
Application	Filter, Air Supply, Reducing pressure

Additional Specifications

Body Size and End Connection Style: 1/4" NPT

Maximum Inlet Pressure (Body Rating): 250 psig / 17.2 bar

Outlet Pressure: 0-60 psi

Pressure Registration: Internal

Temperature Capabilities

With Nitrile (NBR):

Standard Bolting: -20 to 180°F / -29 to 82°C
With Gauges: -40 to 180°F / -40 to 82°C

Product Images
