Fisher 289HH Gas Regulator with 6.9Bar Max Inlet Pressure 45-75psi Spring Range and Nitrile Diaphragm

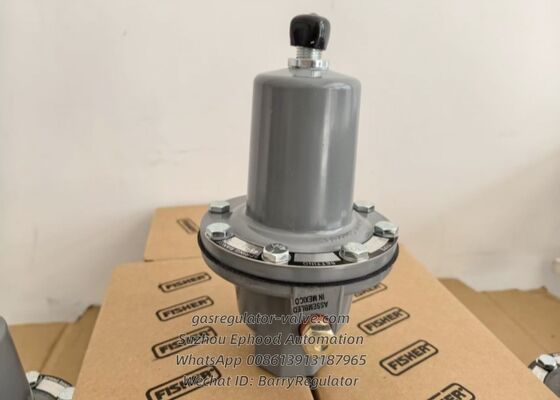

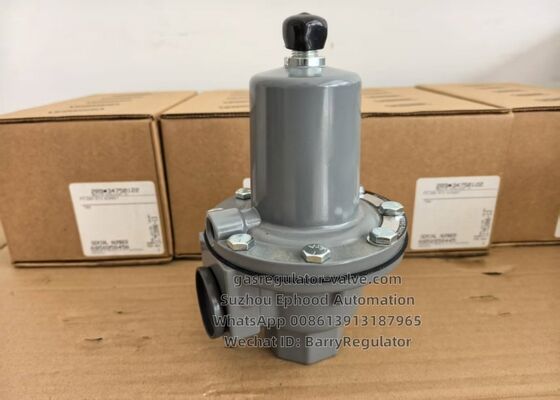

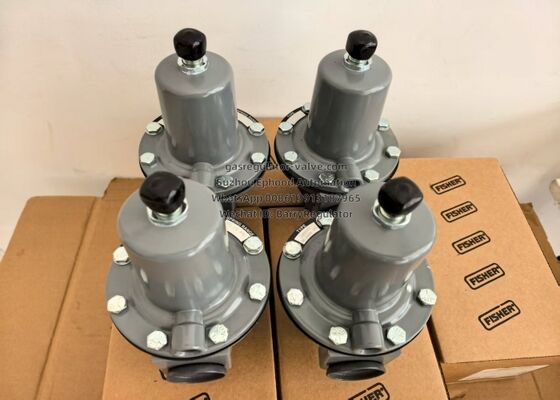

Large Image : Fisher 289HH Gas Regulator with 6.9Bar Max Inlet Pressure 45-75psi Spring Range and Nitrile Diaphragm

Product Details:

Place of Origin:	Made In Mexico
Brand Name:	Fisher
Model Number:	289HH

Payment & Shipping Terms:

Minimum Order Quantity:	10sets
Price:	Negotiation
Packaging Details:	1set packed in one carton ,each carton size is 221818cm,2.2kg each one.
Delivery Time:	3-8 work-days
Payment Terms:	T/T,Western Union,MoneyGram
Supply Ability:	300sets Every Month

Contact Now

Fisher 289HH Gas Regulator with 6.9Bar Max Inlet Pressure 45-75psi Spring Range and Nitrile Diaphragm

Description

Name:	289HH Model Pressure Reducing Regulator	End Connetion:	1" NPT
Max Inlet Pressure:	6.9Bar	Spring Range:	45-75psi
Body Material:	Aluminum	Diaphragm:	Nitrile (NBR)
Highlight:	6.9Bar Max Inlet Pressure Fisher Gas Regulator , 45-75psi Spring Range Pressure Reducing Regulator , Nitrile Diaphragm Relief Valve

Fisher Brand 289HH Model Pressure Gas Regulator Relief Valve

The 289 Series relief valve is a throttling relief valve used downstream of pressure regulators to protect the downstream system from overpressure. A smooth throttling action minimizes pressure surges in the system during emergency operation.

Key Features

Available in 1/4, 3/4, 1, or 2 NPT sizes
Spring ranges (relief pressure settings) from 5-inches w.c. to 75 psig / 12 mbar to 5.2 bar
O-ring seats with Nitrile (NBR) or Neoprene (CR) seating surfaces for tight shutoff
Ideal for low-pressure settings due to increased sensitivity from large diaphragm area

Model Specifications

Type 289H: 1 or 2 NPT spring-loaded relief valve for relief pressure settings of 1 to 50 psig / 0.07 to 3.4 bar (four spring ranges in 1 NPT) and 7-inches w.c. to 10 psig / 17 mbar to 0.69 bar (four spring ranges in 2 NPT).

Type 289HH: 1 NPT spring-loaded relief valve for relief pressure settings of 45 to 75 psig / 3.1 to 5.2 bar.

Maximum Allowable Relief (Inlet) Pressure

Model	Body Size	Spring Range	Maximum Allowable Relief (Inlet) Pressure
289HH	1" NPT	45-75 PSI	100 PSI / 6.9 bar

Standard Construction Materials

Valve Body and Spring Case:

Types 289A and 289U: Zinc
Types 289H (1 NPT), 289HH, and 289L: Aluminum
Type 289H (2 NPT): Cast iron body with Aluminum spring case

Diaphragm:

Type 289A: Neoprene (CR)
Types 289H and 289HH: Nitrile (NBR) or Fluorocarbon (FKM)
Types 289L and 289U: Nitrile (NBR)

Tag:

Contact Person: Mr. Barry Wang

Tel: +86-1391-318-7965

Fax: 86-512-66079692
