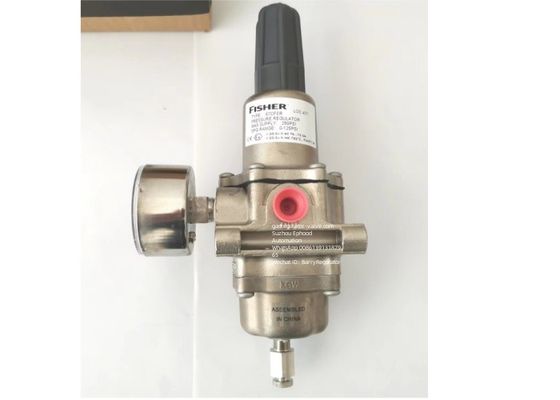

67CFSR Instrument Supply Fisher Gas Regulator CF8M Stainless Steel Body Material Beneficial For Offshore Applications

67CFSR Stainless Steel Body Material Fisher Instrument Supply Filter Regulator

Fisher 67CFSR : filter regulators beneficial for offshore applications

Types 67CFR-Filter Capabilities

Free Area: 12 times pipe area

Micron Rating: Polyethylene Filter (Standard): 5 microns Glass Fiber Filter (Optional): 5 microns PVDF or Stainless Steel Filter

(Optional): 40 microns

Drain Valve and Spring Case Vent Location

Aligned with inlet standard, other positions optional

Available Configurations

Body Size and End Connection Style
1/4" NPT

Maximum Inlet Pressure (Body Rating)
250 psig / 17.2 bar
Outlet Pressure
0-60 psi

Pressure Registration
Internal

Temperature Capabilities
With Nitrile (NBR):
Standard Bolting: -20 to 180°F / -29 to 82°C
With Gauges: -40 to 180°F / -40 to 82°C
