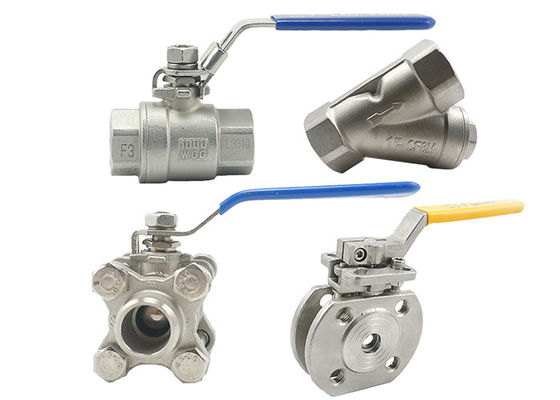

Cf8 4 Inch Stainless Steel Ball Valve 316 Ss Ball Valve Fire Resistance

Cf8 4 Inch Stainless Steel Ball Valve 316 Ss Ball Valve Fire Resistance

  • Cf8 4 Inch Stainless Steel Ball Valve 316 Ss Ball Valve Fire Resistance
  • Cf8 4 Inch Stainless Steel Ball Valve 316 Ss Ball Valve Fire Resistance
Cf8 4 Inch Stainless Steel Ball Valve 316 Ss Ball Valve Fire Resistance
Product Details:
Place of Origin: China
Brand Name: SUFA
Certification: (DNV)ISO9001,(DNV)ISO14001,CE0035
Model Number: Q41F
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD20~500 /PC
Packaging Details: Wooden box, ply-wood box, carton box, pallet
Delivery Time: within 8-12 working days upon receipt of payment
Payment Terms: T/T, Western Union, MoneyGram, L/C, D/P
Supply Ability: 500PCS per month
Contact Now
Detailed Product Description
Size: 1"-6"x 4" Pressure: 150LB
Connection Type: Thread Body/Bonnet: WCB,LCC,LCB,CF8,CF8M,CF3M
Ball/Stem: 316,316L,304 Name: 3 Piece Stainless Steel Ball Valve 4 Inch Cf8 Ball Valve
High Light:

316 ss ball valve

,

trunnion mounted ball valve

,

Fire Resistance Ss Ball Valve

Fully stocked factory supply 3 piece stainless steel ball valve 4 inch cf8 ball valve



SUFA 3-piece flanged end ball valve,is available in size 1''-2'' class 150 and 300.The TA Series valve offers versatility,performance and reliability at a reasonable cost.This versatile valve offers various seat options to suit specific service requirments. It utilizes a raised fire-lip design that performs two critical functions.Firstly it acts as a metal backup seat,meeting API 607 through leakage requiremrnts.Secondly,it protects the ID of the primary seat from abrasion and seat cold flow.

The series TA valve feature comply with API 607,API 6D and Nace MR-01-075 requirements.



Main parts material
Part name Material
Body/Bonnet WCB,LCC,LCB,CF8,CF8M,CF3M
Ball/Stem 316,316L,304
Seat PTFE/PEEK



TA Series Flanged End Floating Ball Valve General Design Features

1. Adjustable fire-safe stem packing
2. Machined fire-lip act as meta backup seat has excellent fire-safe capability
3. Anti-blow out stem
4. Anti-static device
5. Full rated bi-directional shut-off
6. Optional lockable handle
7. Spiral wound gasket,prevent external leakage
8. Full rated dead end service





Material SUS201, SUS304,SUS316, SUS 304L , SUS 316L(CF8, CF8M),etc.
Size 1/4" -4" (DN6-DN100)
pressure 1000psi
Temperature range -20-300 degree C
connection Butt weld
sealing PTFE,RPTFE,PPL ETC
Production process Investment casting, CNC lathe, Test, Cleaning, Packing, Storage
Certification CE, ISO, our factory has been inspected by SGS and TUV
Locking With or without
Capacity to produce 100,000.00pcs/week
Main products Includes ball valve, butterfly valve, check valve, gate valve, strainer, etc.
Application Suitable for fire piping system, air, steam, water,gas, oil , home decoration , equipment and so on
  Buyer's drawing or designs are available
Package Cartons without pallet
  Cartons with pallet
  Double woven bags
  Or as buyer's requirements
Delivery Details According to the quantities and specifications of each order
  Normal delivery times is from 30 to 45 days after receiving the deposit
