Place of Origin: | China |
Brand Name: | SUFA |
Certification: | (DNV)ISO9001,(DNV)ISO14001,CE0035 |
Model Number: | Q41F |
Minimum Order Quantity: | Negotiation |
---|---|
Price: | Negotiation |
Packaging Details: | Wooden box, ply-wood box, carton box, pallet |
Delivery Time: | within 8-12 working days upon receipt of payment |
Payment Terms: | T/T, Western Union, MoneyGram, L/C, D/P |
Supply Ability: | 500PCS per month |
Size: | DN15-200 | Pressure: | 150LB |
---|---|---|---|
Connection Type: | Thread | Body/Bonnet: | WCB,LCC,LCB,CF8,CF8M,CF3M |

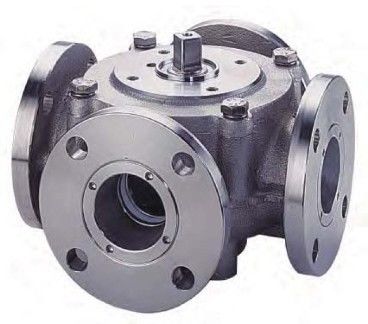

Ball/Stem: | 316,316L,304 | Name: | 2062 Type DN65 (2-1/2") CF8 Material Flanged End 5-Way Ball Valve In Ball Valves Long- Service Life Competiti |
High Light: | 316 ss ball valve,trunnion mounted ball valve,flanged end 5 way ball valve |
Design Features
1. Adjustable fire-safe stem packing
2. Machined fire-lip act as meta backup seat has excellent fire-safe capability
3. Anti-blow out stem
4. Anti-static device
5. Full rated bi-directional shut-off
6. Optional lockable handle
7. Spiral wound gasket,prevent external leakage
8. Full rated dead end service
Main Parameter Specifications
-L port or T port , 1/2" (DN15) 3 way ball valve ,1000wog ball valve
-Working Pressure : 1000psi (PN64)
-Working Temperature: -20°C~200°C(-4ºF~392ºF)
-Investment casting
-Blow-out proof stem
-Locking device
-Anti-static device (option)
-ISO 5211 mounting pad
-Thread type: ASME B1.20.1(NPT) DIN2999 & BS21 ISO7/1 & EN10226
Main parts and materials
No. | Part Name | Material |
1 | Body | Cast Iron (GG25/GGG-4) |
2 | Bonnet | Cast Iron ( GG25/GGG-4 ) |
3 | Nut | Carbon steel |
4 | Bolting | Carbon steel |
5 | Ball | Stainless steel(SS304/SS316) |
6 | Seat | PTFE/RPTFE/TFM1600 |
7 | Gasket | PTFE |
8 | Stem | Stainless steel(SS304/SS316) |
9 | Stem packing | PTFE |
10 | Gland flange | Cast Iron (FC200) |
11 | Stop collar | Carbon steel |
12 | Circlip | Steel |
13 | Lever | Ductile iron (FCD450) |
14 | Gland boltl | Carbon steel |
