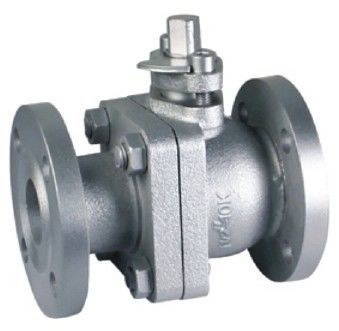

Adjustable Cast Iron Flanged Ball Valve 2pc Ball Valve Optional Lockable Handle

Adjustable Cast Iron Flanged Ball Valve 2pc Ball Valve Optional Lockable Handle

  • Adjustable Cast Iron Flanged Ball Valve 2pc Ball Valve Optional Lockable Handle
Adjustable Cast Iron Flanged Ball Valve 2pc Ball Valve Optional Lockable Handle
Product Details:
Place of Origin: China
Brand Name: SUFA
Certification: (DNV)ISO9001,(DNV)ISO14001,CE0035
Model Number: Q41F
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD20~500 /PC
Packaging Details: Wooden box, ply-wood box, carton box, pallet
Delivery Time: within 8-12 working days upon receipt of payment
Payment Terms: T/T, Western Union, MoneyGram, L/C, D/P
Supply Ability: 500PCS per month
Contact Now
Detailed Product Description
Size: 1"-6"x 4" Pressure: 150LB
Connection Type: Thread Body/Bonnet: WCB,LCC,LCB,CF8,CF8M,CF3M
Ball/Stem: 316,316L,304 Name: DN15 10K JIS Standard Cast Iron Flanged End Soft Seal 2 Pc Ball Valve
High Light:

316 ss ball valve

,

trunnion mounted ball valve

DN15 10K JIS Standard Cast Iron Flanged End Soft Seal 2 pc Ball Valve



Design Features

1. Adjustable fire-safe stem packing
2. Machined fire-lip act as meta backup seat has excellent fire-safe capability
3. Anti-blow out stem
4. Anti-static device
5. Full rated bi-directional shut-off
6. Optional lockable handle
7. Spiral wound gasket,prevent external leakage
8. Full rated dead end service



Main Parameter Specifications

1. Design and Manufacture: JIS B2031

2. Face to Face : JIS B2002

DN15-DN100(6)

DN125-DN200(39)

3. End Flange Dimensions : JIS B2212

4. Nominal Pressure : 10K

5. Pressure test : JIS B2003



Main parts and materials

No. Part Name Material
1 Body Cast Iron (FC200/FCD-S)
2 Bonnet Cast Iron ( FC200/FCD-S )
3 Nut Carbon steel
4 Bolting Carbon steel
5 Ball Stainless steel(SS304/SS316)
6 Seat PTFE/RPTFE/TFM1600
7 Gasket PTFE
8 Stem Stainless steel(SS304/SS316)
9 Stem packing PTFE
10 Gland flange Cast Iron (FC200)
11 Stop collar Carbon steel
12 Circlip Steel
13 Lever Ductile iron (FCD450)
14 Gland boltl Carbon steel


Adjustable Cast Iron Flanged Ball Valve 2pc Ball Valve Optional Lockable Handle 0

Adjustable Cast Iron Flanged Ball Valve 2pc Ball Valve Optional Lockable Handle 1
